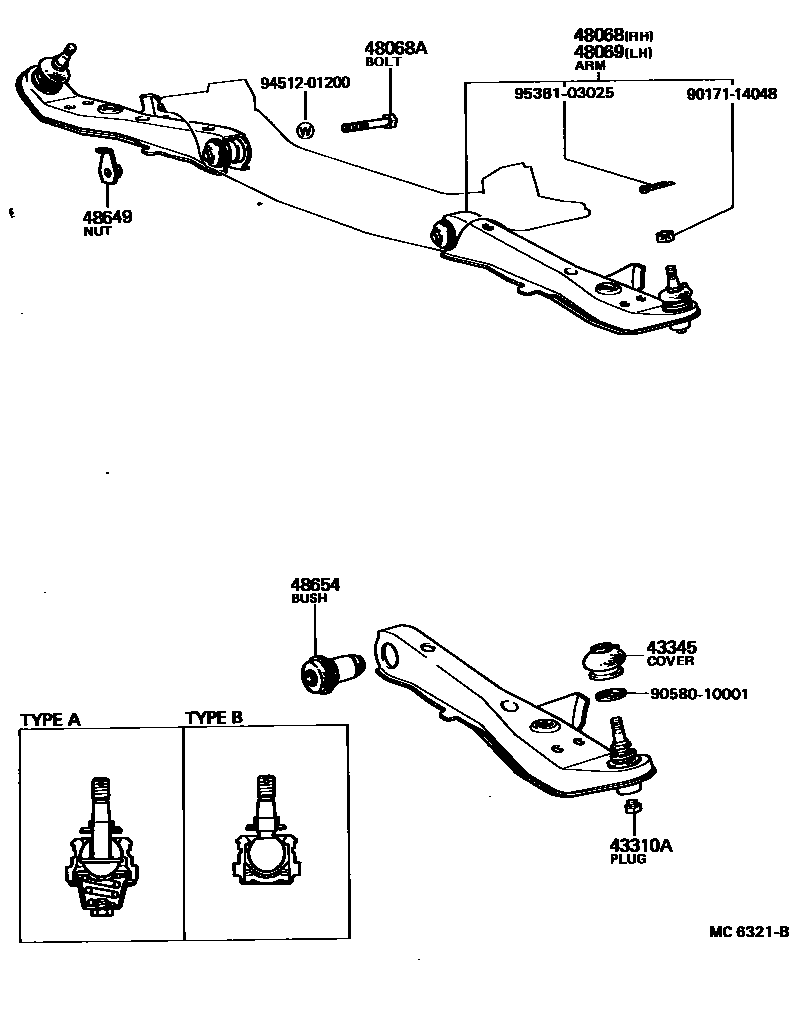

Toyota COROLLA — FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iCE70,TE7#¥110197908-198707

TYPE A

43345COVER, LOWER BALL JOINT DUST

main43345-12060iKE70,TE71..SAA¥630197908-198309

TYPE B

main43345-14020iKE70..2D..ARL¥640197908-198707

TYPE A

sub43345-14010¥620

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19065iKE70..SED..SAA¥19,600197908-198309

TYPE B

sub48068-19125¥19,600

main48068-19075iCE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)¥19,500197908-198707

TYPE A

main48068-19085iKE70,TE71..(LB,WG)..SAA¥19,600197908-198308

TYPE B

sub48068-19075¥19,500

main48068-19125iKE70..WG..5F..GEN¥19,600198108-198707

TYPE A

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12291iAE71,CE70,KE70,TE7#¥460197908-198611

main90119-12083iAE71,CE70,KE70¥400198611-198707

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19055iKE70..CP,LB,SED;KE70..(DV,WG)..(ARL,EUR)¥19,600197908-198309

TYPE B

sub48069-19105¥19,600

main48069-19065iCE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)¥19,600197908-198707

TYPE A

main48069-19075iKE70,TE71..(LB,WG)..SAA¥19,600197908-198308

TYPE B

sub48069-19065¥19,600

main48069-19105iKE70..EUR¥19,600198108-198707

TYPE A

48649NUT, LOWER ARM SHAFT

main48649-12040iAE71,CE70,KE70,TE7#¥860197908-198707

48654BUSH, LOWER ARM

main48654-12010iAE71,CE70,KE70,TE7#¥1,470197908-198707

9017114048

main90171-14048¥440

9058010001

main90580-10001¥100

9451201200

main94512-01200¥100

9538103025

main95381-03025¥130

11 parts on this diagram · 1 diagram in section
