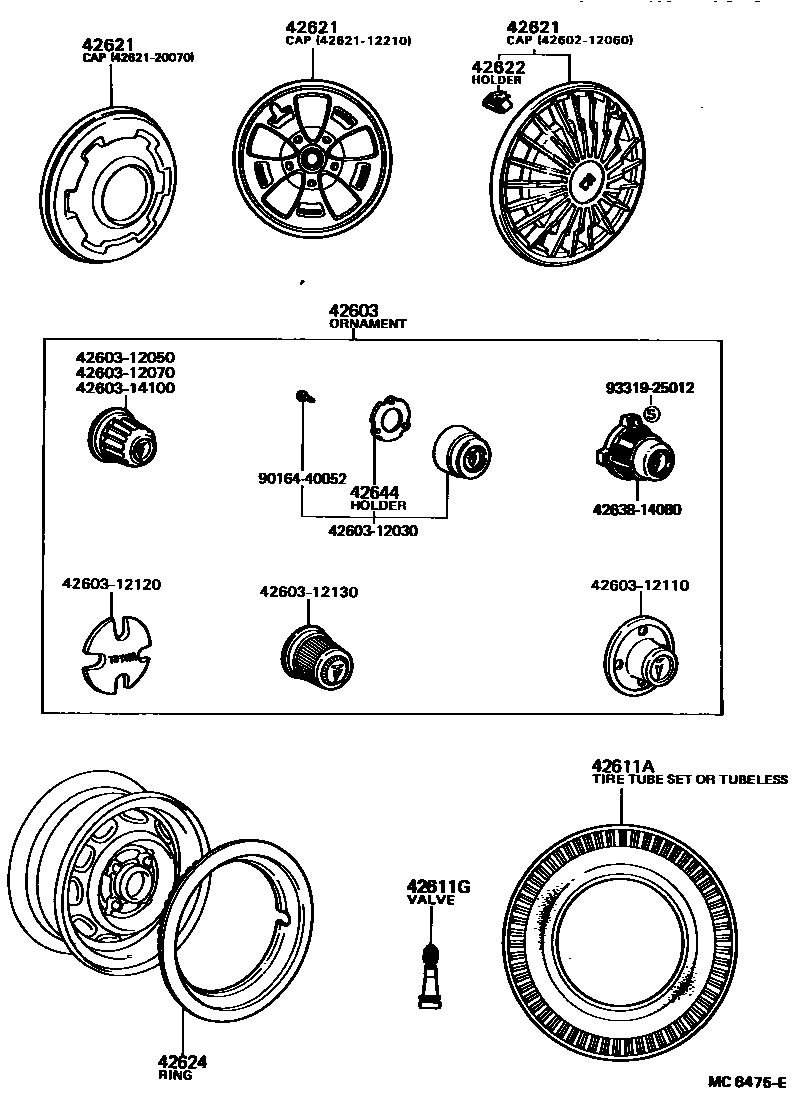

Toyota COROLLA — DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12030iTE71..GT,SE,SR,XE¥2,820197908-198305

5J-13 DISC WHEEL

main42603-12050iCE70,KE70..(DV,WG)..STD..EUG¥2,360197908-198707

MAROON

sub42603-12070¥2,530

main42603-12070iKE70..(LB,SED)..(DX,STD)..(GEN,SAA)¥2,530197908-198707

MAROON

main42603-12110iKE70..GL;KE70..SDN,SDZ¥5,100198108-198406

main42603-12120iTE71..GT,SR,XE¥7,500198108-198401

ALUMI WHEEL

main42603-12130iKE70,TE71..DX..SA¥2,920198108-198502

sub42603-27030¥3,200

main42603-14100iKE70,TE71..SED..(EUR,GEN)¥2,890197908-198305

BLACK

main42638-14080iAE71,KE70..GL..ARL¥3,270197908-198502

ALUMI WHEEL

main42638-14080iTE71..XE..GEN¥3,270198008-198108

ALUMI WHEEL,*NZ

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-10060iKE70198508-198707

155SR13,W/T

main42605-12030iTE7#198007-198305

175/70HR13,W/T

main42605-12040iKE70197908-198508

155SR13,W/T

sub42605-10060

main42605-12050iKE70197908-198406

6.15-13-4,W/T,*(Y)

main42605-14012iTE72197908-198108

165SR13,W/T

main42605-16030iTE71197908-198406

6.15-13-4,W/T,*(B),*(D),*(T)

main42605-22110iTE72197908-198404

185/70HR13,W/T

main42652-12100iKE70197908-198406

6.15-13-4,T/L,*(Y)

main42652-12170iTE72..ARL198003-198007

185/70HR13,T/L

main42652-12220iAE71,KE70197908-198707

155SR13,T/L

main42652-12390iTE72198007-198305

185/70SR13

main42652-12490iAE71,KE70198108-198406

155SR13,T/L

main42652-12500iTE72198108-198305

165SR13,T/L

main42652-12680iAE71,KE70198508-198707

155SR13

main42652-13010iAE71,KE70197908-198707

6.15-13-6,T/L

main42652-14140iCE70,TE7#197908-198707

165SR13,T/L,*(B),*(D),*(T)

main42652-14170iTE71197908-198305

185/70HR13,T/L,*(D)

main42652-14180iTE71;TE72..4FC,5F197908-198305

185/70HR13,T/L,*(B),*(T),*(Y)

main42652-14290iCE70198101-198707

165SR13,T/L,*(Y)

main42652-16030iKE70197908-198406

6.15-13-4,T/L,*(B),*(D),*(T)

main98021-61133iAE71,KE70197908-198707

6.15-13-6,W/T

main98938-65130iAE71,TE7#197908-198707

165SR13,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iKE70..SAA¥390197908-198707

42621CAP, WHEEL

main42602-12060iAE71..SA¥16,900198203-198707

main42621-12210iKE70..LB..LHD..5F..GEN¥5,100197908-198707

main42621-20070iKE70,TE71..2D..SA¥2,970198211-198707

42622HOLDER, WHEEL CAP

main42622-14010iKE70,TE71..GL..GEN¥810198203-198305

42624RING, WHEEL CAP

main42624-12011iTE7#..GL,SE,SR,XE¥9,800197908-198104

sub42624-12012¥9,800

main42624-12012iTE7#..GL,SE,SR,XE¥9,800198104-198204

main42624-14023iTE71..GT,SE,SR,XE¥11,700197908-198104

5J-13 DISC WHEEL

sub42624-14024¥11,700

main42624-14024iTE72..ARL¥11,700198104-198112

5J-13 DISC WHEEL

sub42624-14025¥11,600

main42624-14025iTE72..(SE,XE)..(ARL,EUR)¥11,600198112-198305

5J-13 DISC WHEEL

main42624-14025iKE70,TE7#..(DX,GL)..SA¥11,600198204-198502

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14041iTE71..GT,SE,SR,XE¥640197908-198305

5J-13,WHEEL DISC

4260212060CAP SUB-ASSY, WHEEL

main42602-12060¥16,900

4260312030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12030¥2,820

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050¥2,360

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070¥2,530

4260312110ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12110¥5,100

4260312120ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12120¥7,500

4260312130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12130¥2,920

4260314100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14100¥2,890

4262112210CAP, WHEEL

main42621-12210¥5,100

4262120070CAP, WHEEL

main42621-20070¥2,970

4263814080

main42638-14080¥3,270

9016440052

main90164-40052¥120

9331925012

main93319-25012¥130

20 parts on this diagram · 2 diagrams in section
