Toyota COROLLA — CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iAE71,CE70,TE7#..MTM¥1,040198012-198707

sub04313-12030¥800

main04313-30100iTE7#..MTM¥1,030197908-198012

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12030iAE71..MTM¥6,300198305-198707

main31470-12080iCE70¥7,200198508-198707

main31470-14020iTE7#..MTM¥7,100197908-198008

sub31470-14021¥7,400

main31470-14040iCE70¥7,900198210-198508

main31470-20150iTE7#..MTM¥7,100198008-198012

sub31470-20151¥7,400

main31470-20151iTE7#..MTM¥7,400198012-198502

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iAE71,CE70,TE7#..MTM¥140197908-198707

*8-1.25PX25-25

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iTE7#..MTM197908-198008

main31473-20030iTE7#..MTM¥660198008-198012

main31473-20031iAE71,CE70,TE7#..MTM¥470198012-198707

main31473-22010iCE70¥720198508-198707

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE71,CE70,TE7#..MTM¥230198012-198707

main31476-30040iTE7#..MTM¥460197908-198012

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iAE71,CE70,TE7#..MTM¥180197908-198707

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAE71,CE70,TE7#..MTM¥160197908-198707

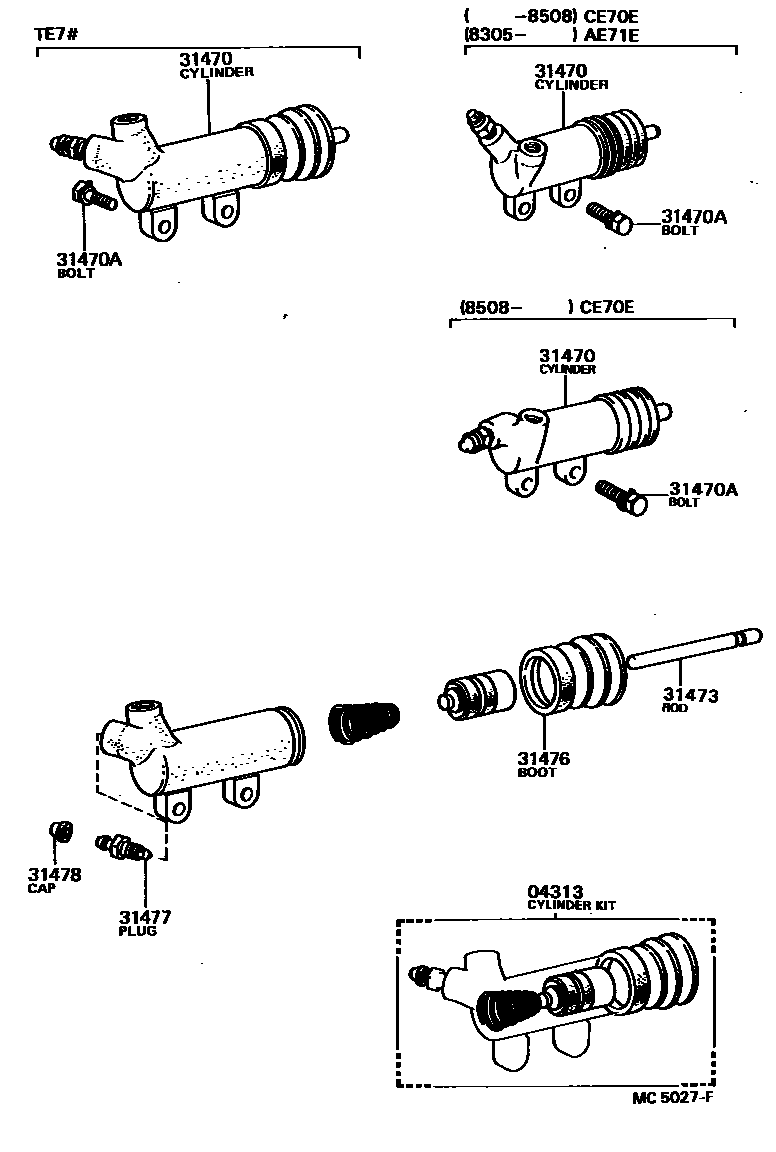

7 parts on this diagram · 1 diagram in section
