Toyota COROLLA (UKP) — STEERING WHEEL

45102WHEEL SUB-ASSY, STEERING

main45102-02790-C0iNRE210,ZWE211..C,D201901

BLACK,TRIM1#,2#

main45102-02790-C0iZWE219..C,D202301

BLACK,TRIM2#

main45102-02800-C0iMZEH12,NRE210,ZWE211..G,N201901-201910

STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM1#,2#

main45102-02800-C0iNRE210,ZWE211..D..EUR201901-201910

BLACK,TRIM1#,2#

main45102-02820-C1iMZEH19,ZWE219..G,N202301-202501

STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM2#

main45102-02820-C1iZWE219..C,D202301-202501

BLACK,TRIM2#

main45102-02820-C1iMZEH12,NRE210,ZWE211..G,N201911

BLACK,TRIM1#,2#

main45102-02820-C1iMZEH12,NRE210,ZWE211..G,N201911

STEERING WHEEL-3-SPOKE, LEATHER,BLACK,TRIM1#,2#

main45102-02821-C1iZWE219..C,D202501

BLACK,TRIM2#

main45102-02821-C1iMZEH19,ZWE219..G,N202501

STEERING WHEEL-3-SP,SYN LEATHER,BLACK,TRIM2#

main45102-02830-C1iZWE219..P202301-202501

BLACK,TRIM2#

main45102-02830-C1iZWE211..P202201

BLACK,TRIM1#,2#

main45102-02830-C1iZWE219..P202301-202501

SUB COLD AREA SPEC,BLACK,TRIM2#

main45102-02831-C1iMZEH19,ZWE219..G,N202501

BLACK,TRIM2#

main45102-02831-C1iZWE219..P202501

SUB COLD AREA SPEC,BLACK,TRIM2#

main45102-02A51-C2iMZEH19,ZWE219..S202301-202501

BLACK/BLACK/GR RED,TRIM2#

main45102-02A52-C2iMZEH19,ZWE219..S202501

BLACK/BLACK/GR RED,TRIM2#

45130BUTTON ASSY, HORN

main45130-02830-C0iMZEH12,NRE210,ZWE211201901-202207

BLACK,TRIM1#,2#

sub45130-02831

main45130-02831-C0iMZEH12,NRE210,ZWE211202208

BLACK,TRIM1#,2#

main45130-02831-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-02470-C0iNRE210,ZWE211201901

BLACK,TRIM1#,2#

main45184-02470-C0iZWE219202301

BLACK,TRIM2#

main45184-02520-C0iMZEH19202301

BLACK,TRIM2#

main45184-02520-C0iMZEH12201902

BLACK,TRIM1#,2#

8401

9010918006

main90109-18006¥240

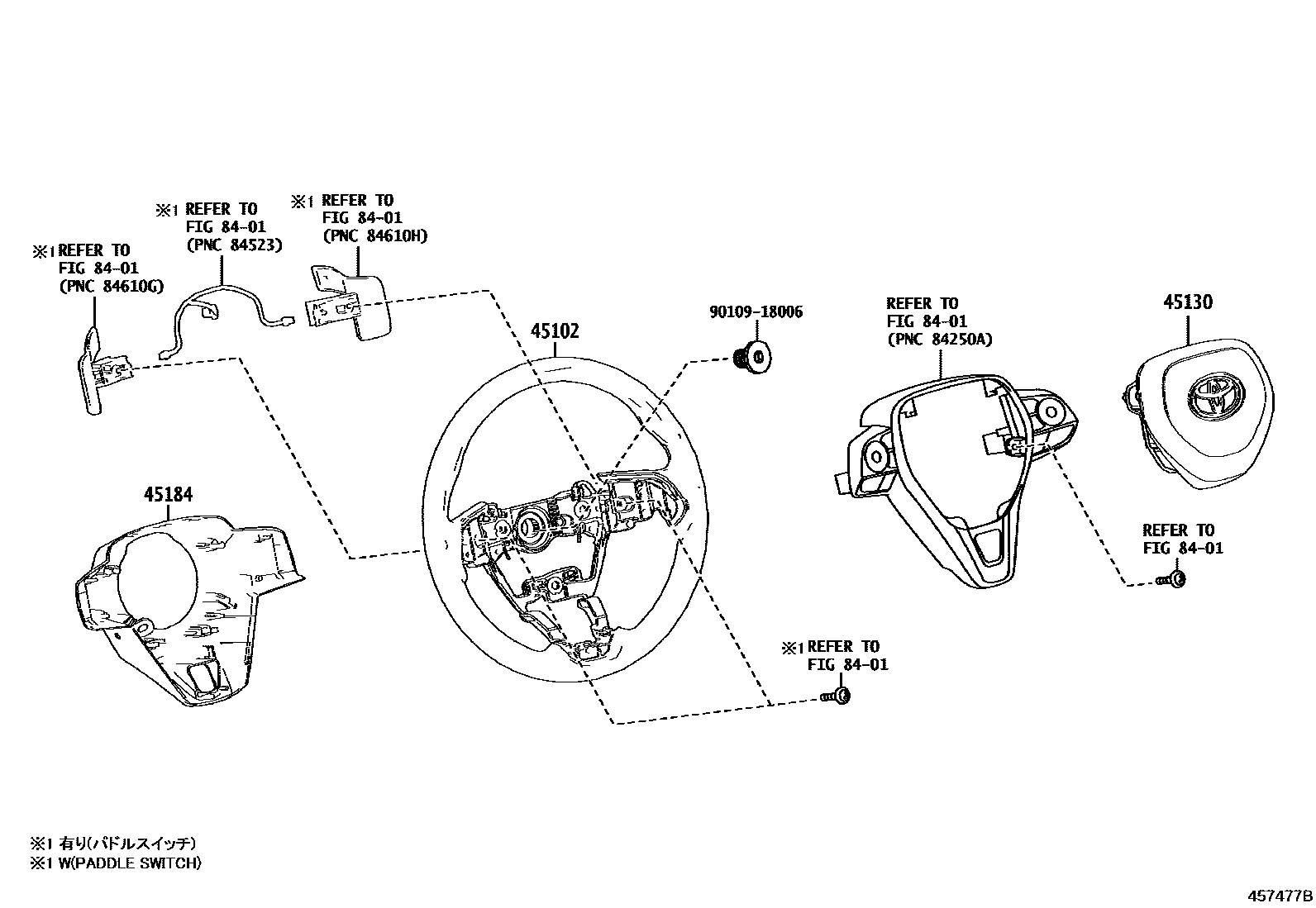

5 parts on this diagram · 1 diagram in section
