Toyota COROLLA (UKP) — PARTIAL ENGINE ASSEMBLY

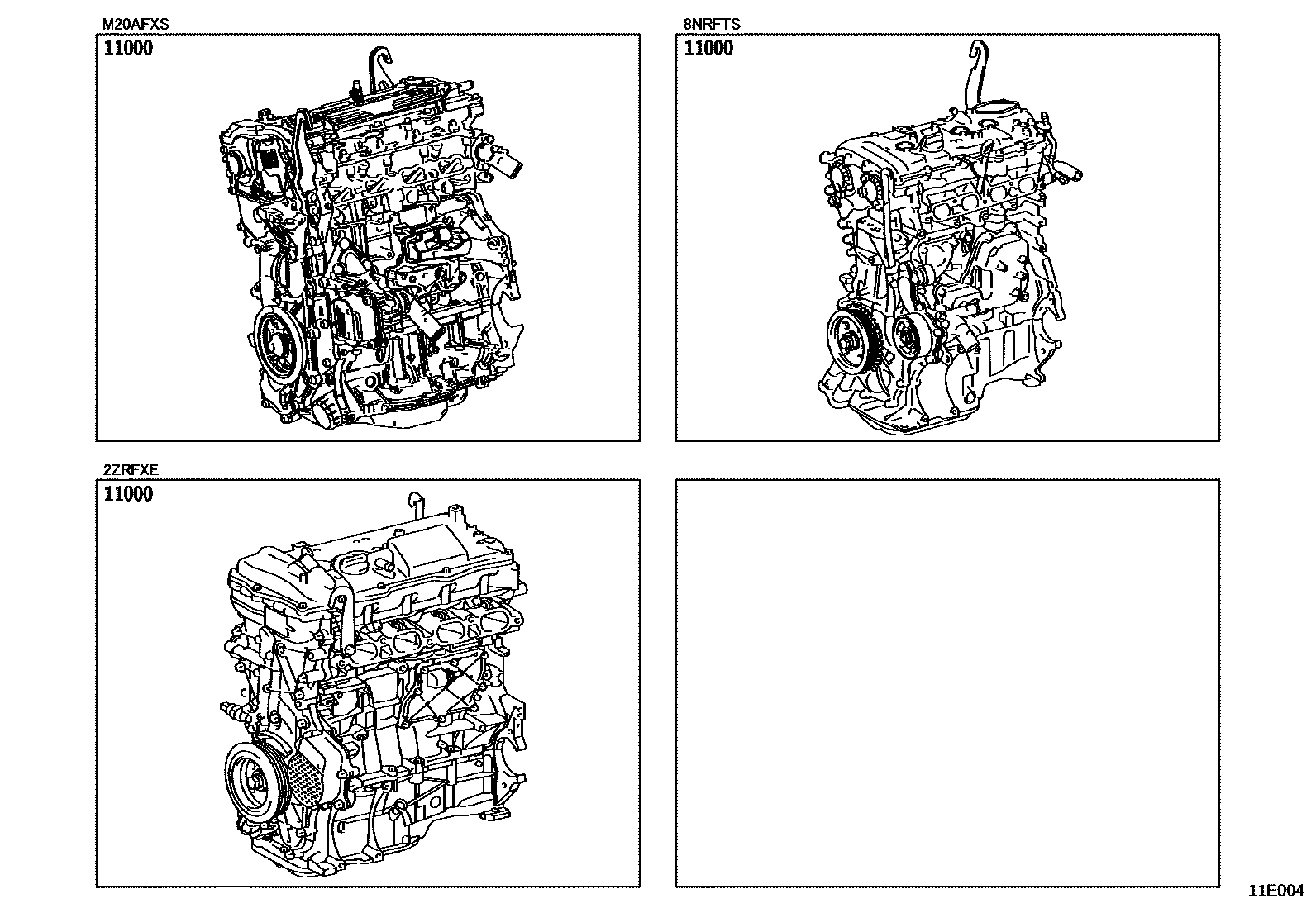

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0T580i201901-202010

main19000-0T810i202010-202110

main19000-0T840i202110

main19000-0T850i202301

main19000-24320i201902

(J)

main19000-24390i¥504,000202301-202408

*132

main19000-2U030i¥457,000202409

*132

main19000-47470i¥384,000201901

main19000-F2010i201909-202301

(L)

main19000-F2220i202301

*664

1 parts on this diagram · 1 diagram in section
