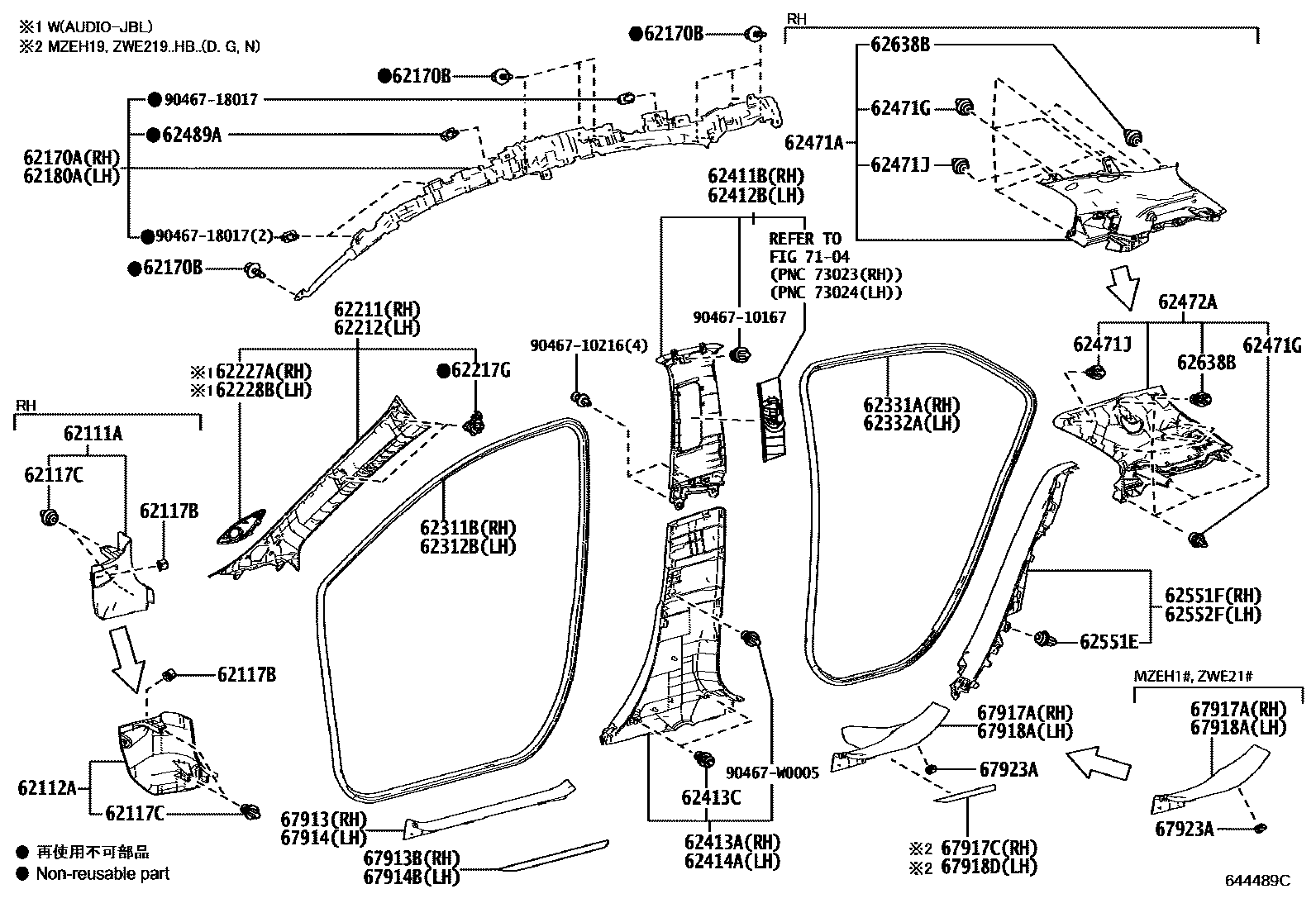

Toyota COROLLA (UKP) — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62111-02410-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

main62111-02410-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-02410-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

main62112-02410-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iMZEH12,NRE210,ZWE211¥80201901

main90467-06147iMZEH19,ZWE219¥80202301

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10167iMZEH19,ZWE219¥90202301

main90467-10167iMZEH12,NRE210,ZWE211¥90201901

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02180iMZEH12,NRE210,ZWE211..HB201901

main62170-02181iMZEH19,ZWE219..HB202301

main62170-02440iMZEH12,NRE210,ZWE211..WG201902

main62170-02440iMZEH19,ZWE219..WG202301

62170BBOLT, W/WASHER

main90119-W0037iMZEH12,NRE210,ZWE211..WG¥60201902

main90119-W0037iMZEH12,NRE210,ZWE211..HB¥60201901

main90119-W0037iMZEH19,ZWE219..WG¥60202301

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02190iMZEH12,NRE210,ZWE211..HB201901

main62180-02191iMZEH19,ZWE219..HB202301

main62180-02440iMZEH12,NRE210,ZWE211..WG201902

main62180-02440iMZEH19,ZWE219..WG202301

62211GARNISH, FRONT PILLAR, RH

main62210-02340-B0iMZEH12,NRE210,ZWE211..C,D,N,P201901

COOL GRAY,TRIM1#

main62210-02340-B0iMZEH19,ZWE219..C,D,N,P202301

COOL GRAY,TRIM22

main62210-02340-C1iMZEH19,ZWE219..N,P202301

BLACK,TRIM20,21

main62210-02340-C1iMZEH12,NRE210,ZWE211..C,D,N,P201901

BLACK,TRIM2#

main62210-02340-C1iZWE219..C,D202301

BLACK,TRIM21

main62210-02350-B0iMZEH12,NRE210,ZWE211..G201901

COOL GRAY,TRIM1#

main62210-02350-B0iMZEH19,ZWE219..G202301

COOL GRAY,TRIM22

main62210-02350-C1iMZEH19,ZWE219..G202301

BLACK,TRIM20,21

main62210-02350-C1iMZEH19,ZWE219..S202301

BLACK,TRIM2#

main62210-02350-C1iMZEH12,NRE210,ZWE211..G201901

BLACK,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-02340-B0iMZEH19,ZWE219..C,D,N,P202301

COOL GRAY,TRIM22

main62220-02340-B0iMZEH12,NRE210,ZWE211..C,D,N,P201901

COOL GRAY,TRIM1#

main62220-02340-C1iZWE219..C,D202301

BLACK,TRIM20,21

main62220-02340-C1iZWE219..C,D202301

BLACK,TRIM21

main62220-02340-C1iMZEH12,NRE210,ZWE211..C,D,N,P201901

BLACK,TRIM2#

main62220-02350-B0iMZEH19,ZWE219..G202301

COOL GRAY,TRIM22

main62220-02350-B0iMZEH12,NRE210,ZWE211..G201901

COOL GRAY,TRIM1#

main62220-02350-C1iMZEH19,ZWE219..G202301

BLACK,TRIM20,21

main62220-02350-C1iMZEH12,NRE210,ZWE211..G201901

BLACK,TRIM2#

main62220-02350-C1iMZEH19,ZWE219..G202301

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iMZEH12,NRE210,ZWE211¥140201901

main62217-42050iMZEH19,ZWE219¥140202301

62227AGRILLE, SPEAKER FRONT PILLAR GARNISH, RH

62228BGRILLE, SPEAKER FRONT PILLAR GARNISH, LH

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02300iMZEH12,NRE210,ZWE211201901

main62311-02300iMZEH19,ZWE219202301

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02340iMZEH12,NRE210,ZWE211201901

main62312-02340iMZEH19,ZWE219202301

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02360iMZEH19,ZWE219..HB202301

main62331-02360iMZEH12,NRE210,ZWE211..HB201901

main62331-02370iMZEH12,NRE210,ZWE211..WG201902

main62331-02370iMZEH19,ZWE219..WG202301

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02360iMZEH19,ZWE219..HB202301

main62332-02360iMZEH12,NRE210,ZWE211..HB201901

main62332-02370iMZEH12,NRE210,ZWE211..WG201902

main62332-02370iMZEH19,ZWE219..WG202301

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-02330-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

main62410-02330-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-02420-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

main62412-02420-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02360-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

main62413-02360-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-A0033iMZEH12,NRE210,ZWE211¥80201901

main90467-A0033iMZEH19,ZWE219¥80202301

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02360-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

main62414-02360-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-02580-B0iMZEH12,NRE210,ZWE211..HB201901

COOL GRAY,TRIM1#

main62470-02580-B0iMZEH19,ZWE219..HB..(D,G,N)202301

COOL GRAY,TRIM22,25

main62470-02580-C0iMZEH19..HB..(G,N);ZWE219..HB..(D,G)202301

BLACK,TRIM2#

main62470-02580-C0iMZEH12,NRE210,ZWE211..HB201901

BLACK,TRIM2#

main62470-02580-C0iZWE219..HB..N202301

BLACK,TRIM21,24

main62470-02580-C0iZWE219..HB..N202301

BLACK,TRIM20,21,24

main62470-02640-C0iZWE219..WG202301

BLACK,TRIM2#

main62470-02640-C0iNRE210,ZWE211..WG201902

BLACK,TRIM1#,2#

main62470-02830-C0iMZEH12..WG201902

BLACK,TRIM1#,2#

main62470-02830-C0iMZEH19..WG202301

BLACK,TRIM2#

62471GCLIP, ROOF SIDE INNER GARNISH

main90467-09240iMZEH12,NRE210,ZWE211..HB¥80201901

COLOR:RED

main90467-09240iMZEH19,ZWE219..HB¥80202301

COLOR:RED

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iMZEH12,NRE210,ZWE211¥80201901

COLOR:BLUE

main90467-10188iMZEH19,ZWE219¥80202301

COLOR:BLUE

62472AGARNISH, ROOF SIDE, INNER LH

main62480-02580-B0iMZEH12,NRE210,ZWE211..HB201901

COOL GRAY,TRIM1#

main62480-02580-B0iMZEH19,ZWE219..HB..(D,G,N)202301

COOL GRAY,TRIM22,25

main62480-02580-C0iZWE219..HB..N202301

BLACK,TRIM21,24

main62480-02580-C0iMZEH12,NRE210,ZWE211..HB201901

BLACK,TRIM2#

main62480-02580-C0iMZEH19,ZWE219..HB..S202301

BLACK,TRIM20,21,24

main62480-02580-C0iMZEH19..HB..(G,N);ZWE219..HB..(D,G)202301

BLACK,TRIM2#

main62480-02640-C0iNRE210,ZWE211..WG201902

BLACK,TRIM1#,2#

main62480-02640-C0iZWE219..WG202301

BLACK,TRIM2#

main62480-02830-C0iMZEH12..WG201902

BLACK,TRIM1#,2#

main62480-02830-C0iMZEH19..WG202301

BLACK,TRIM2#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iMZEH12,NRE210,ZWE211¥360201901

main62489-28010iMZEH19,ZWE219¥360202301

MOON ROOF-WITH(PANORAMA ROOF)

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main62217-13010iMZEH12,NRE210,ZWE211¥80201901

main62217-13010iMZEH19,ZWE219¥80202301

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02710-C0iMZEH19,ZWE219..HB202301

BLACK,TRIM2#

main62551-02710-C0iMZEH12,NRE210,ZWE211..HB201901

BLACK,TRIM1#,2#

main62551-02730-C0iNRE210,ZWE211..WG201902

BLACK,TRIM1#,2#

main62551-02730-C0iZWE219..WG202301

BLACK,TRIM2#

main62551-02830-C0iMZEH12..WG201902

BLACK,TRIM1#,2#

main62551-02830-C0iMZEH19..WG202301

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02720-C0iMZEH19,ZWE219..HB202301

BLACK,TRIM2#

main62552-02720-C0iMZEH12,NRE210,ZWE211..HB201901

BLACK,TRIM1#,2#

main62552-02770-C0iZWE219..WG202301

BLACK,TRIM2#

main62552-02770-C0iNRE210,ZWE211..WG201902

BLACK,TRIM1#,2#

main62552-02A90-C0iMZEH12..WG201902

BLACK,TRIM1#,2#

main62552-02A90-C0iMZEH19..WG202301

BLACK,TRIM2#

62638BCLIP

main90467-09236iMZEH12,NRE210,ZWE211..HB¥80201901

COLOR:GREEN

main90467-09236iMZEH19,ZWE219..HB¥80202301

COLOR:GREEN

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02390-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

main67913-02390-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-YY470iMZEH19,ZWE219..S202301

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02370-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

main67914-02370-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67913-YY470iMZEH19,ZWE219..S202301

67917APLATE, REAR DOOR SCUFF, RH

main67917-02430-C0iNRE210..HB201901

BLACK,TRIM1#,2#

main67917-02440-C0iMZEH12,ZWE211..HB201901

BLACK,TRIM1#,2#

main67917-02441-C0iMZEH19,ZWE219..HB202301

BLACK,TRIM2#

main67917-02450-C0iNRE210..WG201902

BLACK,TRIM1#,2#

main67917-02460-C0iMZEH12,ZWE211..WG201902

BLACK,TRIM1#,2#

main67917-02461-C0iMZEH19,ZWE219..WG202301

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

67918APLATE, REAR DOOR SCUFF, LH

main67918-02450-C0iNRE210..HB201901

BLACK,TRIM1#,2#

main67918-02460-C0iMZEH12,ZWE211..HB201901

BLACK,TRIM1#,2#

main67918-02461-C0iMZEH19,ZWE219..HB202301

BLACK,TRIM2#

main67918-02470-C0iNRE210..WG201902

BLACK,TRIM1#,2#

main67918-02480-C0iMZEH12,ZWE211..WG201902

BLACK,TRIM1#,2#

main67918-02481-C0iMZEH19,ZWE219..WG202301

BLACK,TRIM2#

67918DPLATE, REAR DOOR SCUFF, LH

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090iMZEH12,NRE210,ZWE211¥110201901

main67923-20090iMZEH19,ZWE219¥110202301

7104

9046710167

main90467-10167¥90

9046710216

main90467-10216¥100

9046718017

main90467-18017¥180

90467W0005

main90467-W0005¥80

44 parts on this diagram · 2 diagrams in section
