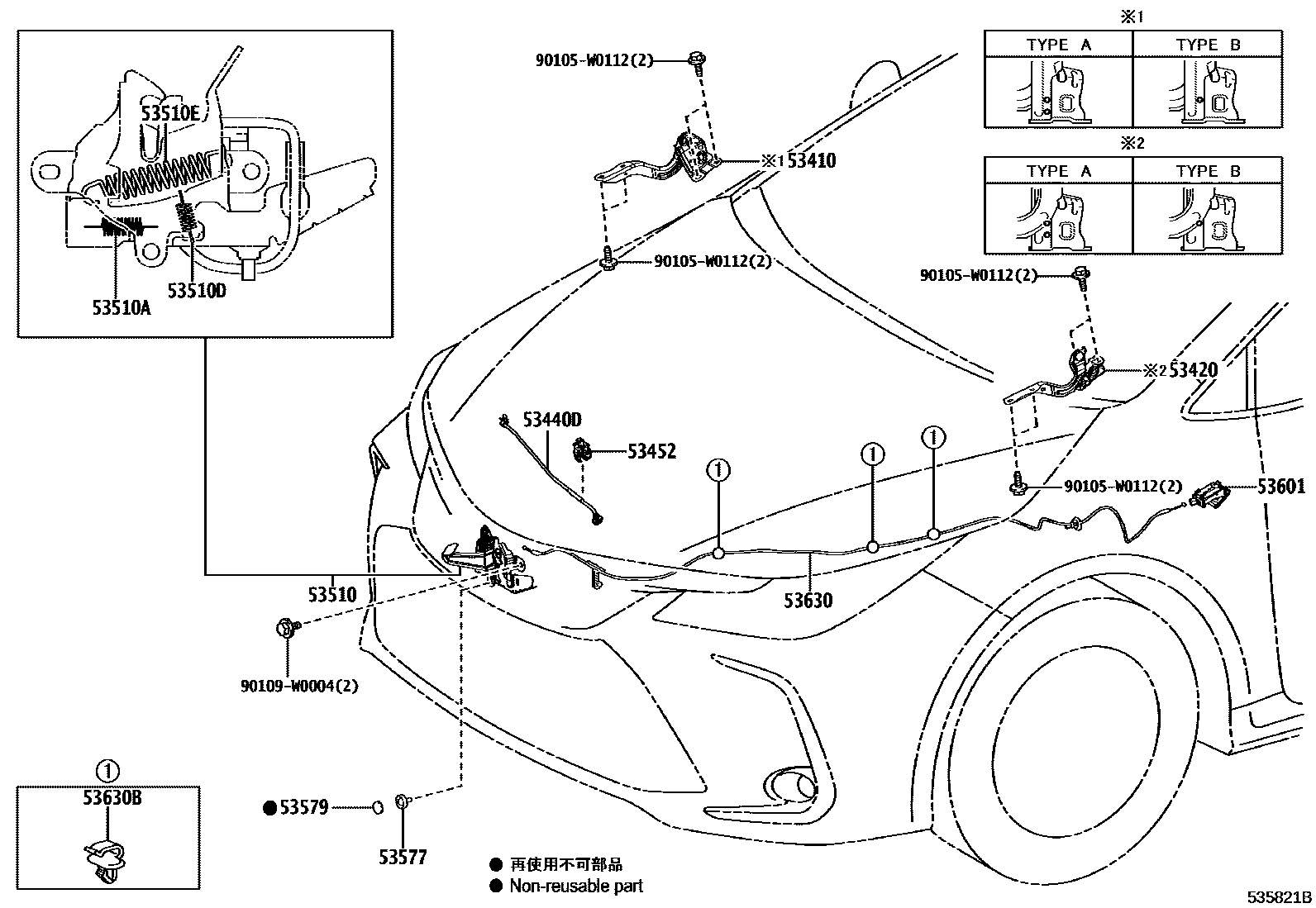

Toyota COROLLA (UKP) — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-02540iMZEH12,NRE210,ZWE211201901

TYPE A:REFER ILLUST.

main53410-02550iMZEH12,NRE210,ZWE211201901

TYPE B:REFER ILLUST.

53420HINGE ASSY, HOOD, LH

main53420-02540iMZEH12,NRE210,ZWE211201901

TYPE A:REFER ILLUST.

main53420-02550iMZEH19,ZWE219201901

TYPE B:REFER ILLUST.

53440DSUPPORT ASSY, HOOD

main53440-02280iMZEH12,NRE210,ZWE211201901

53452HOLDER, HOOD STAY

main53452-02330iMZEH12,NRE210,ZWE211201901

53510LOCK ASSY, HOOD

main53510-02790iNRE210..LHD..HB;MZEH12,ZWE211..LHD;NRE210..LHD..WG..6F201901

main53510-02800iNRE210..LHD..WG..CVT201902

main53510-02820iMZEH12,NRE210,ZWE211..RHD201901

main53510-02821iMZEH19,ZWE219..RHD202301

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-W0010iMZEH12,NRE210,ZWE211201901

WD=0.9,CW=20.75

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-W0009iMZEH12,NRE210,ZWE211201901

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-W0008iMZEH12,NRE210,ZWE211201901

WD=1.6,CW=12

53577BOLT, HOOD LOCK

main53577-33010iMZEH12,NRE210,ZWE211¥230201901-202003

53579CAP, HOOD LOCK NUT

main53579-50010iMZEH12,NRE210,ZWE211¥100201901-202003

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-F4020-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

sub53601-F4020¥1,860

main53601-F4020-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

sub53601-F4020¥1,860

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02390iMZEH12,NRE210,ZWE211..LHD201901

main53630-02391iMZEH19,ZWE219..LHD202301

main53630-02450iMZEH12,NRE210,ZWE211..RHD201901

main53630-02451iMZEH19,ZWE219..RHD202301

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iMZEH12,NRE210,ZWE211¥80201901

90105W0112

main90105-W0112

90109W0004

main90109-W0004

15 parts on this diagram · 2 diagrams in section
