Toyota COROLLA (UKP) — HEADLAMP

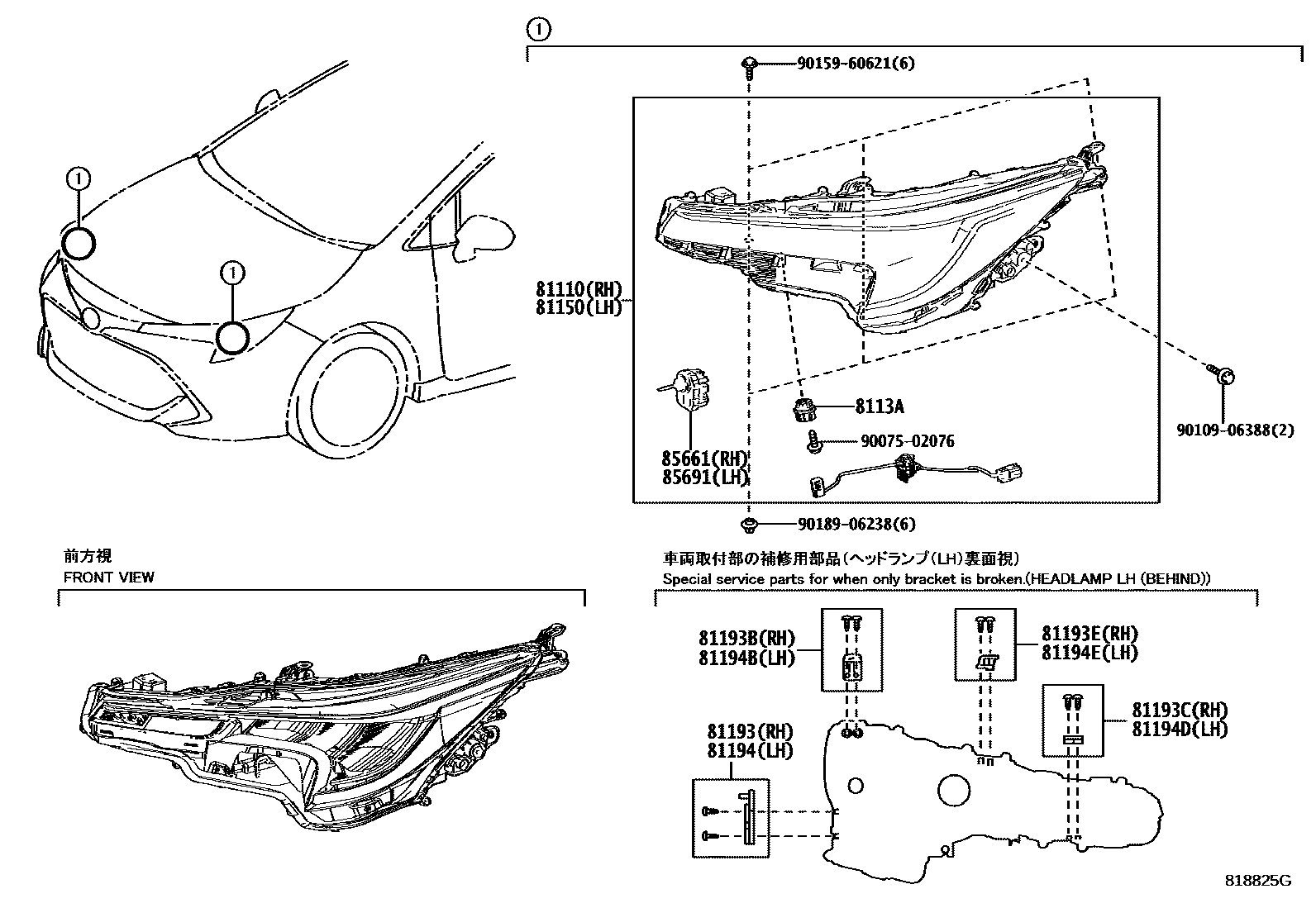

0001 1TYPE A:TRIPLE BEAM LED HEADLA0002 1TYPE B:BI-BEAM LED HEADLAMP 0003 1TYPE C:BI-BEAM LED HEADLAMP(W0004 1TYPE B:BI-BEAM LED HEADLAMP 0005 1TYPE C:BI-BEAM LED HEADLAMP(W

81110HEADLAMP ASSY, RH

main00000-00000iMZEH12,NRE210,ZWE211..G201901

HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST.

main00000-00000iMZEH12,NRE210,ZWE211..LHD..N201901

HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST.

main00000-00000iMZEH12,NRE210,ZWE211..LHD..N201901

HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST.

main00000-00000iMZEH12,NRE210,ZWE211..N201901

TYPE B:REFER ILLUST.

main81110-02S60iZWE219..P;MZEH19,ZWE219..LHD..(C,D,N,S)202301

TYPE A:REFER ILLUST.

main81110-02S60iMZEH12,NRE210,ZWE211..LHD..G201901

TYPE A:REFER ILLUST.

main81110-02S60iMZEH12,NRE210,ZWE211..LHD..G201901

HEADLAMP-MULTI REFLECTOR,TYPE A:REFER ILLUST.

main81110-02S60iMZEH12,NRE210,ZWE211..LHD..G201901

HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST.

main81110-02T00iMZEH19,ZWE219..RHD..(C,D,N,S)202301

TYPE A:REFER ILLUST.

main81110-02T00iMZEH12,NRE210,ZWE211..RHD..(C,D,N)201901

HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST.

main81110-02T00iMZEH12,NRE210,ZWE211..RHD..G201901

TYPE A:REFER ILLUST.

8113ALED, HEADLAMP FRONT TURN SIGNAL

main8113A-02S60iMZEH19,ZWE219..C,D,N,P,S202301

TYPE A:REFER ILLUST.

main8113A-02S60iMZEH12,NRE210,ZWE211..N201901

HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST.

main8113A-02S60iMZEH12,NRE210,ZWE211..G201901

TYPE B:REFER ILLUST.

main8113A-02S60iMZEH12,NRE210,ZWE211..G201901

TYPE A:REFER ILLUST.

main8113A-02S60iMZEH12,NRE210,ZWE211..G201901

HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST.

main8113A-02S60iMZEH12,NRE210,ZWE211..G201901

HEADLAMP-MULTI REFLECTOR,TYPE A:REFER ILLUST.

main8113A-02S60iMZEH12,NRE210,ZWE211..G201901

HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST.

81150HEADLAMP ASSY, LH

main00000-00000iMZEH12,NRE210,ZWE211..G201901

TYPE B:REFER ILLUST.

main00000-00000iMZEH12,NRE210,ZWE211..G201901

HEADLAMP-PROJECTOR & WITH(*AHB),TYPE B:REFER ILLUST.

main00000-00000iMZEH12,NRE210,ZWE211..G201901

HEADLAMP-PROJECTOR & WITH(*AHS),TYPE C:REFER ILLUST.

main00000-00000iMZEH12,NRE210,ZWE211..N201901

HEADLAMP-PROJECTOR,TYPE B:REFER ILLUST.

main81150-02S60iZWE219..P;MZEH19,ZWE219..LHD..(C,D,N,S)202301

TYPE A:REFER ILLUST.

main81150-02S60iMZEH12,NRE210,ZWE211..LHD..G201901

TYPE A:REFER ILLUST.

main81150-02S60iMZEH12,NRE210,ZWE211..LHD..G201901

HEADLAMP-MULTI REFLECTOR,TYPE A:REFER ILLUST.

main81150-02S60iMZEH12,NRE210,ZWE211..LHD..G201901

HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST.

main81150-02T00iMZEH12,NRE210,ZWE211..RHD..(C,D,N)201901

TYPE A:REFER ILLUST.

main81150-02T00iMZEH12,NRE210,ZWE211..RHD..(C,D,N)201901

HEADLAMP-MULTI REFLECTOR & WITH(*AHB),TYPE A:REFER ILLUST.

main81150-02T00iMZEH19,ZWE219..RHD..(C,D,N,S)202301

TYPE A:REFER ILLUST.

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12250iMZEH12,NRE210,ZWE211¥700201901

main81193-12250iMZEH19,ZWE219¥700202301

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-12260iMZEH12,NRE210,ZWE211¥440201901

main81193-12260iMZEH19,ZWE219¥440202301

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-12270iMZEH12,NRE210,ZWE211¥390201901

main81193-12270iMZEH19,ZWE219¥390202301

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-12280iMZEH12,NRE210,ZWE211¥440201901

main81193-12280iMZEH19,ZWE219¥440202301

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12250iMZEH12,NRE210,ZWE211¥700201901

main81194-12250iMZEH19,ZWE219¥700202301

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-12260iMZEH12,NRE210,ZWE211¥440201901

main81194-12260iMZEH19,ZWE219¥440202301

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-12270iMZEH12,NRE210,ZWE211¥390201901

main81194-12270iMZEH19,ZWE219¥390202301

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-12280iMZEH12,NRE210,ZWE211¥440201901

main81194-12280iMZEH19,ZWE219¥440202301

85661MOTOR, HEADLAMP LEVELING, RH

main85661-68011iMZEH12,NRE210,ZWE211..C,D,N,P¥3,710201901

HEADLAMP-MULTI REFLECTOR

main85661-68011iMZEH12,NRE210,ZWE211..C,D,N,P¥3,710201901

HEADLAMP-MULTI REFLECTOR & WITH(*AHB)

main85661-68011iMZEH19,ZWE219..C,D,N,P,S¥3,710202301

85691MOTOR, HEADLAMP LEVELING, LH

main85661-68011iMZEH12,NRE210,ZWE211..C,D,N,P¥3,710201901

HEADLAMP-MULTI REFLECTOR

main85661-68011iMZEH12,NRE210,ZWE211..C,D,N,P¥3,710201901

HEADLAMP-MULTI REFLECTOR & WITH(*AHB)

main85661-68011iMZEH19,ZWE219..C,D,N,P,S¥3,710202301

9007502076

main90075-02076

9010906388

main90109-06388¥70

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

17 parts on this diagram · 5 diagrams in section
