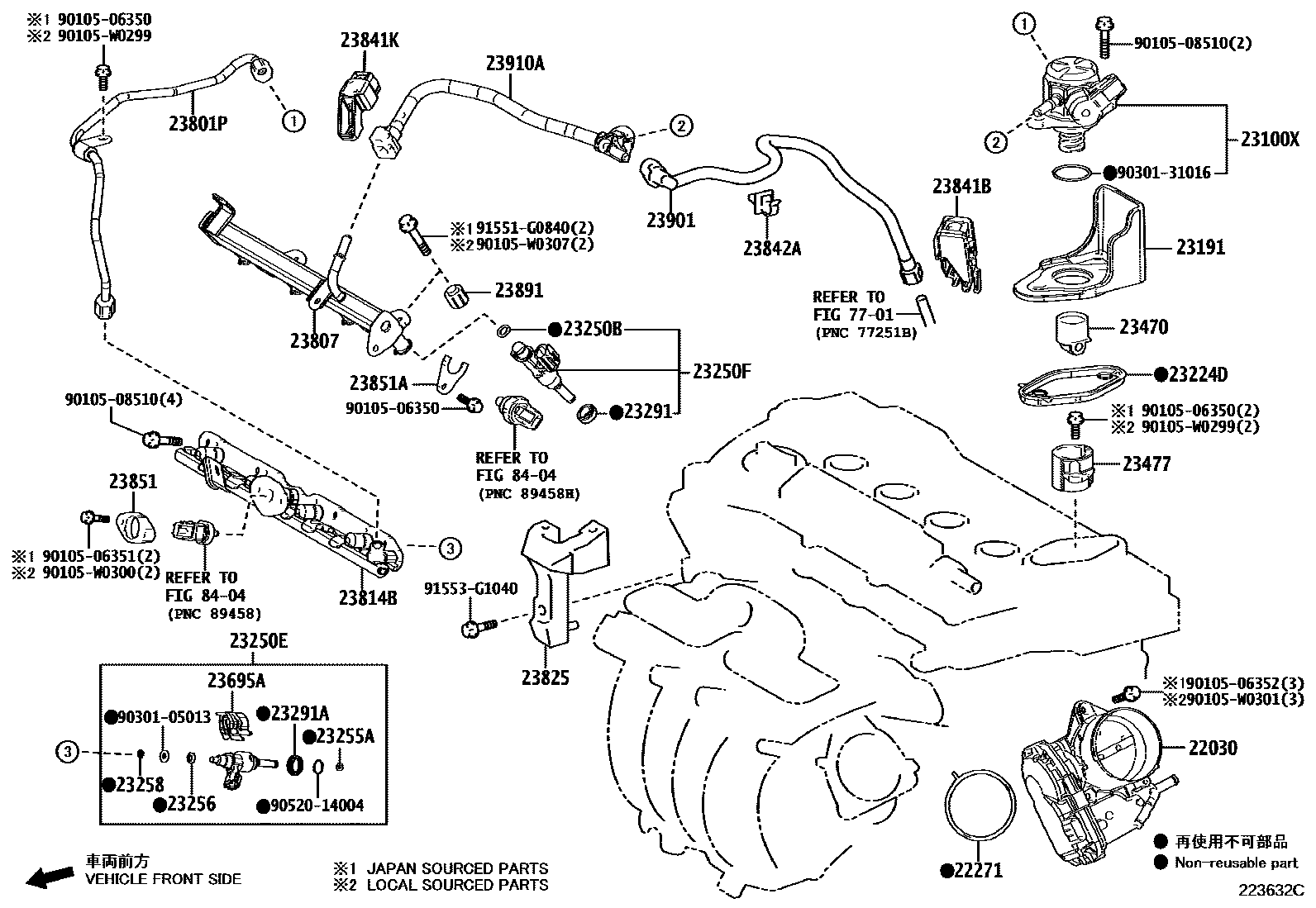

Toyota COROLLA (UKP) — FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
*132
*613
22271GASKET, THROTTLE BODY
(L)
*613
*132
*132,*613
(J)
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
*132
*613
23191FLANGE, FUEL PUMP
*132
*613
23224DGASKET, FUEL PUMP SPACER
*132,*613
*132
*613
23250INJECTOR ASSY, FUEL
(L)
(J)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250BRING, O(FOR FUEL INJECTOR)
(J),*136,(J),*132
(J),*132
(J),*613
(L),*613
(L),*132
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,*132:REFER R/M
MARK 1,*613,(J):REFER R/M,*132:REFER R/M
MARK 1,*613,(J):REFER R/M
MARK 2,*613,(J):REFER R/M,*132:REFER R/M
MARK 2,*132:REFER R/M
MARK 2,*613,(J):REFER R/M
MARK 3,*132:REFER R/M
MARK 3,*613,(J):REFER R/M,*132:REFER R/M
MARK 3,*613,(J):REFER R/M
MARK 4,*613,(J):REFER R/M
MARK 4,*132:REFER R/M
MARK 4,*613,(J):REFER R/M,*132:REFER R/M
MARK 5,*613,(J):REFER R/M,*132:REFER R/M
MARK 5,*613,(J):REFER R/M
MARK 5,*132:REFER R/M
MARK 6,*613,(J):REFER R/M
MARK 6,*132:REFER R/M
MARK 6,*613,(J):REFER R/M,*132:REFER R/M
MARK 7,*613,(J):REFER R/M
MARK 7,*132:REFER R/M
MARK 7,*613,(J):REFER R/M,*132:REFER R/M
MARK 8,*613,(J):REFER R/M,*132:REFER R/M
MARK 8,*613,(J):REFER R/M
MARK 8,*132:REFER R/M
MARK 9,*132:REFER R/M
MARK 9,*613,(J):REFER R/M
MARK 9,*613,(J):REFER R/M,*132:REFER R/M
MARK 1,*613,(L):REFER R/M
MARK 2,*613,(L):REFER R/M
MARK 3,*613,(L):REFER R/M
MARK 4,*613,(L):REFER R/M
MARK 5,*613,(L):REFER R/M
MARK 6,*613,(L):REFER R/M
MARK 7,*613,(L):REFER R/M
MARK 8,*613,(L):REFER R/M
MARK 9,*613,(L):REFER R/M
23250FINJECTOR ASSY, FUEL(FOR PORT)
*132
*613
*132,*613
23255ASEAL, FUEL INJECTOR
*132
*613
*132,*613
23256RING, FUEL INJECTOR BACK-UP, NO.1
*132
*613
*132,*613
23258RING, FUEL INJECTOR BACK-UP, NO.3
*613,LIGHT BLUE
*132
*132,*613,LIGHT BLUE
*613,ORANGE
23291INSULATOR, INJECTOR VIBRATION
*613
*132
*613
23291AINSULATOR, INJECTOR VIBRATION
*613
*132
*132,*613
23470LIFTER ASSY, FUEL PUMP
*132
*613
23477GUIDE, FUEL PUMP LIFTER
(J),*613
*613
*132
*132,(J),*613
(L),*613
23695ACLAMP, NOZZLE HOLDER
*613
*132
*132,*613
23801PPIPE SUB-ASSY, FUEL, NO.1
*132
*613
*132,*613
23807PIPE SUB-ASSY, FUEL DELIVERY
*132,*613
*132
*613
23814BPIPE, FUEL DELIVERY
*132,*613
23825GUARD, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
*132
(J),*613
*132,(J),*613
(L),*613
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
*613
*132
(J),*613
*132,(J),*613
(L),*613
23891SPACER, FUEL DELIVERY
*132,*613
*132
*613
23910ATUBE SUB-ASSY, FUEL
(J)
(L)
7701
8404
9010506350
9010506351
9010506352
9010508510
90105W0299
main90105-W0299
90105W0300
main90105-W0300
90105W0301
main90105-W0301
90105W0307
main90105-W0307
9030105013
9030131016
9052014004
91551G0840
91553G1040
44 parts on this diagram · 5 diagrams in section
