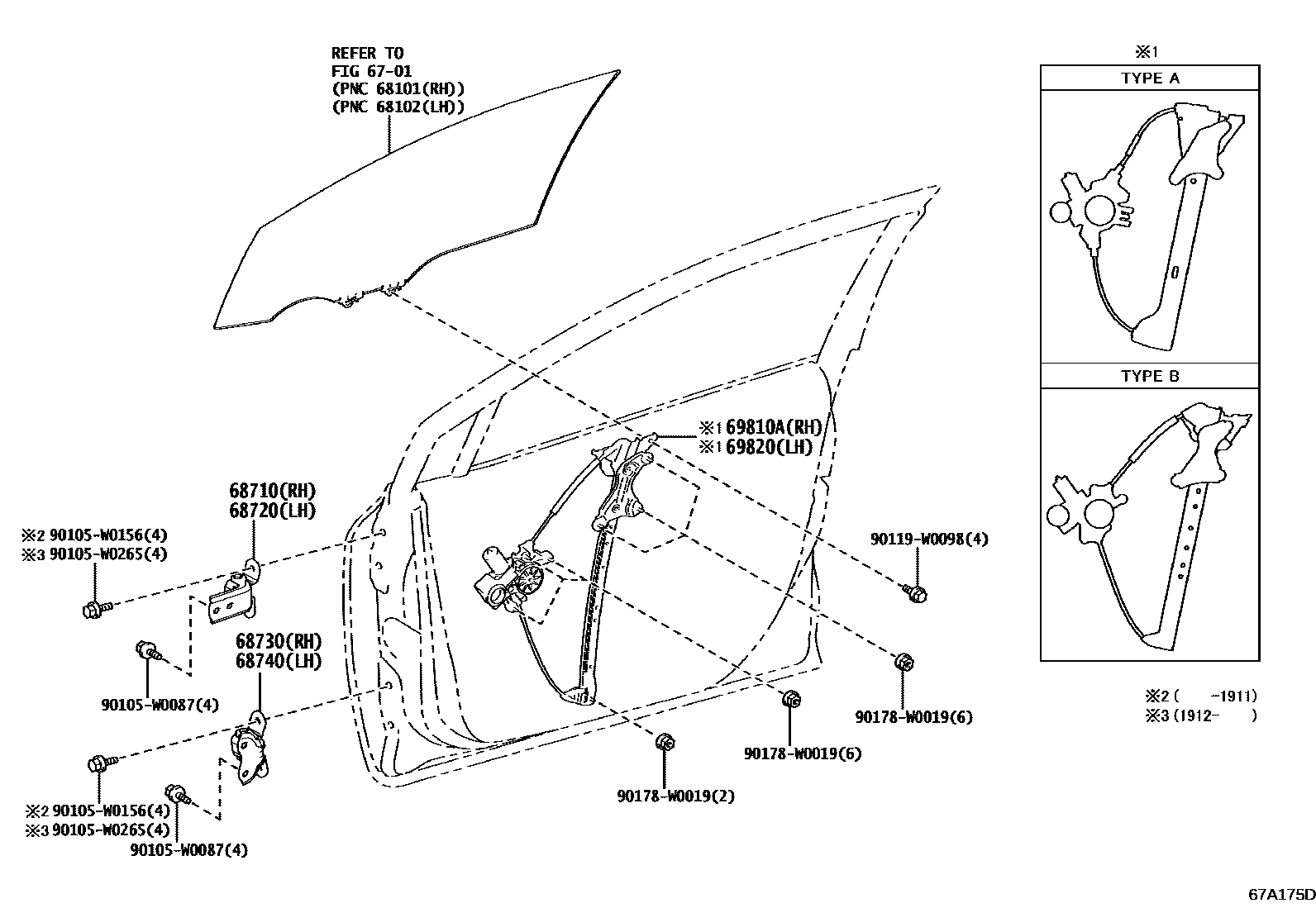

Toyota COROLLA (UKP) — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02060iMZEH19,ZWE219¥3,240201901

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02060iMZEH12,NRE210,ZWE211¥3,240201901

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iMZEH12,NRE210,ZWE211¥2,950201901

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iMZEH19,ZWE219¥2,950201901

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02721iMZEH12,NRE210,ZWE211201901

TYPE A:REFER ILLUST.

main69810-02722iMZEH19,ZWE219202301

TYPE A:REFER ILLUST.

main69810-12781iMZEH12,NRE210,ZWE211201901-202008

TYPE B:REFER ILLUST.

sub69801-12272¥4,330

sub85710-12530¥20,900

sub90168-50040¥70

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02741iMZEH12,NRE210,ZWE211201901

TYPE A:REFER ILLUST.

main69820-02742iMZEH19,ZWE219202301

TYPE A:REFER ILLUST.

main69820-12761iMZEH12,NRE210,ZWE211201901-202008

TYPE B:REFER ILLUST.

sub69802-12272¥4,330

sub85720-12520¥20,900

sub90168-50040¥70

90105W0087

main90105-W0087¥80

90105W0156

main90105-W0156¥80

90105W0265

main90105-W0265

90119W0098

main90119-W0098¥60

90178W0019

main90178-W0019¥110

12 parts on this diagram · 1 diagram in section
