Toyota COROLLA (UKP) — ENGINE OVERHAUL GASKET KIT

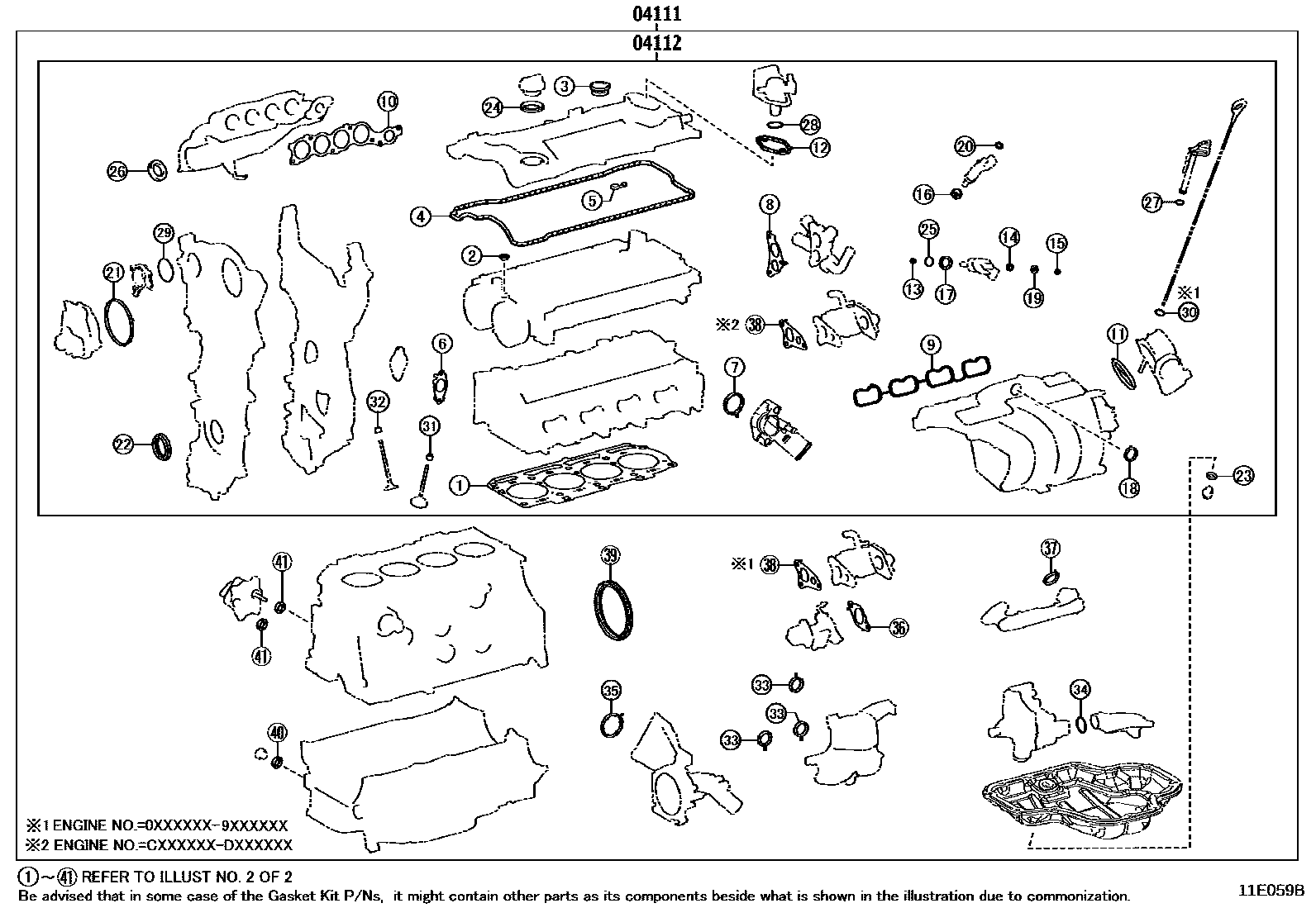

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-0T281i201901-202110
main04111-0T282i202006-202010
main04111-0T283i202110
main04111-24130i201902-202107
*132
sub04111-24131
main04111-24131i202107
*132
sub04111-24132
main04111-24131i202301-202408
(J)
sub04111-24132
main04111-24132i202408
(J)
main04111-47272i¥27,400201901
main04111-F2010i201909-202110
*613
sub04111-F2011
main04111-F2011i202110
*613
main04111-F2011i202301
(L)
04112GASKET KIT, ENGINE VALVE GRIND
main04112-0T231i201901-202110
sub04112-0T233
main04112-0T232i202006-202010
sub04112-0T233
main04112-0T233i202110
main04112-24070i201902-202107
*132
sub04112-24071
main04112-24071i202301-202408
(J)
sub04112-24072
main04112-24071i202107
*132
sub04112-24072
main04112-24072i202408
(J)
main04112-47182i¥22,200201901
main04112-F2010i201909-202110
*613
sub04112-F2011
main04112-F2011i202110
*613
main04112-F2011i202301
(L)

2 parts on this diagram · 6 diagrams in section
