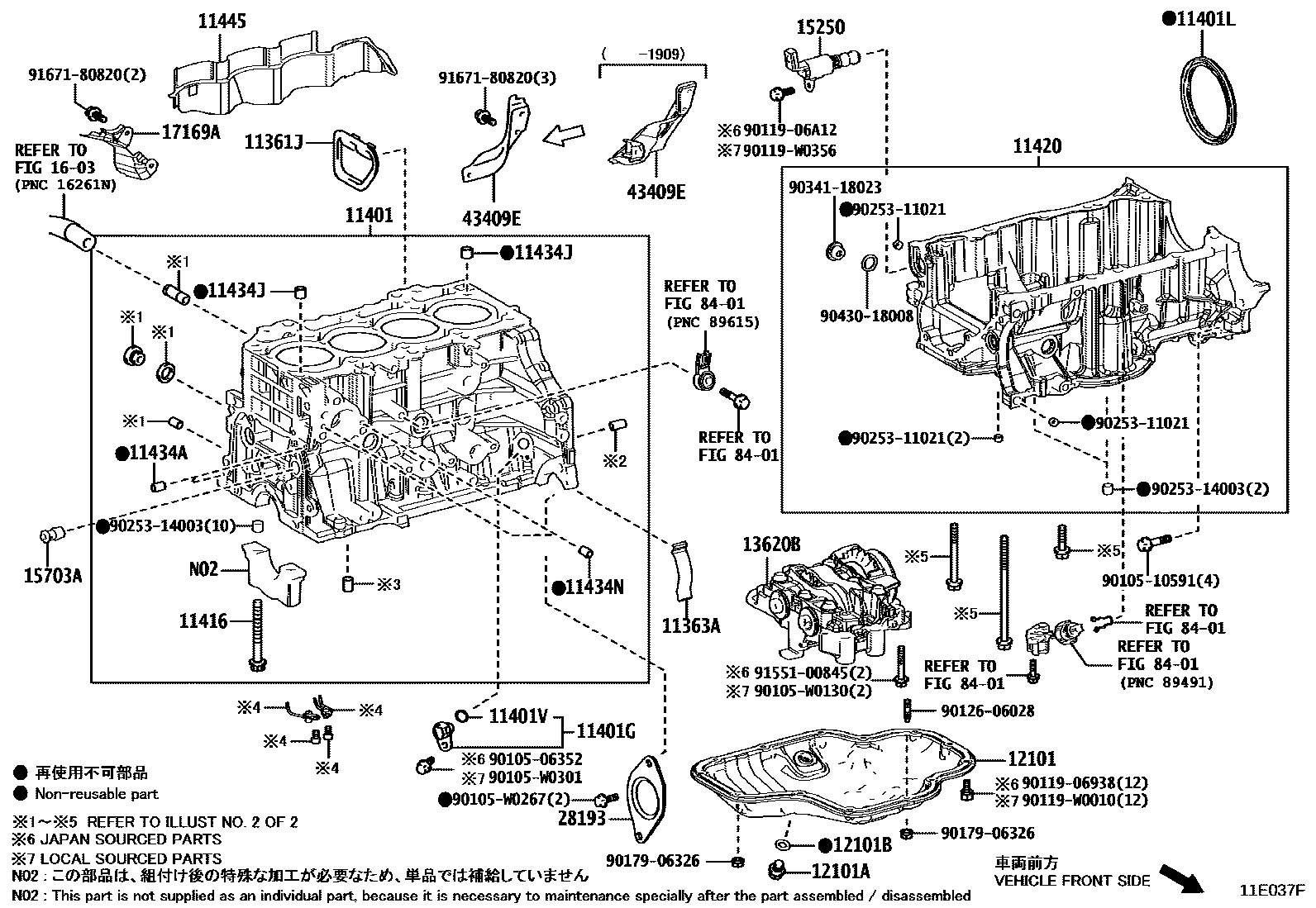

Toyota COROLLA (UKP) — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
COLOR:BLACK
COLOR:GRAY
11401GSENSOR, CRANK POSITION
*132
*613
*132,*613
11401LSEAL, ENGINE REAR OIL
(J)
*132
(J),*613
*132,(J),*613
(L)
(L),*613
11401VO-RING, CRANK POSITION SENSOR
*132,*613
*132
*613
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*132,*613
*132
*613
11420CRANKCASE ASSY, STIFFENING
(L)
*132
*132
*613
*613
11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6,*613
L=14,OD=6,*132,*613
L=14,OD=6,*132
11434JPIN, RING (FOR CYLINDER HEAD SET)
*613
*132
*132,*613
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*132
*613
*132,*613
11445SPACER, CYLINDER BLOCK WATER JACKET
*132
*613
12101PAN SUB-ASSY, OIL
*132,(J),*613
*132
*613
(L),*613
12101APLUG(FOR OIL PAN DRAIN)
*132
*613
*132,*613
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*132
*613
*132,*613
13620BBALANCER ASSY, ENGINE
*132
*613
15250VALVE ASSY, OIL PRESSURE CONTROL
*613
*132
*132,*613
15703AVALVE SUB-ASSY, OIL NOZZLE
*613
*132
*132,*613
1603
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
*132
*613
28193INSULATOR, STARTER HOLE
43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
8401
9010506352
9010510591
90105W0130
main90105-W0130
90105W0267
main90105-W0267
90105W0301
main90105-W0301
9011906938
9011906A12
90119W0010
main90119-W0010
90119W0356
main90119-W0356
9012606028
9017906326
9025311021
9025314003
9034118023
9043018008
9155100845
9167180820
41 parts on this diagram · 8 diagrams in section
