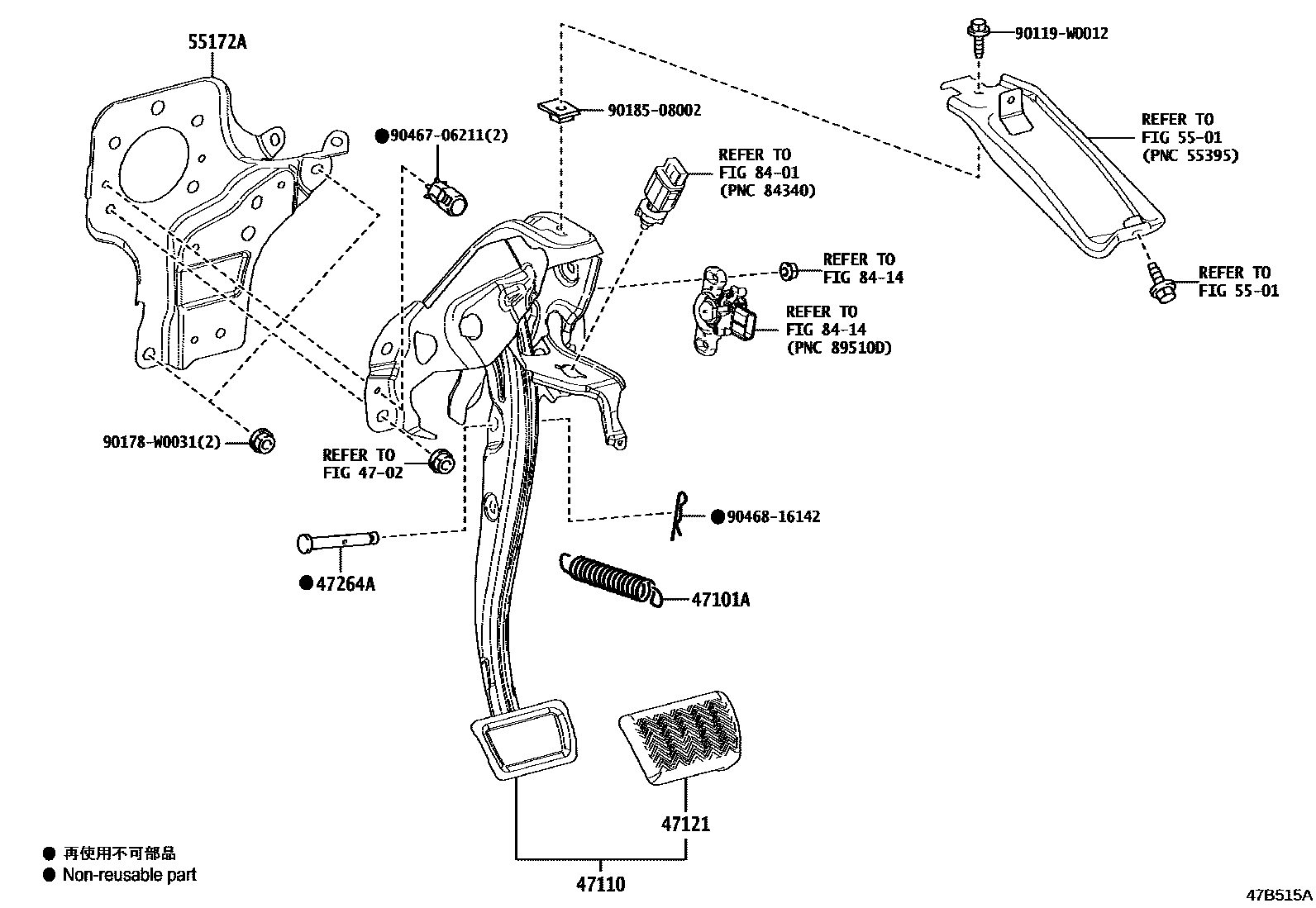

Toyota COROLLA (UKP) — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15009iMZEH19,ZWE219¥160201901

main90507-15010iNRE210¥180201901

47110SUPPORT ASSY, BRAKE PEDAL

main47110-12390iNRE210..LHD..CVT201901

sub47110-12391

main47110-12400iNRE210..LHD..6F201901

main47110-12420iNRE210..RHD..CVT¥7,500201901

sub47110-12421¥6,800

main47110-12430iNRE210..RHD..6F¥7,600201901

main47110-12500iMZEH19,ZWE219..LHD202301

main47110-12510iMZEH19,ZWE219..RHD¥6,800202301

main47110-47060iMZEH12,ZWE211..LHD¥7,600201901-202206

main47110-47070iMZEH12,ZWE211..RHD¥7,600201901-202206

sub47110-76090¥6,800

main47110-76090iMZEH12,ZWE211..RHD¥6,800202207

main47110-76170iMZEH12,ZWE211..LHD202207

47121PAD, BRAKE PEDAL

main47121-12040iNRE210..6F¥300201901

main47121-16020iMZEH19,ZWE219¥400202207

main47121-47010iMZEH12,ZWE211¥400201901-202206

47264APIN(FOR PUSH ROD)

main90249-08221iNRE210..RHD;NRE210..LHD..6F¥220201901

main90249-08309iMZEH19,ZWE219¥160201901

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-02110iMZEH12,NRE210,ZWE211..LHD201901

main55172-02120iMZEH12,NRE210,ZWE211..RHD201901

8401

8414

90119W0012

main90119-W0012

90178W0031

main90178-W0031¥100

9018508002

main90185-08002¥200

9046706211

main90467-06211¥80

9046816142

main90468-16142¥70

14 parts on this diagram · 4 diagrams in section
