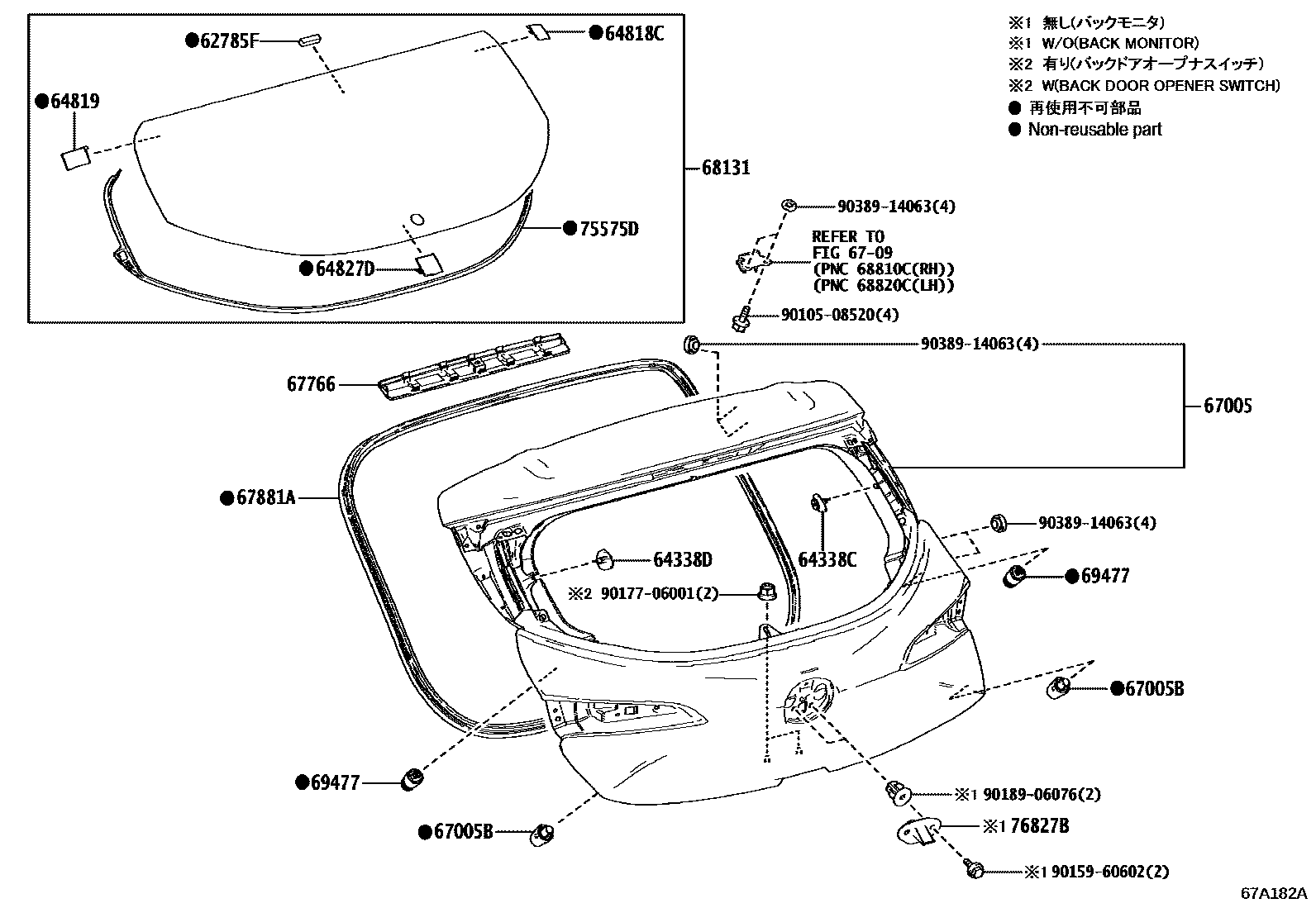

Toyota COROLLA (UKP) — BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64338CHOOK, PACKAGE TRAY TRIM GARNISH, RH
LIGHT GRADE,BLACK,TRIM1#,2#
LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2#
LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&TRUNK & DECK CARPET & MAT-WITHOUT(LIGHT),BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
64338DHOOK, PACKAGE TRAY TRIM GARNISH, LH
LIGHT GRADE,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS),BLACK,TRIM1#,2#
LIGHT GRADE&SPARE TIRE-WITHOUT(REPAIR KIT LESS)&TRUNK & DECK CARPET & MAT-WITHOUT(LIGHT),BLACK,TRIM1#,2#
BLACK,TRIM2#
64818CSPACER, BACK WINDOW GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
64827DCLIP, BACK WINDOW GLASS
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
6709
67766COVER, BACK DOOR SERVICE HOLE, NO.2
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
sub68105-02331
REAR SIDE GLASS-GREEN
BACK GLASS-GREEN & WITH(AERO FIN)
BACK GLASS-PRIVACY & WITH(AERO FIN)
BACK GLASS-PRIVACY
BACK GLASS-UV GREEN
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER
sub68105-02531
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & DAB & 6SPEAKER
sub68105-02531
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & DAB & JBL & 8SPEAKER
sub68105-02531
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & NAVI & DAB & 6SPEAKER
sub68105-02531
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & DAB & 6SPEAKER
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & NAVI & DAB & 6SPEAKER
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & DAB & 6SPEAKER
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & NAVI & DAB & 6SPEAKER
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & DAB & 6SPEAKER
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & NAVI & DAB & 6SPEAKER
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & DAB & 6SPEAKER
sub68105-02681
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & NAVI & DAB & 6SPEAKER
sub68105-02681
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER
sub68105-02681
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & DAB & JBL & 8SPEAKER
sub68105-02681
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & NAVI & DAB & 6SPEAKER
REAR SIDE GLASS-PRIVACY&AUDIO-8INCH & DAB & 6SPEAKER
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-GREEN
REAR SIDE GLASS-GREEN
69477CUSHION, BACK DOOR UPPER STOPPER
75575DMOULDING, BACK WINDOW, LOWER
76827BRETAINER, BACK DOOR GARNISH, NO.2
LIGHT GRADE&AUDIO-WITHOUT(SPEAKER)
AUDIO-RADIO LESS 6SPEAKER
AUDIO-RADIO LESS 6SPEAKER
LIGHT GRADE&AUDIO-WITHOUT(SPEAKER)
9010508520
9015960602
9017706001
9018906076
9038914063
20 parts on this diagram · 4 diagrams in section
