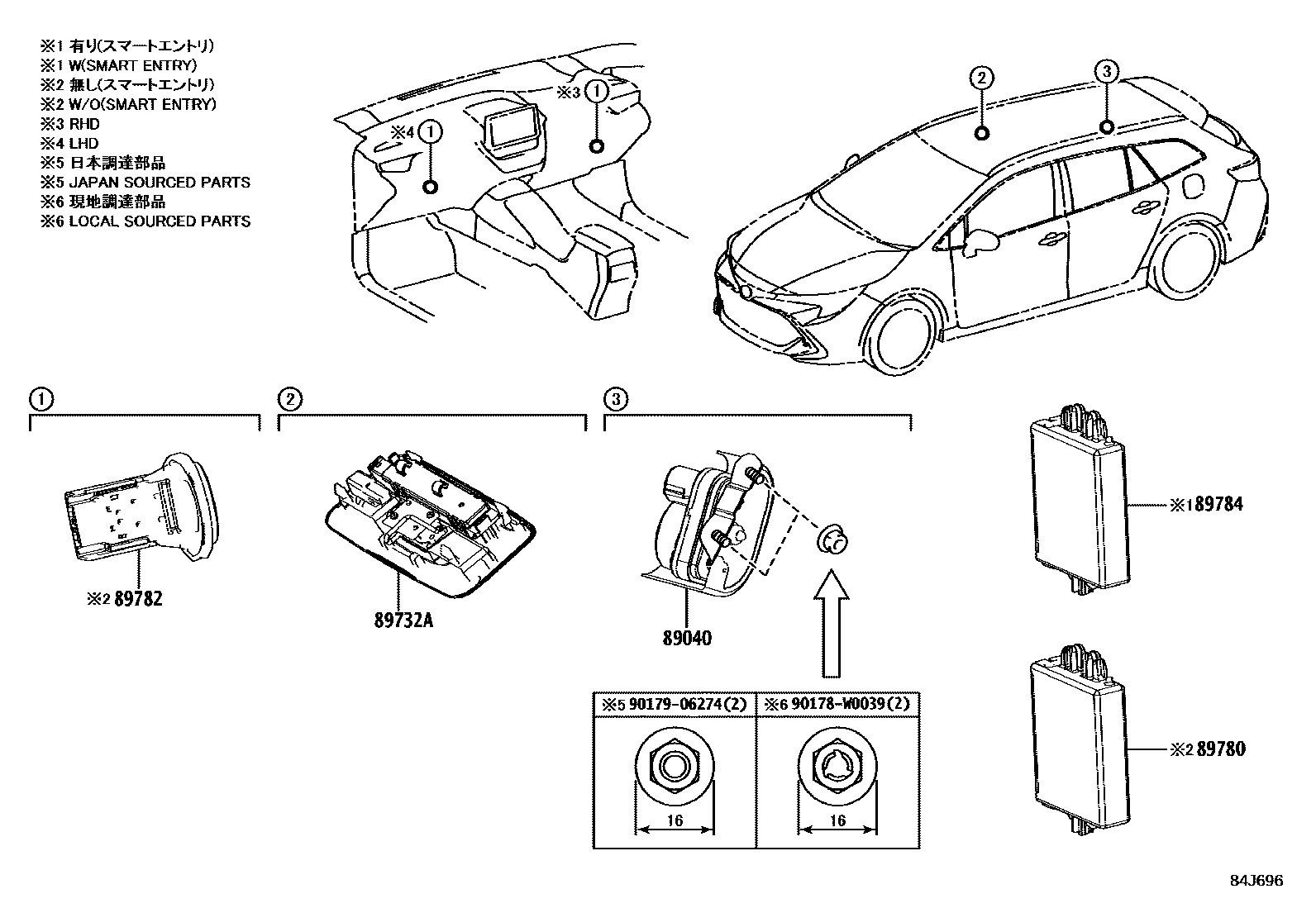

Toyota COROLLA (UKP) — ANTI-THEFT DEVICE

0001 1 0002 1

89040SIREN ASSY, THEFT WARNING

main89040-02040iMZEH12,ZWE211..RHD..HB201901

LIGHT GRADE

main89040-02040iMZEH19,ZWE219..RHD..HB202301

main89040-02050iMZEH19,ZWE219..RHD..WG202301

main89040-02050iMZEH12,ZWE211..RHD..WG201902

LIGHT GRADE

89732ASENSOR, THEFT WARNING ULTRASONIC

main897E0-12020-B0iMZEH12,ZWE211..RHD201901

LIGHT GRADE,COOL GRAY,TRIM1#

main897E0-12020-B0iMZEH12,ZWE211..RHD201901

COOL GRAY,TRIM1#

main897E0-12020-C0iMZEH12,ZWE211..RHD..(G,N)201901

BLACK,TRIM2#

main897E0-12020-C0iMZEH12,ZWE211..RHD..(G,N)201901

LIGHT GRADE,BLACK,TRIM2#

main897E0-16020-B0iMZEH19,ZWE219..RHD..(C,D,G,N,P)202301

COOL GRAY,TRIM22

main897E0-16020-C0iMZEH19,ZWE219..RHD..(C,D,G)202301

BLACK,TRIM21

main897E0-16020-C0iMZEH19,ZWE219..RHD..(N,P)202301

BLACK,TRIM2#

main897E0-16020-C0iMZEH19,ZWE219..RHD..(N,P)202301

BLACK,TRIM20,21

89780COMPUTER ASSY, TRANSPONDER KEY

main897H0-02010iNRE210..D,N201901-202208

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

sub897H0-02011

main897H0-02010iNRE210..D,N201901-202208

WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-FOR SMART(2)

sub897H0-02011

main897H0-02011iNRE210..D,N202208

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

89782COIL, TRANSPONDER KEY

main89782-02120iNRE210..D,N201901

WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)

89784COMPUTER, IMMOBILIZER CODE

main89784-02100iNRE210..G;MZEH12,ZWE211201901

main89784-02260iMZEH19,ZWE219..RHD202301-202502

main89784-02270iMZEH19,ZWE219..LHD202301-202502

90178W0039

main90178-W0039¥60

9017906274

main90179-06274¥70

7 parts on this diagram · 2 diagrams in section
