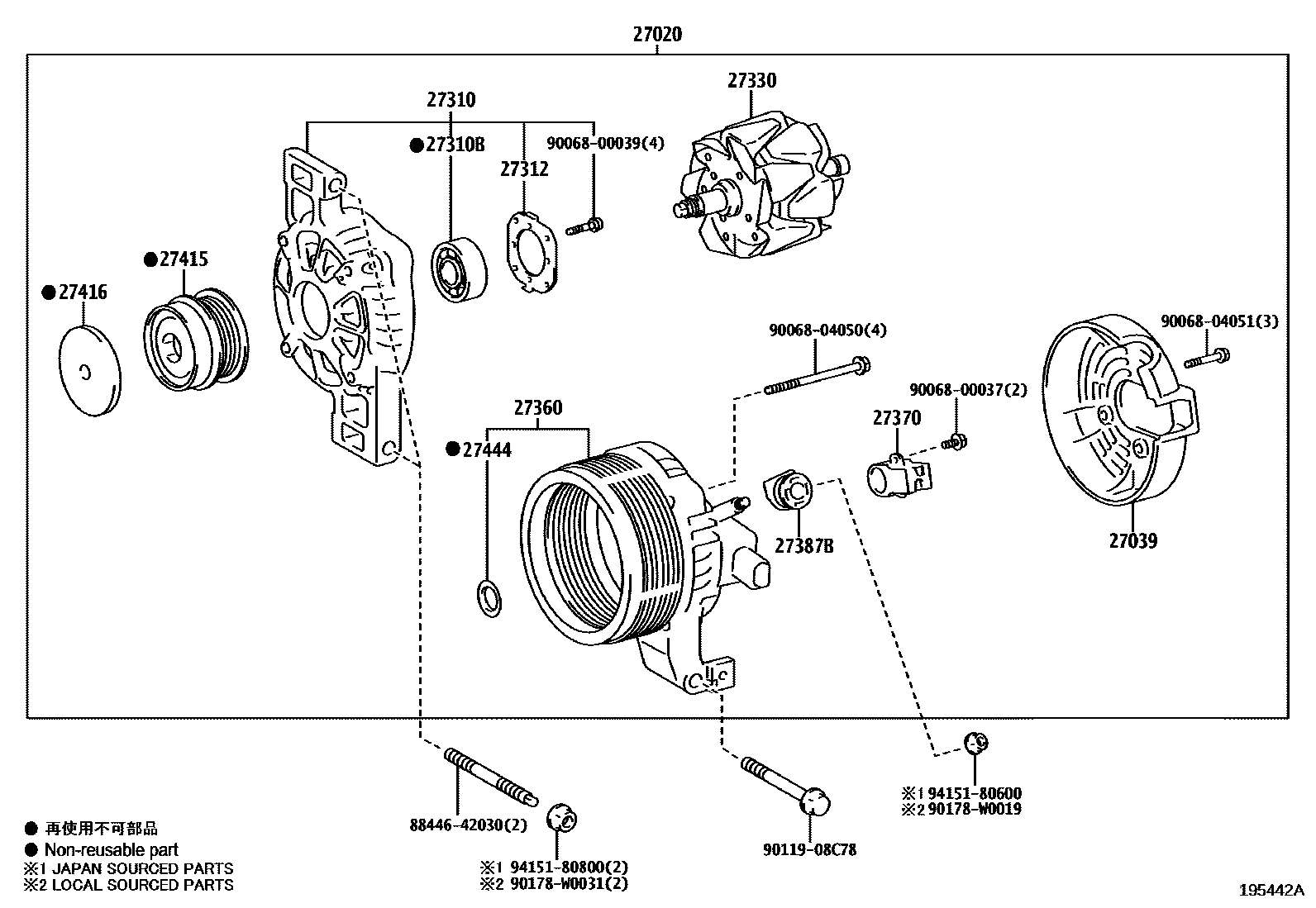

Toyota COROLLA (UKP) — ALTERNATOR

27020ALTERNATOR ASSY

main27060-0Y230i8NRFTS..NRE210201901

12V 115A

27039COVER, ALTERNATOR REAR END

main27039-0Y150i8NRFTS..NRE210¥0201901

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0Y210i8NRFTS..NRE210201901

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i8NRFTS..NRE210201901

27312PLATE, RETAINER

main27312-0T300i8NRFTS..NRE210201901

27330ROTOR ASSY, ALTERNATOR

main27330-0Y150i8NRFTS..NRE210¥19,500201901

27360COIL ASSY, ALTERNATOR

main27360-0Y210i8NRFTS..NRE210201901

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0Y150i8NRFTS..NRE210201901

sub27370-31220¥0

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0Y150i8NRFTS..NRE210¥0201901

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0Y030i8NRFTS..NRE210¥9,000201901

27416CAP, ALTERNATOR PULLEY

main27416-0Q010i8NRFTS..NRE210¥460201901

27444PACKING, ALTERNATOR BEARING COVER

main27444-0T300i8NRFTS..NRE210201901

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

9006800037

main90068-00037

9006800039

main90068-00039

9006804050

main90068-04050

9006804051

main90068-04051

9011908C78

main90119-08C78¥0

90178W0019

main90178-W0019¥110

90178W0031

main90178-W0031¥100

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

22 parts on this diagram · 1 diagram in section
