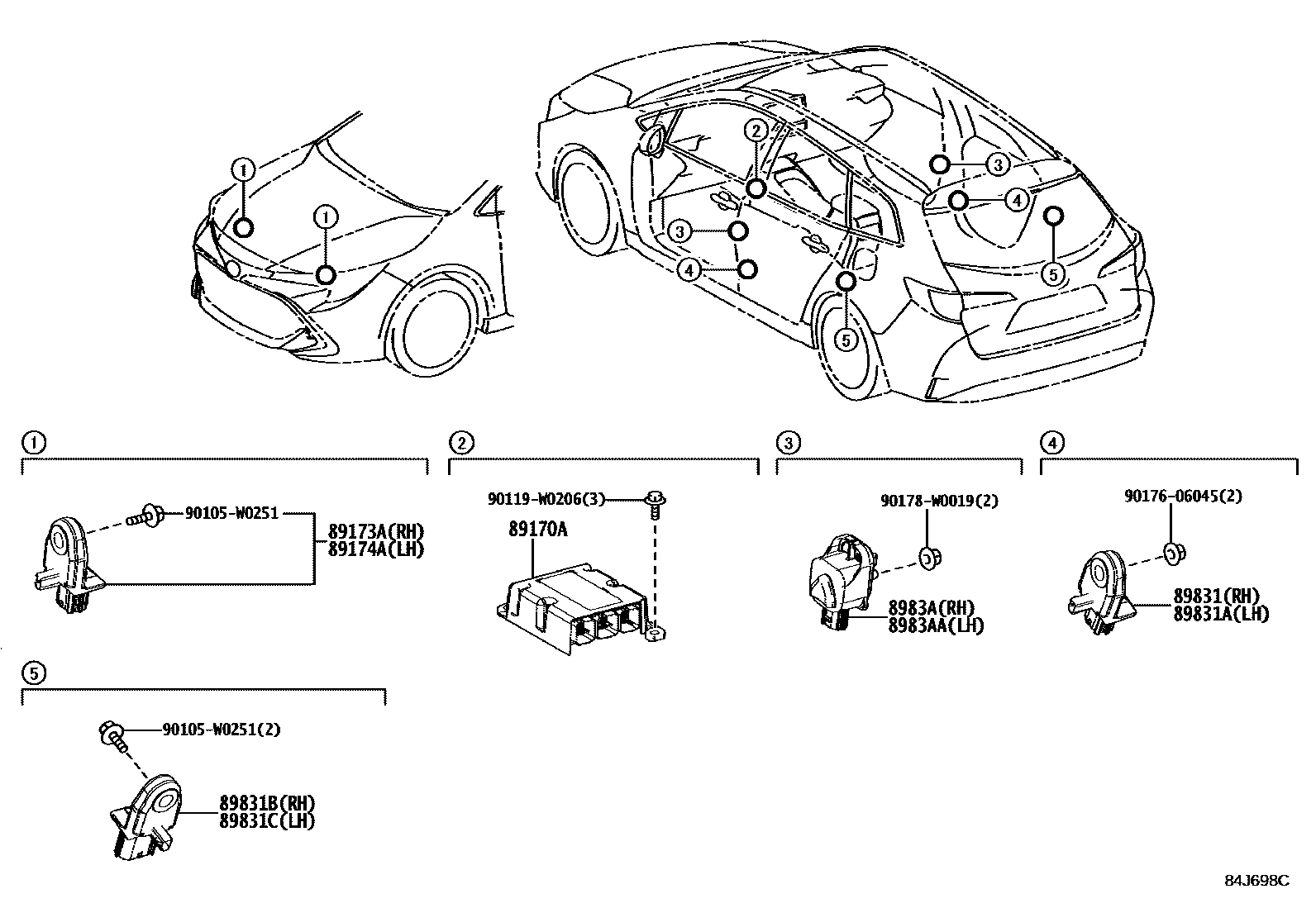

Toyota COROLLA (UKP) — AIR BAG

0001 1 0002 1 0003 1 0004 1

89170ACOMPUTER ASSY, AIRBAG

main89170-02S90iMZEH19,ZWE219202405

*614

main89170-02T00iNRE210201901

main89170-02T10iMZEH12,ZWE211201901

main89170-02W80iMZEH19,ZWE219202301-202405

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-09D10iMZEH12,NRE210,ZWE211201901

main89173-09D50iMZEH19,ZWE219202301-202405

main89173-09E10iMZEH19,ZWE219202405

89174ASENSOR, AIRBAG, FRONT LH

main89173-09D10iMZEH12,NRE210,ZWE211201901

main89173-09D50iMZEH19,ZWE219202301-202405

main89173-09E10iMZEH19,ZWE219202405

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-02320iMZEH12,NRE210,ZWE211201901

main89831-02360iMZEH19,ZWE219202301-202405

main89831-02370iMZEH19,ZWE219202405

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-02320iMZEH12,NRE210,ZWE211201901

main89831-02360iMZEH19,ZWE219202301-202405

main89831-02370iMZEH19,ZWE219202405

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-02310iMZEH12,NRE210,ZWE211201901

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-02310iMZEH12,NRE210,ZWE211201901

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-02020iMZEH12,NRE210,ZWE211201901-202004

sub8983A-02021

main8983A-02021iMZEH12,NRE210,ZWE211202005

main8983A-02080iMZEH19,ZWE219202301

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-02020iMZEH12,NRE210,ZWE211201901-202004

sub8983A-02021

main8983A-02021iMZEH12,NRE210,ZWE211202005

main8983A-02080iMZEH19,ZWE219202301

90105W0251

main90105-W0251

90119W0206

main90119-W0206

9017606045

main90176-06045¥80

90178W0019

main90178-W0019¥110

13 parts on this diagram · 4 diagrams in section
