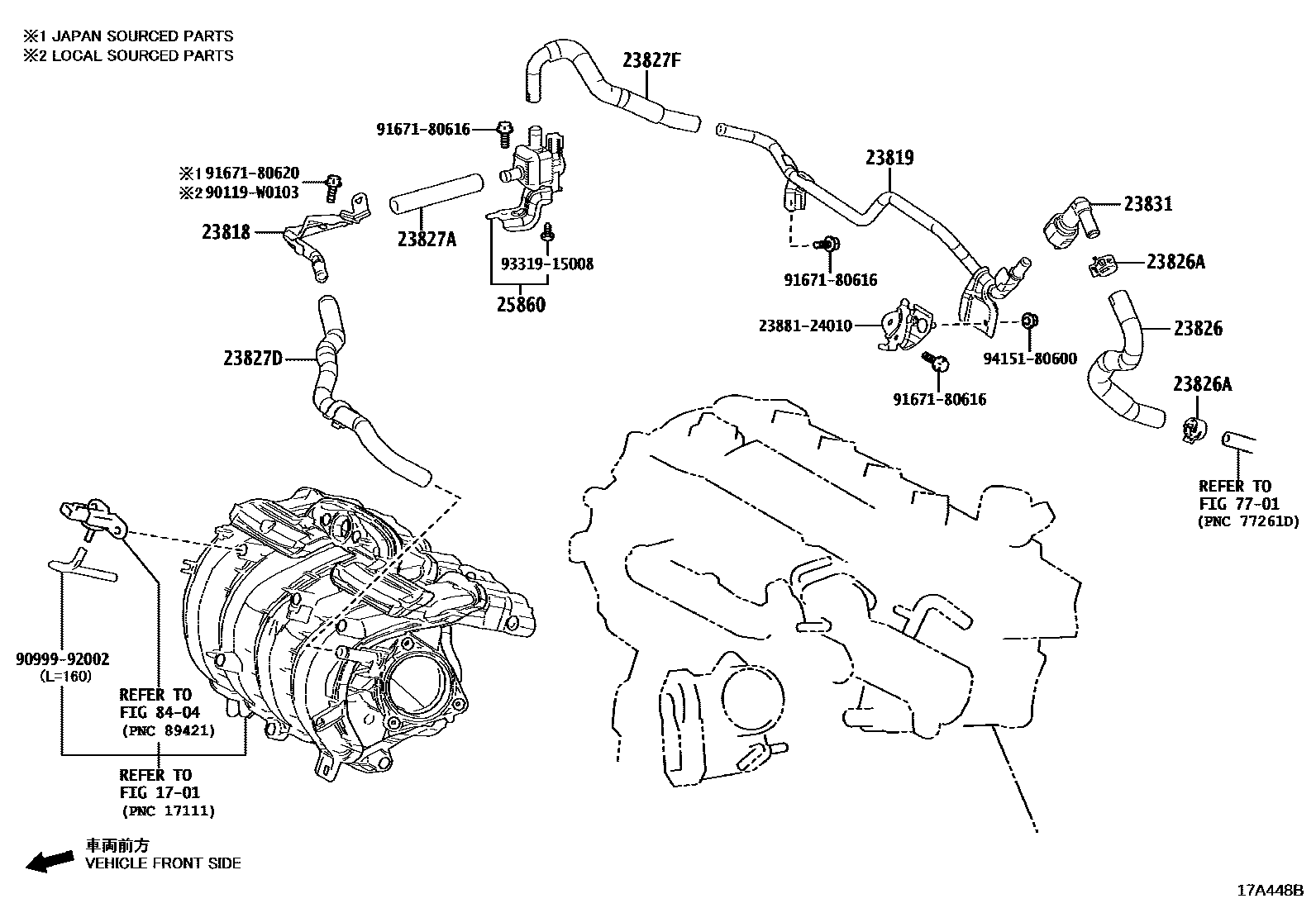

Toyota COROLLA (UKP) — VACUUM PIPING
1701
23818PIPE, FUEL VAPOR FEED
(L)
(J)
23819PIPE, FUEL VAPOR FEED, NO.2
23826HOSE, FUEL VAPOR FEED, NO.1
(L)
PAINTED=WHITE
(J)
(J)
(J)
PAINTED=RED
(L)
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
(J)
(L)
(L)
(J)
23827DHOSE, FUEL VAPOR FEED, NO.2
23827FHOSE, FUEL VAPOR FEED, NO.3
23831CONNECTOR, FUEL VAPOR FEED, NO.1
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
8404
2388124010BRACKET, FUEL HOSE
90119W0103
main90119-W0103
9099992002
9167180616
9167180620
9331915008
9415180600
19 parts on this diagram · 7 diagrams in section
