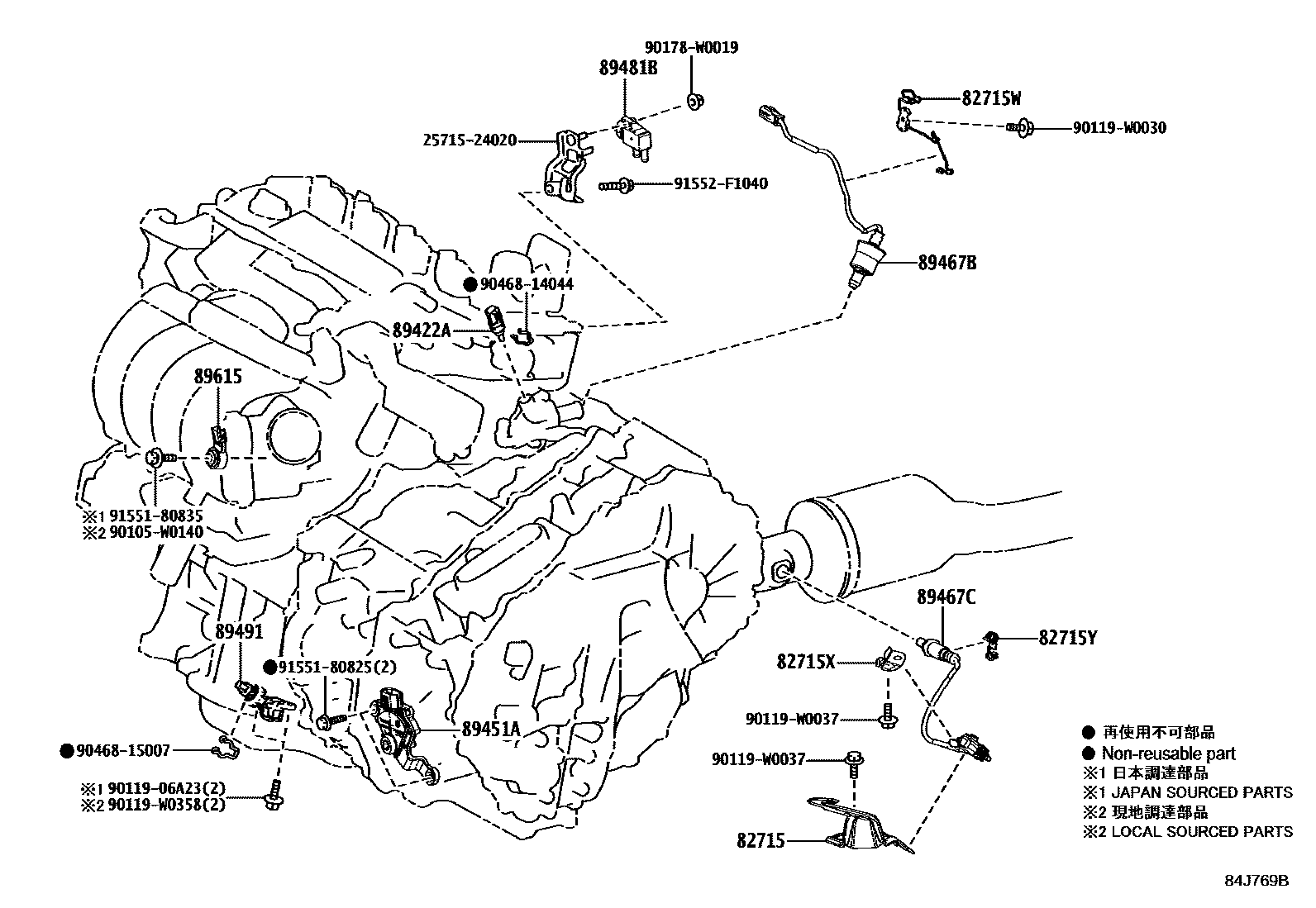

82715BRACKET,WIRING HARNESS CLAMP

main82715-02Z20iMZEH12,NRE210,ZWE211201901

main8946A-02050iMZEH19202301

82715WBRACKET, WIRING HARNESS CLAMP

main82715-F4030iNRE210¥900201901

main82715-F4190iZWE211201901-202009

main82729-20040iMZEH19,ZWE219¥220202301

main8946A-76010iMZEH12¥330201902

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-0Z160iMZEH19202301

(L)

main82715-12X50iMZEH19¥260202301

(J)

main82715-F4150iMZEH12,NRE210,ZWE211201901

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82729-20040iMZEH12,NRE210,ZWE211¥220201901

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEH12¥2,410201902

main89422-33040iMZEH19¥2,410202301

main89422-47010iNRE210¥2,410201901

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iMZEH12,ZWE211¥5,900201901

main89451-28020iMZEH19,ZWE219¥5,900202301

89467BSENSOR, AIR FUEL RATIO

main89467-02170iZWE219202301

main89467-02180iMZEH12201902

main89467-02200iZWE211201901

main89467-02210iNRE210201901

main89467-02310iMZEH19202301

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-02190iMZEH19202301

main89467-02190iMZEH12201902

main89467-02270iNRE210201901

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iZWE211..C,P;MZEH12,NRE210..EUR¥10,200201901

main89481-71010iZWE211..D,G,N¥10,200202010

main89481-71010iMZEH19,ZWE219¥10,200202301

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZWE211¥3,670202104-202204

sub89491-28091¥3,330

main89491-28091iZWE211¥3,330202205

main89491-28091iZWE219¥3,330202301

main89491-33051iMZEH12¥3,670201902-202204

sub89491-33052¥3,330

main89491-33052iMZEH19¥3,330202301

main89491-33052iMZEH12¥3,330202205

main89491-47011iZWE211¥3,670201901-202103

sub89491-28090¥3,670

main89491-50081iNRE210¥3,670201901-202204

sub89491-50082¥3,330

main89491-50082iNRE210¥3,330202205

89615SENSOR, KNOCK CONTROL

main89615-02020iMZEH12¥10,600201908

MARK 89615-02020

main89615-02020iZWE211¥10,600201901

MARK 89615-02020

main89615-02020iMZEH19,ZWE219¥10,600202301

(L)

main89615-20090iMZEH19,ZWE219¥2,370202301

(J)

main89615-20090iMZEH12¥2,370201908

MARK 89615-20090

main89615-20090iNRE210¥2,370201901

MARK 89615-20090

main89615-20090iMZEH12¥2,370201901-201908

2571524020BRACKET, EMISSION CONTROL VALVE

main25715-24020

90105W0140

main90105-W0140¥80

9011906A23

main90119-06A23¥60

90119W0030

main90119-W0030¥60

90119W0037

main90119-W0037¥60

90119W0358

main90119-W0358

90178W0019

main90178-W0019¥110

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180825

main91551-80825¥80

9155180835

main91551-80835¥80

91552F1040

main91552-F1040¥120

23 parts on this diagram · 38 diagrams in section
