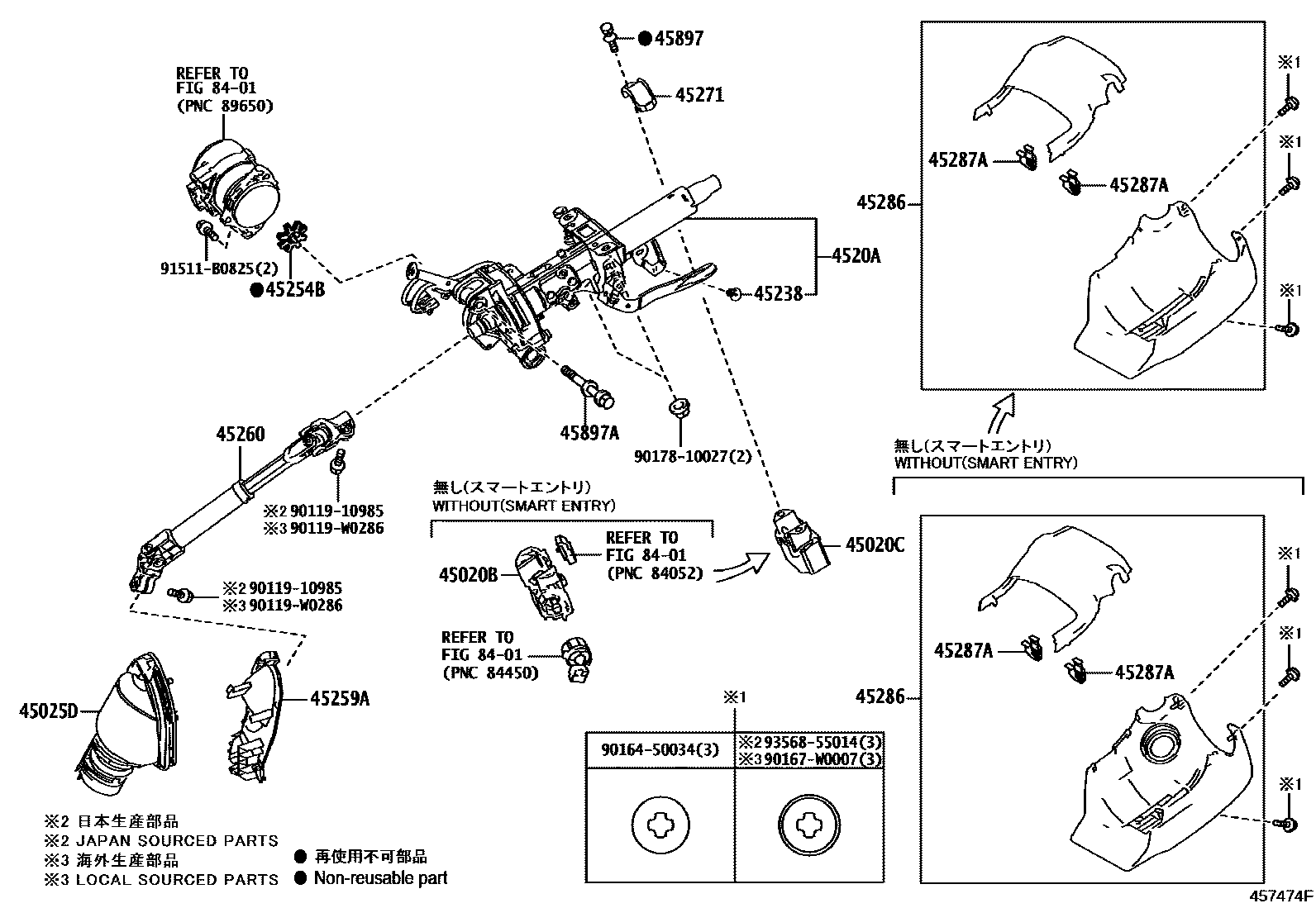

Toyota COROLLA (UKP) — STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
UNITED KINGDOM SPEC&LIGHT GRADE
UNITED KINGDOM SPEC&LIGHT GRADE&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)
UNITED KINGDOM SPEC&LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)
UNITED KINGDOM SPEC&LIGHT GRADE
UNITED KINGDOM SPEC&LIGHT GRADE&WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
UNITED KINGDOM SPEC&LIGHT GRADE&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
UNITED KINGDOM SPEC&LIGHT GRADE&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
BLACK,TRIM1#,2#
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER),BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
45287ACLIP(FOR STEERING COLUMN COVER)
45897BOLT, STEERING LOCK SET
UNITED KINGDOM SPEC&LIGHT GRADE&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
UNITED KINGDOM SPEC&LIGHT GRADE
(J)
WIRELESS DOOR LOCK-WITH & WITHOUT(ANSWER BACK BUZZER)
45897ABOLT, TILT STEERING PAWL SET
(J)
(L)
8401
9011910985
90119W0286
main90119-W0286
9016450034
90167W0007
9017810027
91511B0825
9356855014
21 parts on this diagram · 3 diagrams in section
