Toyota COROLLA (UKP) — SHORT BLOCK ASSEMBLY

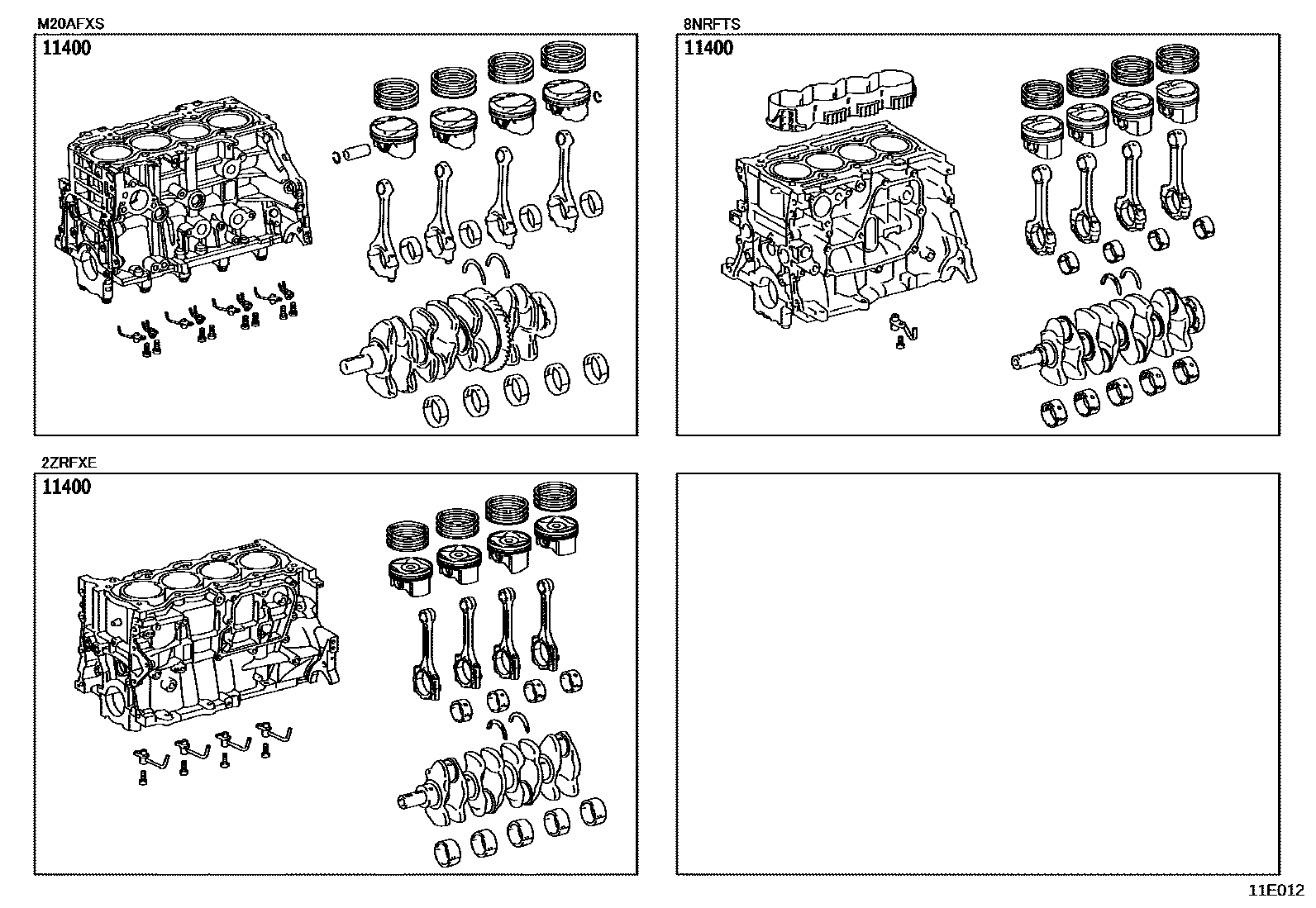

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0T440i201901-202010

main11400-0T540i202010-202110

main11400-0T570i202110

main11400-24050i201902

(J)

main11400-24100i¥232,000202301-202408

*132

main11400-2U030i¥231,000202409

*132

main11400-47230i¥180,000201901

main11400-F2010i201909-202301

(L)

main11400-F2180i202301

*664

1 parts on this diagram · 1 diagram in section
