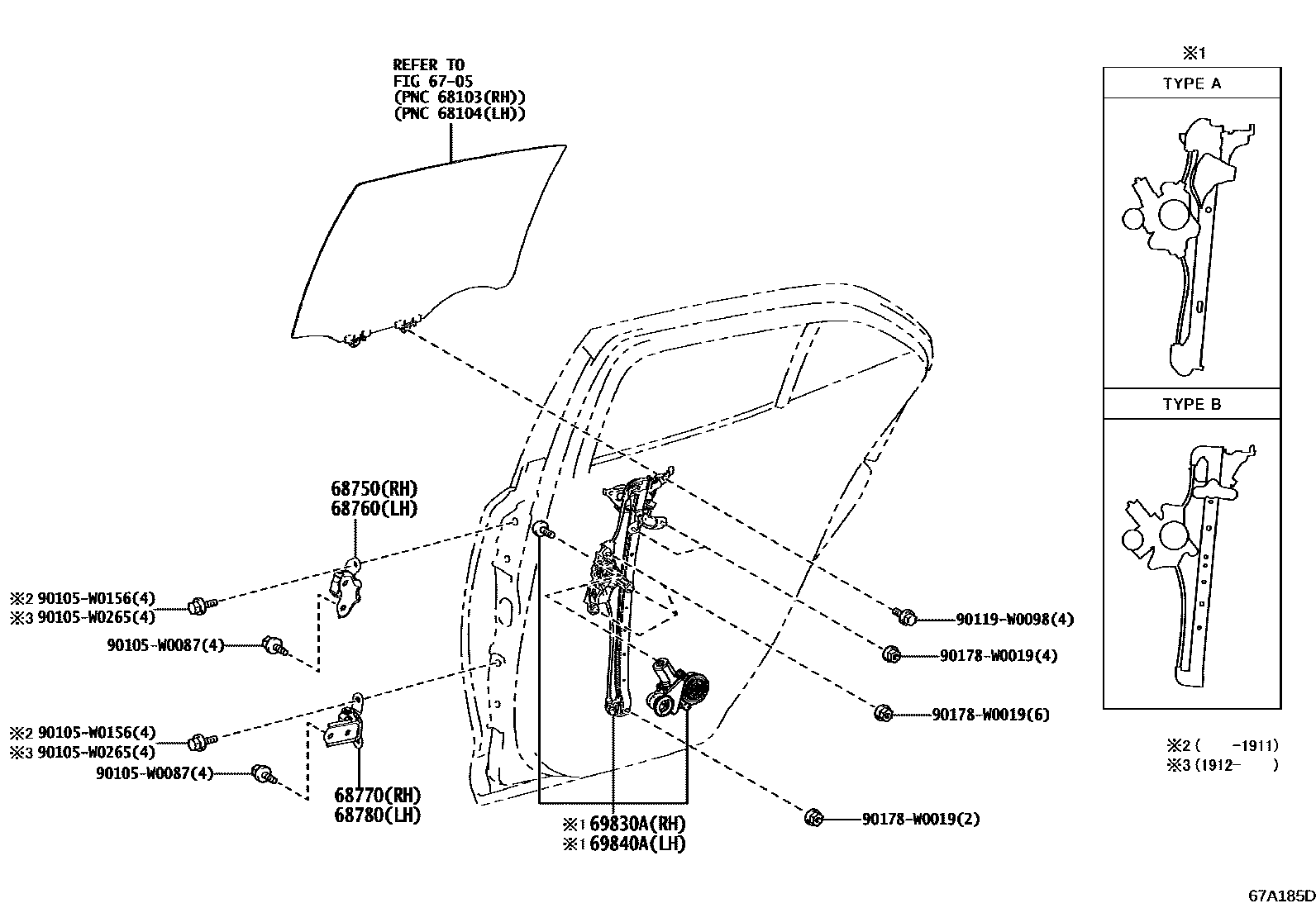

Toyota COROLLA (UKP) — REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0H010iMZEH19,ZWE219¥2,030201901

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0H010iMZEH12,NRE210,ZWE211¥2,030201901

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02080iMZEH12,NRE210,ZWE211201901

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02080iMZEH19,ZWE219201901

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02681iMZEH12,NRE210,ZWE211201901

TYPE A:REFER ILLUST.

main69830-02682iMZEH19,ZWE219202301

TYPE A:REFER ILLUST.

main69830-12561iMZEH12,NRE210,ZWE211201901-202008

TYPE B:REFER ILLUST.

sub69803-12212¥4,330

sub85710-12540¥20,900

sub90168-50040¥70

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02681iMZEH12,NRE210,ZWE211201901

TYPE A:REFER ILLUST.

main69840-02682iMZEH19,ZWE219202301

TYPE A:REFER ILLUST.

main69840-12561iMZEH12,NRE210,ZWE211201901-202008

TYPE B:REFER ILLUST.

sub69804-12212¥4,330

sub85720-12530¥20,900

sub90168-50040¥70

90105W0087

main90105-W0087¥80

90105W0156

main90105-W0156¥80

90105W0265

main90105-W0265

90119W0098

main90119-W0098¥60

90178W0019

main90178-W0019¥110

12 parts on this diagram · 2 diagrams in section
