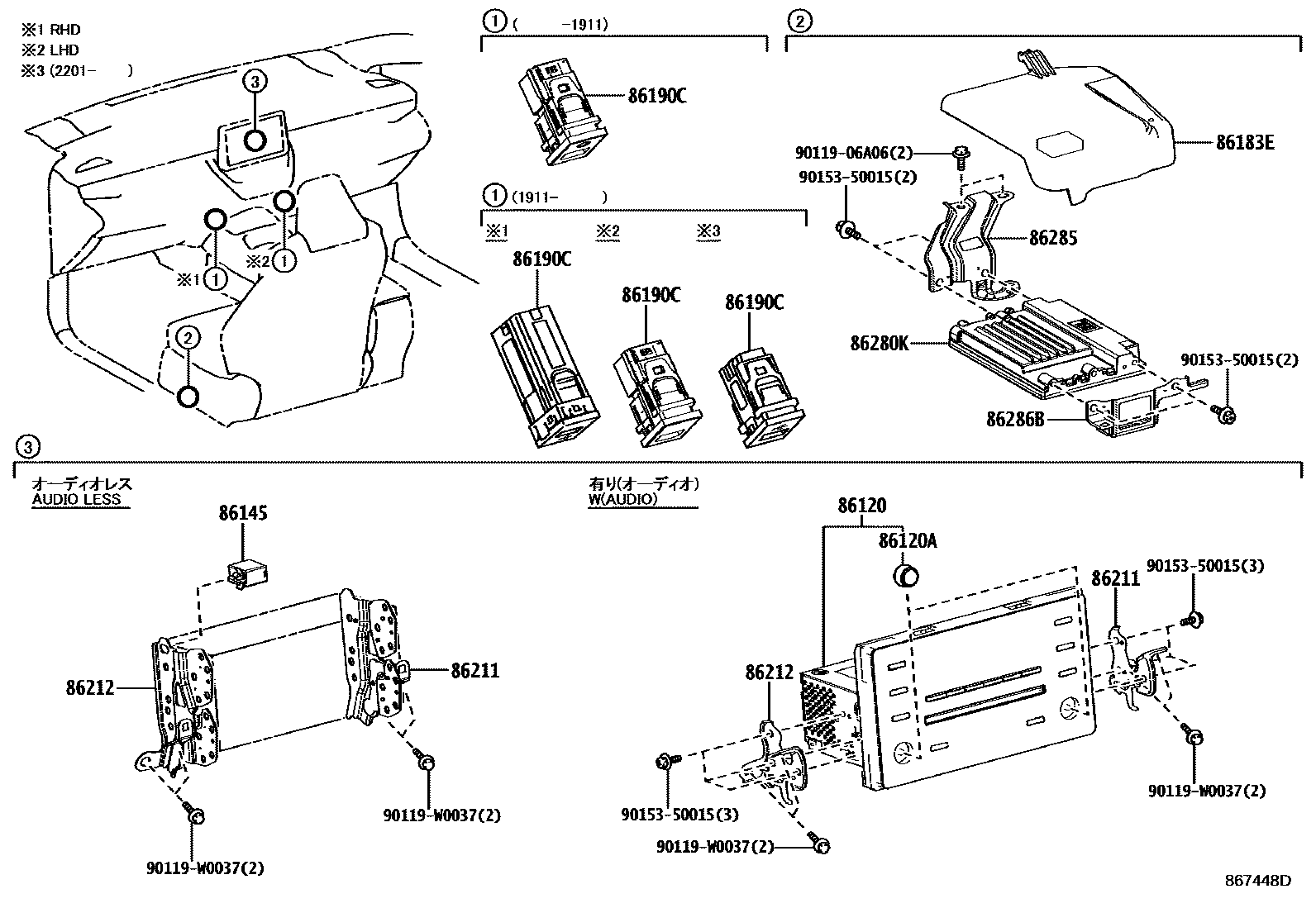

Toyota COROLLA (UKP) — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER 0004 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,ISRAEL SPEC&AUDIO-WITHOUT(SPEAKER)

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,WVTA SPEC(OUTSIDE EU)&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,WVTA SPEC(OUTSIDE EU)&AUDIO-WITHOUT(SPEAKER)

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,OUTSIDE EUROPE&ALGERIA SPEC&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,OUTSIDE EUROPE&BERMUDA SPEC&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,OUTSIDE EUROPE&MOROCCO SPEC&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,OUTSIDE EUROPE&EGYPT SPEC&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,OUTSIDE EUROPE&RUSSIA SPEC&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,OUTSIDE EUROPE&NEW CALEDONIA SPEC&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,OUTSIDE EUROPE&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,CHILE SPEC&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..(C,D)..EUR201901

DENSO TEN,ALGERIA SPEC&AUDIO-RADIO LESS 4SPEAKER

main86120-02F30iNRE210,ZWE211..LHD..D..EUR201901

DENSO TEN

main86120-02F30iNRE210,ZWE211..LHD..D..EUR201901

DENSO TEN,ISRAEL SPEC&AUDIO-RADIO LESS 4SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25305iNRE210..LHD..HB..D..EUR201901

OUTSIDE EUROPE&ALGERIA SPEC&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

ISRAEL SPEC&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

ISRAEL SPEC&AUDIO-WITHOUT(SPEAKER)

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

WVTA SPEC(OUTSIDE EU)&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

WVTA SPEC(OUTSIDE EU)&AUDIO-WITHOUT(SPEAKER)

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

OUTSIDE EUROPE&BERMUDA SPEC&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

OUTSIDE EUROPE&MOROCCO SPEC&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

OUTSIDE EUROPE&EGYPT SPEC&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

OUTSIDE EUROPE&RUSSIA SPEC&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

OUTSIDE EUROPE&NEW CALEDONIA SPEC&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

OUTSIDE EUROPE&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

CHILE SPEC&AUDIO-RADIO LESS 4SPEAKER

main90011-25305iNRE210,ZWE211..(C,D)..EUR201901

ALGERIA SPEC&AUDIO-RADIO LESS 4SPEAKER

86145CONNECTOR, ANTENNA MALE

main86145-52010iNRE210..GEN¥170201901

AUDIO-RADIO LESS 4SPEAKER

main86145-52010iNRE210..GEN¥170201901

AUDIO-RADIO LESS 6SPEAKER

main86145-52010iNRE210..GEN¥170201901

AUDIO-WITHOUT(SPEAKER)

86183ECOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02110iMZEH19,ZWE219202301

main86190-12070iMZEH12,ZWE211..LHD..G¥3,780201911-202201

AUDIO-RADIO LESS 6SPEAKER

main86190-12070iNRE210..LHD..(G,N);MZEH12,ZWE211..LHD..N;NRE210,ZWE211..(C,D)..EUR¥3,780201911

main86190-12070iMZEH12..LHD..G¥3,780201911-202201

AUDIO-WITHOUT(SPEAKER)

main86190-33060iMZEH12,NRE210,ZWE211..G,N¥7,200201901-201911

AUDIO-WITHOUT(SPEAKER)

main86190-33060iMZEH12,NRE210,ZWE211..EUR¥7,200201901-201911

AUDIO-RADIO LESS 4SPEAKER

main86190-33060iMZEH12,NRE210,ZWE211..EUR¥7,200201901-201911

AUDIO-RADIO LESS 6SPEAKER

main86190-34010iMZEH12,ZWE211..N¥3,780202201

AUDIO-8INCH & DAB & JBL & 8SPEAKER 21MM

main86190-34010iMZEH12,ZWE211..G¥3,780202201

AUDIO-8INCH & DAB & 6SPEAKER 21MM

main86190-34010iMZEH12,ZWE211..G¥3,780202201

AUDIO-8INCH DAB JBL 8SPEAKER 21MM

main86190-F4040iMZEH12,NRE210..RHD..(G,N)201911-202008

AUDIO-RADIO LESS 6SPEAKER

sub86190-F4041

main86190-F4040iMZEH12,NRE210..RHD..(G,N)201911-202008

AUDIO-8INCH & 6SPEAKER

sub86190-F4041

main86190-F4040iNRE210,ZWE211..RHD..D201911-202008

AUDIO-WITHOUT(SPEAKER)

sub86190-F4041

main86190-F4040iNRE210,ZWE211..RHD..D201911-202008

AUDIO-8INCH & DAB & 6SPEAKER

sub86190-F4041

main86190-F4041iMZEH12,ZWE211..RHD..G202009-202201

AUDIO-RADIO LESS 6SPEAKER

main86190-F4041iMZEH12,ZWE211..RHD..G202009-202201

AUDIO-WITHOUT(SPEAKER)

main86190-F4041iNRE210..RHD..(G,N);MZEH12,ZWE211..RHD..(N,P)202009

AUDIO-8INCH & 6SPEAKER

main86190-F4041iNRE210..RHD..(G,N);MZEH12,ZWE211..RHD..(N,P)202009

AUDIO-8INCH & DAB & 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-02550iMZEH12,NRE210,ZWE211..EUR201901

main86211-02560iNRE210..GEN201901

AUDIO-RADIO LESS 6SPEAKER

main86211-02560iNRE210..GEN201901

AUDIO-WITHOUT(SPEAKER)

main86211-02560iMZEH12,NRE210..EUR201901

AUDIO-RADIO LESS 4SPEAKER

86212BRACKET, RADIO, NO.2

main86212-02550iMZEH19,ZWE219201901

main86212-02560iMZEH12,NRE210,ZWE211..G,N201901

AUDIO-RADIO LESS 6SPEAKER

main86212-02560iMZEH12,NRE210,ZWE211..G,N201901

AUDIO-RADIO LESS 4SPEAKER

main86212-02560iMZEH12,NRE210,ZWE211..G,N201901

AUDIO-WITHOUT(SPEAKER)

86280KAMPLIFIER ASSY, STEREO COMPONENT

86285BRACKET, AMPLIFIER, NO.1

main86285-F4010

86286BBRACKET, AMPLIFIER, NO.2

9011906A06

main90119-06A06¥60

90119W0037

main90119-W0037¥60

9015350015

main90153-50015¥60

13 parts on this diagram · 4 diagrams in section
