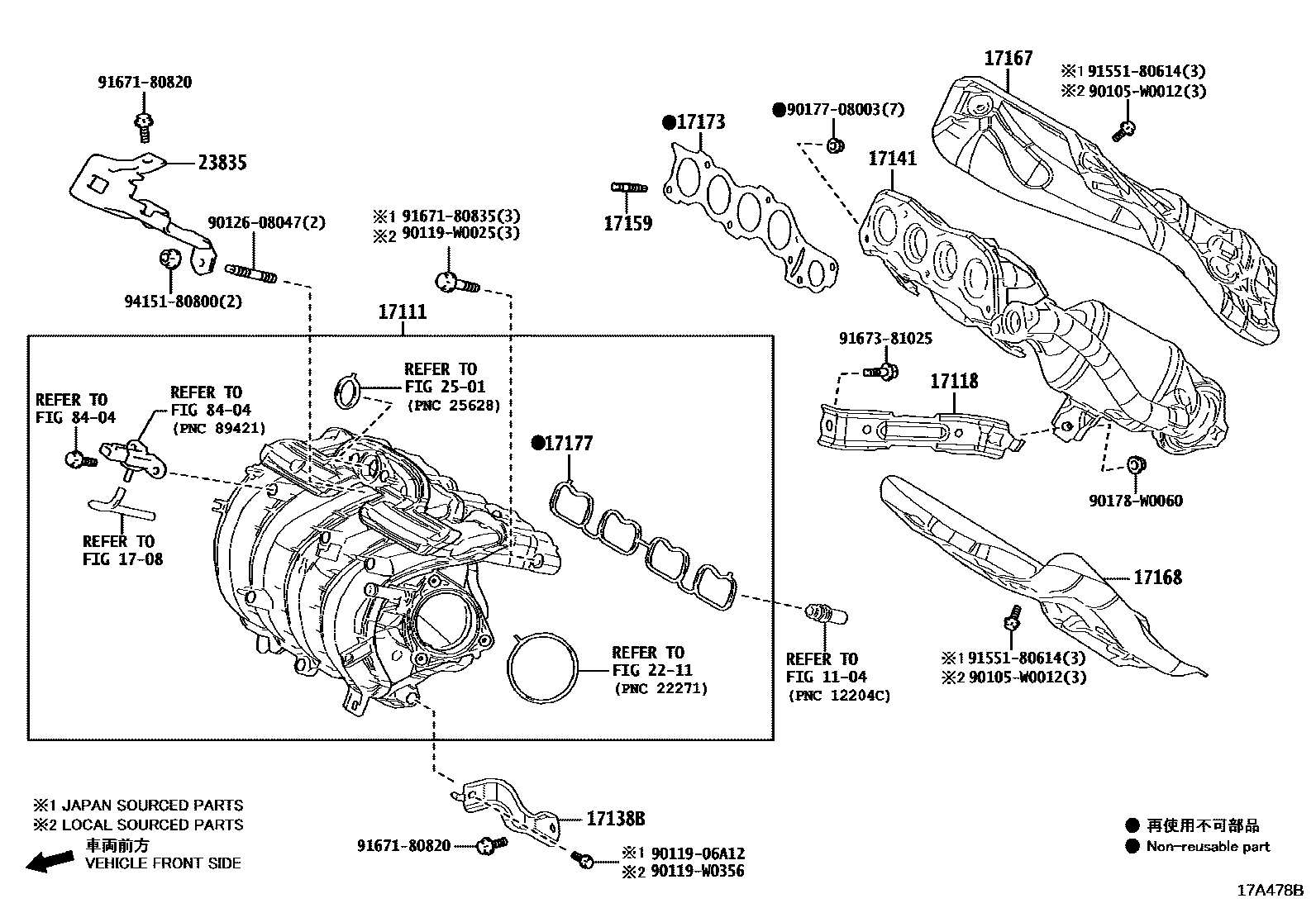

Toyota COROLLA (UKP) — MANIFOLD
1104
1708
17111MANIFOLD, INTAKE
(L)
(L)
(L)
*132
*132
(J)
(J)
(J)
*613
*613
17118STAY, MANIFOLD
(L)
(J)
(J)
(J)
(L)
(L)
17138BSTAY, INTAKE MANIFOLD
*132
*132
*613
*613
17141MANIFOLD, EXHAUST
*114=TOYOTA/0T140/Y
*114=TOYOTA/0T180/Y,(L)
*114=TOYOTA/0T220/Y,(L)
*114=TOYOTA/0T250/Y,(L)
*114=*588,(J)
*114=*710
*114=*690,(J)
*114=TOYOTA/AT37310Y,(J)
*114=*757,(J)
*114=TOYOTA/F2050/Y,(L)
*114=TOYOTA/F2210/Y
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.1
*132,*613
NO.2
*132
*613
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
sub17167-24061
sub17167-24061
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(J)
(J)
(L)
(L)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(L)
(J)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*132
*132
*613
*613
(L)
(J)
2211
23835GUARD, FUEL DELIVERY, NO.2
*132
*132
*613
*613
2501
8404
90105W0012
9011906A12
90119W0025
main90119-W0025
90119W0356
main90119-W0356
9012608047
9017708003
90178W0060
9155180614
9167180820
9167180835
9167381025
9415180800
27 parts on this diagram · 6 diagrams in section
