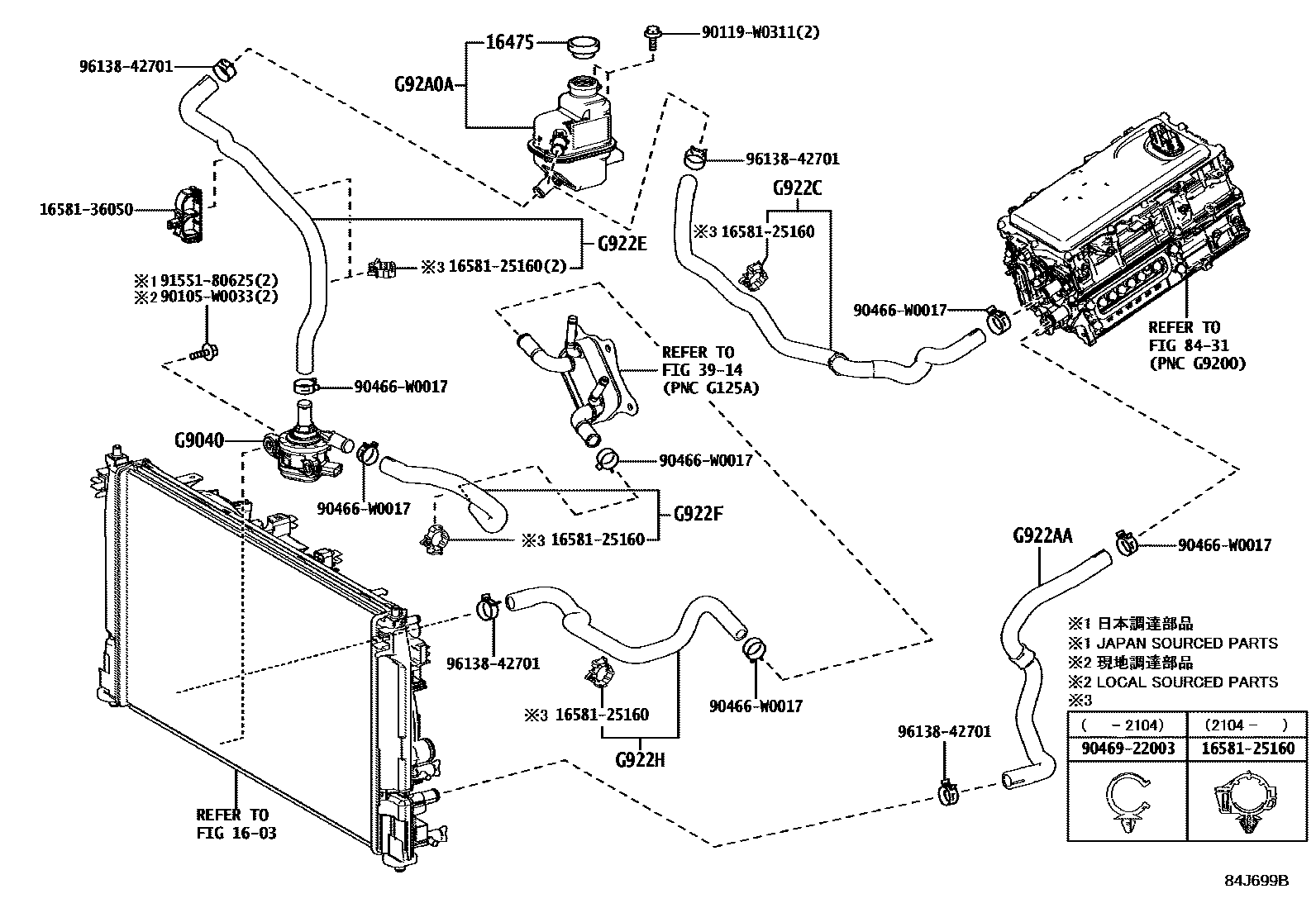

Toyota COROLLA (UKP) — INVERTER COOLING

0001 1 0002 1 0003 1 0004 1

1603

16475CAP, RESERVE TANK

main16475-28140iM20AFXS,2ZRFXE..MZEH12,ZWE211¥1,200201901

main16475-28140iM20AFXS,2ZRFXE..MZEH19,ZWE219¥1,200202301

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iMZEH12201902

mainG904047020iMZEH19,ZWE219202301

mainG904047040iZWE211201901

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A02040iMZEH12201902

mainG922A02110iMZEH19,ZWE219202301

mainG922AF4010iZWE211201901

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C02040iMZEH12201902

mainG922C02080iZWE219202301

mainG922C02110iMZEH19202301

mainG922CF4010iZWE211201901

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E02040iMZEH12201902

mainG922E02080iZWE219202301

mainG922E02110iMZEH19202301

mainG922EF4010iZWE211201901

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F02040iMZEH12201902

mainG922FF4010iZWE211201901

G922HHOSE, HYBRID RADIATOR INLET

mainG922H02040iMZEH12201902

mainG922H02080iMZEH19,ZWE219202301

mainG922HF4010iZWE211201901

G92A0ATANK ASSY, INVERTER RESERVE

mainG910G02170iMZEH12202210

mainG91H002120iZWE211201901

mainG91H002130iMZEH12201902-202209

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

1658136050CLAMP, HOSE(FOR WATER HOSE)

main16581-36050¥670

90105W0033

main90105-W0033¥60

90119W0311

main90119-W0311

90466W0017

main90466-W0017

9046922003

main90469-22003¥110

9155180625

main91551-80625¥60

9613842701

main96138-42701¥200

19 parts on this diagram · 4 diagrams in section
