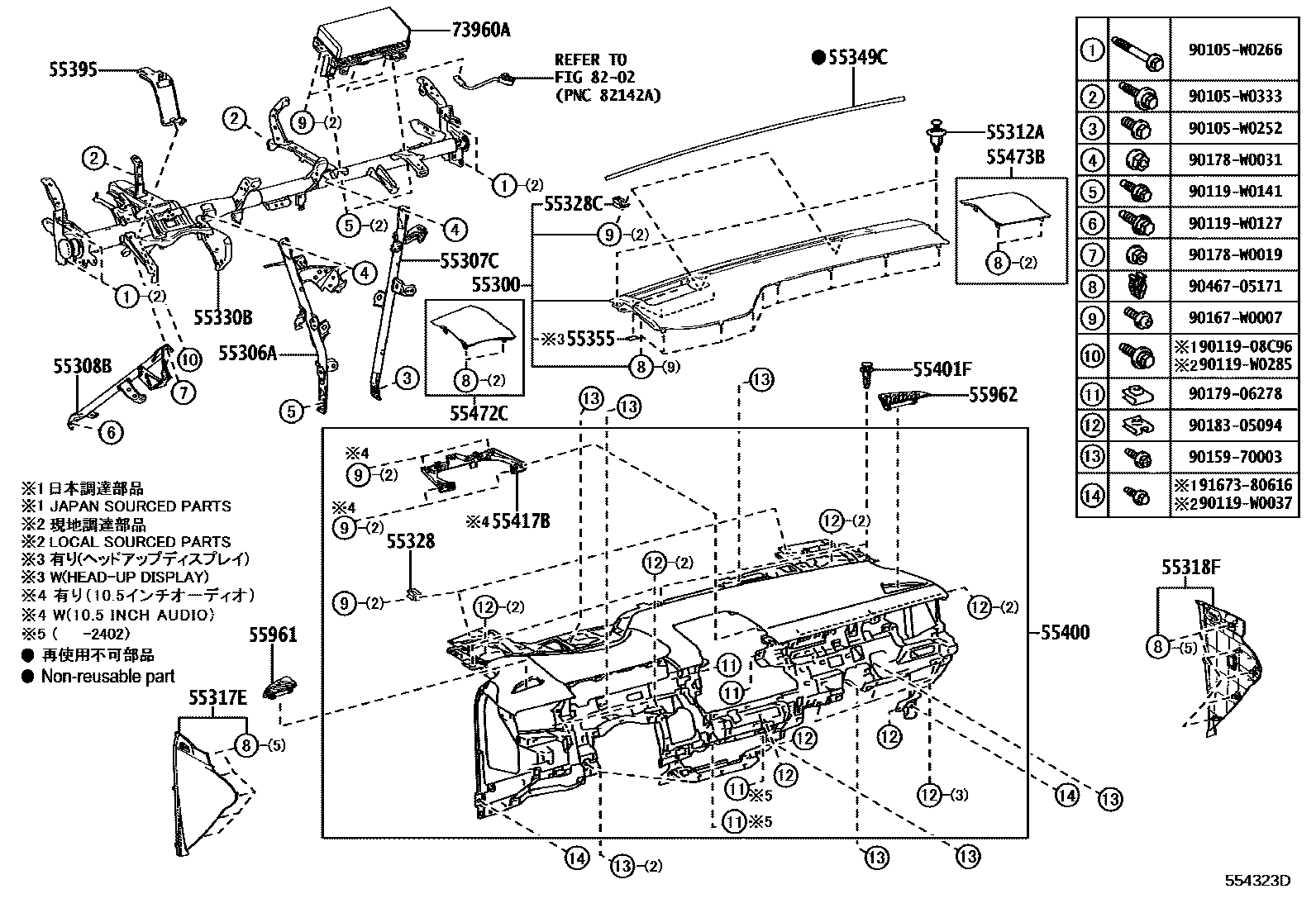

Toyota COROLLA (UKP) — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-02030-C0iMZEH12,NRE210,ZWE211..LHD201901

BLACK,TRIM1#,2#

main55300-02030-C0iMZEH19,ZWE219..LHD202301-202312

BLACK,TRIM2#

main55300-02031-C0iMZEH19,ZWE219..LHD202401

BLACK,TRIM2#

main55300-02050-C0iMZEH12,NRE210,ZWE211..RHD201901

BLACK,TRIM1#,2#

main55300-02050-C0iMZEH19,ZWE219..RHD202301-202312

BLACK,TRIM2#

main55300-02051-C0iMZEH19,ZWE219..RHD202401

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02520iMZEH12,NRE210,ZWE211..LHD201901

main55306-02530iNRE210..RHD..6F201901

main55306-02780iMZEH12,NRE210,ZWE211..RHD..CVT201901

main55306-02830iMZEH19,ZWE219..RHD202301

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02510iMZEH19,ZWE219..LHD201901

main55307-02520iMZEH12,NRE210,ZWE211..RHD201901

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-02150iMZEH19,ZWE219..LHD201901

main55308-02160iMZEH19,ZWE219..RHD201901

55312ACLIP, INSTRUMENT PANEL

main90467-07217iMZEH12,NRE210,ZWE211¥80201901

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-02620-C0iMZEH19,ZWE219..RHD202301

BLACK,TRIM2#

main55317-02620-C0iMZEH12,NRE210,ZWE211..RHD201901

BLACK,TRIM1#,2#

main55317-02690-C0iMZEH12,NRE210,ZWE211..LHD201901

BLACK,TRIM1#,2#

main55317-02690-C0iMZEH19,ZWE219..LHD202301

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-02320-C0iMZEH12,NRE210,ZWE211..RHD201901

BLACK,TRIM1#,2#

main55318-02320-C0iMZEH19,ZWE219..RHD202301

BLACK,TRIM2#

main55318-02330-C0iMZEH19,ZWE219..LHD202301

BLACK,TRIM2#

main55318-02330-C0iMZEH12,NRE210,ZWE211..LHD201901

BLACK,TRIM1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-02890iMZEH12,NRE210,ZWE211201901-202009

NATURAL

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-02840iMZEH12,NRE210,ZWE211201901-202009

PINK

main55328-12440iMZEH12,NRE210,ZWE211¥370202009

YELLOW

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02B90iNRE210..LHD..6F201901-202009

main55330-02B91iNRE210..LHD..6F202010

main55330-02C00iMZEH12,NRE210,ZWE211..LHD..CVT201901-202009

main55330-02C01iMZEH12,NRE210,ZWE211..LHD..CVT202010

main55330-02C10iMZEH12,NRE210,ZWE211..RHD201901-202009

sub55330-02C11

main55330-02C11iMZEH12,NRE210,ZWE211..RHD202010

55349CCUSHION, INSTRUMENT PANEL

main55349-02280iMZEH12,NRE210,ZWE211201901

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02610

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-02050iMZEH19,ZWE219..LHD201901

main55395-02060iMZEH19,ZWE219..RHD201901

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-02120-C0iMZEH12,NRE210,ZWE211..LHD..(D,N)..EUR201901-202009

BLACK,TRIM1#,2#

main55400-02130-C1iMZEH12,NRE210,ZWE211..LHD..G201901-202009

BLACK/DK.ROSE,TRIM20

main55400-02130-C2iMZEH12,NRE210,ZWE211..LHD..G201901-202009

BLACK/GRAY,TRIM1#,20

main55400-02130-C4iMZEH12,ZWE211..LHD..G201911-202009

BLACK,TRIM20,21

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

AUDIO-8INCH & JBL & 8SPEAKER,BLACK,TRIM1#,2#

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

AUDIO-8INCH & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

AUDIO-8INCH & NAVI & JBL & 8SPEAKER,BLACK,TRIM1#,2#

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER,BLACK,TRIM1#,2#

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

BLACK,TRIM1#,2#

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2#

main55400-02140-C0iMZEH12..LHD..N;ZWE211..LHD..HB..N201901-202009

AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2#

main55400-02160-C0iMZEH12,NRE210,ZWE211..RHD..(D,N)201901-202009

BLACK,TRIM1#,2#

main55400-02170-C2iNRE210..RHD..G201901-202009

BLACK/DK.ROSE,TRIM2#

main55400-02170-C2iMZEH12,ZWE211..RHD..G201911-202009

BLACK/DK.ROSE,TRIM20

main55400-02170-C3iMZEH12,NRE210,ZWE211..RHD..G201901-202009

BLACK/GRAY,TRIM1#

main55400-02170-C6iMZEH12,ZWE211..RHD..G201911-202009

BLACK,TRIM20,21

main55400-02901-C0iMZEH12,NRE210,ZWE211..LHD..(C,D,N)..EUR202009

BLACK,TRIM1#,2#

main55400-02901-C4iMZEH19,ZWE219..LHD..(N,S)202301

BLACK,TRIM2#

main55400-02901-C4iMZEH19,ZWE219..LHD..(N,S)202301

AUDIO-8INCH & 6SPEAKER,BLACK,TRIM2#

main55400-02903-C1iMZEH12,NRE210,ZWE211..LHD..G202009

BLACK/DK.ROSE,TRIM20

main55400-02903-C2iMZEH12,NRE210,ZWE211..LHD..G202009

BLACK/GRAY,TRIM1#,20

main55400-02903-C3iMZEH12,ZWE211..LHD..G202011

BLACK,TRIM20,21

main55400-02905-C0iNRE210..LHD..N202009

AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2#

main55400-02905-C0iNRE210..GEN202009

BLACK,TRIM1#,2#

main55400-02905-C0iNRE210..GEN202009

LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#

main55400-02905-C0iNRE210..GEN202009

LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2#

main55400-02905-C0iNRE210..GEN202009

AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2#

main55400-02905-C4iMZEH19,ZWE219..LHD..(N,S)202301

BLACK,TRIM2#

main55400-02907-C5iMZEH19,ZWE219..LHD..G202301

BLACK,TRIM2#

main55400-02909-C0iMZEH12,NRE210,ZWE211..RHD..(C,D,N,P)202009

BLACK,TRIM1#,2#

main55400-02909-C4iMZEH19,ZWE219..RHD..(N,S)202301

BLACK,TRIM2#

main55400-02909-C4iZWE219..RHD..(C,D,P)202301

AUDIO-8INCH & 6SPEAKER,BLACK,TRIM2#

main55400-02911-C0iNRE210..RHD..G202009-202011

BLACK/DK.ROSE,TRIM2#

main55400-02911-C0iMZEH12,ZWE211..RHD..G202011

BLACK/DK.ROSE,TRIM20

main55400-02911-C1iMZEH12,NRE210,ZWE211..RHD..G202009

BLACK/GRAY,TRIM1#

main55400-02911-C2iMZEH12,ZWE211..RHD..G202011

BLACK,TRIM21

main55400-02913-C4iMZEH19,ZWE219..RHD..(N,S)202301

BLACK,TRIM2#

main55400-02915-C5iMZEH19,ZWE219..RHD..G202301

BLACK,TRIM2#

55401FCLIP(FOR SAFETY PAD)

main52161-02030iMZEH12,NRE210,ZWE211¥140201901

55417BRETAINER, RADIO TUNER FINISH

main55417-02040iNRE210..G,N;MZEH12,ZWE211..N201901

LIGHT GRADE&SEAT COVER MATERIAL-FABRIC&AUDIO-WITHOUT(SPEAKER)

main55417-02040iNRE210..G,N;MZEH12,ZWE211..N201901

LIGHT GRADE&AUDIO-WITHOUT(SPEAKER)

main55417-02040iNRE210..G,N;MZEH12,ZWE211..N201901

AUDIO-RADIO LESS 4SPEAKER

main55417-02040iNRE210..G,N;MZEH12,ZWE211..N201901

AUDIO-RADIO LESS 6SPEAKER

main55417-02040iMZEH19,ZWE219..G,N,S202301

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-02080-C0iMZEH12,NRE210,ZWE211..LHD201901

BLACK,TRIM1#,2#

main55472-02080-C0iMZEH19,ZWE219..LHD202301

BLACK,TRIM2#

main55472-02090-C0iMZEH19,ZWE219..RHD202301

BLACK,TRIM2#

main55472-02090-C0iMZEH12,NRE210,ZWE211..RHD201901

BLACK,TRIM1#,2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-02060-C0iNRE210..GEN201901

DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM1#,2#

main55473-02060-C0iNRE210..LHD..EUR;MZEH12,ZWE211..LHD..(C,D,N)201901

BLACK,TRIM1#,2#

main55473-02180-C0iMZEH12,NRE210,ZWE211..LHD..EUR201901

BLACK,TRIM1#,2#

main55473-02180-C0iMZEH19,ZWE219..LHD202301

BLACK,TRIM2#

main55473-02190-C0iMZEH19,ZWE219..RHD202301

BLACK,TRIM2#

main55473-02190-C0iMZEH12,NRE210,ZWE211..RHD201901

BLACK,TRIM1#,2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02300-C0iMZEH19,ZWE219..LHD202301

BLACK,TRIM2#

main55961-02300-C0iMZEH12,NRE210,ZWE211..LHD201901

BLACK,TRIM1#,2#

main55961-02310-C0iMZEH12,NRE210,ZWE211..RHD201901

BLACK,TRIM1#,2#

main55961-02310-C0iMZEH19,ZWE219..RHD202301

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02260-C0iMZEH12,NRE210,ZWE211..LHD201901

BLACK,TRIM1#,2#

main55962-02260-C0iMZEH19,ZWE219..LHD202301

BLACK,TRIM2#

main55962-02270-C0iMZEH12,NRE210,ZWE211..RHD201901

BLACK,TRIM1#,2#

main55962-02270-C0iMZEH19,ZWE219..RHD202301

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02380iMZEH19,ZWE219201901

8202

90105W0252

main90105-W0252

90105W0266

main90105-W0266

90105W0333

main90105-W0333

9011908C96

main90119-08C96¥80

90119W0037

main90119-W0037¥60

90119W0127

main90119-W0127¥80

90119W0141

main90119-W0141

90119W0285

main90119-W0285

9015970003

main90159-70003¥60

90167W0007

main90167-W0007¥110

90178W0019

main90178-W0019¥110

90178W0031

main90178-W0031¥100

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

38 parts on this diagram · 8 diagrams in section
