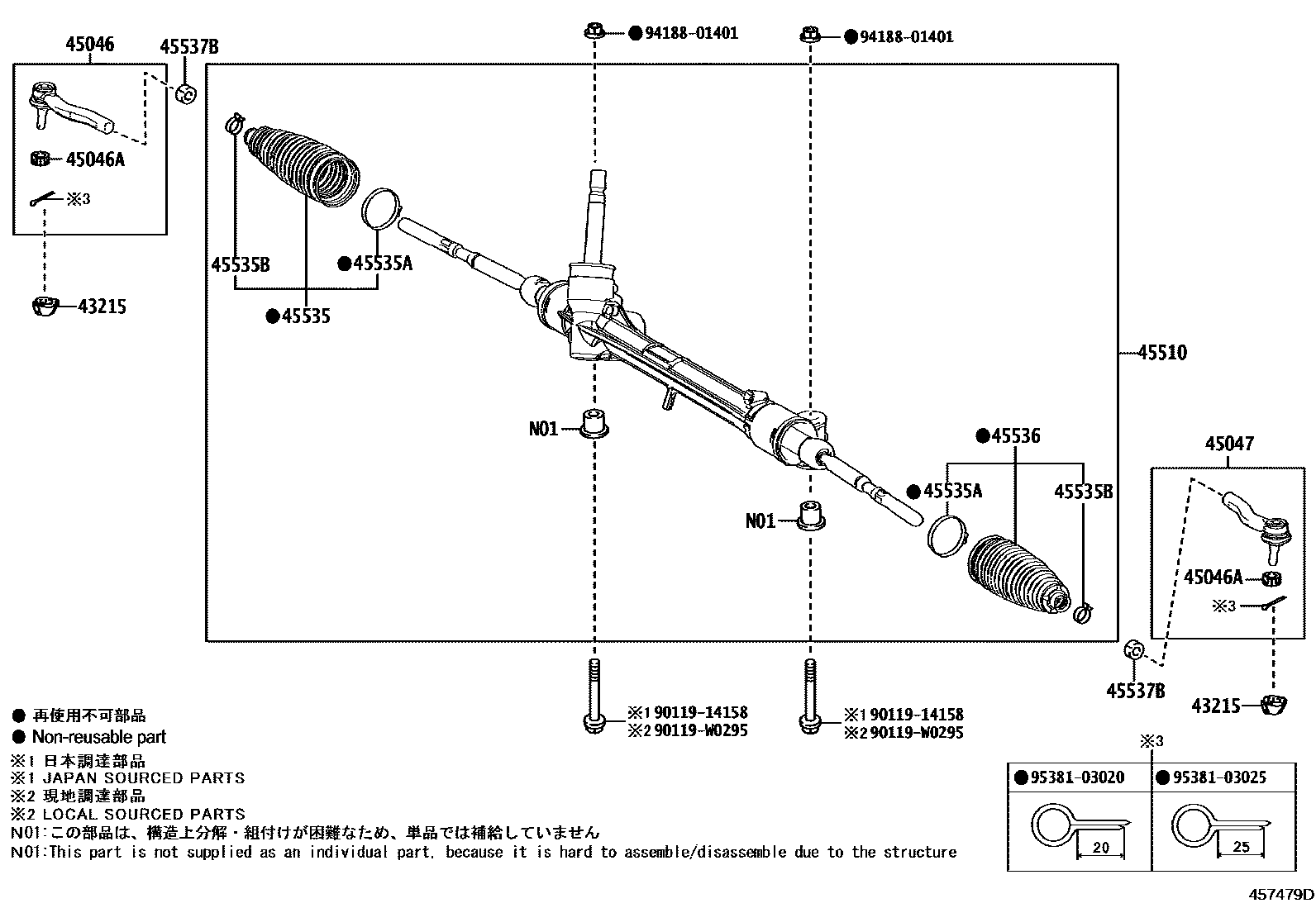

Toyota COROLLA (UKP) — FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iMZEH12,NRE210,ZWE211¥210201901

45046END SUB-ASSY, TIE ROD, RH

main45046-F9010iMZEH12,NRE210,ZWE211201901

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMZEH12,NRE210,ZWE211¥130201901

45047END SUB-ASSY, TIE ROD, LH

main45047-F9010iMZEH12,NRE210,ZWE211201901

45510GEAR ASSY, STEERING

main45510-02380iZWE211..RHD..WG..G;MZEH12,NRE210,ZWE211..RHD..(C,D,N,P)201901

TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE

main45510-02380iZWE211..RHD..WG..G;MZEH12,NRE210,ZWE211..RHD..(C,D,N,P)201901

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

main45510-02380iZWE211..RHD..WG..G;MZEH12,NRE210,ZWE211..RHD..(C,D,N,P)201901

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main45510-02410iZWE211..RHD..HB..G;MZEH12,NRE210..RHD..G201901

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

main45510-02410iZWE211..RHD..HB..G;MZEH12,NRE210..RHD..G201901

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

main45510-02420iZWE211..LHD..WG..G;MZEH12,NRE210,ZWE211..LHD..(C,D,N)201901

TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE

main45510-02420iZWE211..LHD..WG..G;MZEH12,NRE210,ZWE211..LHD..(C,D,N)201901

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

main45510-02420iZWE211..LHD..WG..G;MZEH12,NRE210,ZWE211..LHD..(C,D,N)201901

TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC

main45510-02420iZWE211..LHD..WG..G;MZEH12,NRE210,ZWE211..LHD..(C,D,N)201901

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main45510-02430iZWE211..LHD..HB..G;MZEH12,NRE210..LHD..G201901

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

main45510-02430iZWE211..LHD..HB..G;MZEH12,NRE210..LHD..G201901

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

main45510-02880iZWE219..LHD..WG..G;MZEH19,ZWE219..LHD..(C,D,N)202301

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD STEEL

main45510-02880iZWE219..LHD..WG..G;MZEH19,ZWE219..LHD..(C,D,N)202301

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPEC

main45510-02880iZWE219..LHD..WG..G;MZEH19,ZWE219..LHD..(C,D,N)202301

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main45510-02880iZWE219..LHD..WG..G;MZEH19,ZWE219..LHD..(C,D,N)202301

TIRE&DISC WHEEL-205/55R16 SUMMER TIRE STEEL WHEEL

main45510-02890iMZEH19..LHD..(G,S);ZWE219..LHD..WG..S;ZWE219..LHD..HB..(G,S)202301

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

main45510-02A00iZWE219..RHD..WG..G;MZEH19,ZWE219..RHD..(C,D,N,P)202301

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPEC

main45510-02A00iZWE219..RHD..WG..G;MZEH19,ZWE219..RHD..(C,D,N,P)202301

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main45510-02A00iZWE219..RHD..WG..G;MZEH19,ZWE219..RHD..(C,D,N,P)202301

TIRE&DISC WHEEL-205/55R16 SUMMER TIRE STEEL WHEEL

main45510-02A10iMZEH19..RHD..(G,S);ZWE219..RHD..WG..S;ZWE219..RHD..HB..(G,S)202301

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

45535BOOT, STEERING RACK, NO.1

main45535-F9010iMZEH12,NRE210,ZWE211201901-202404

main45535-F9011iMZEH19,ZWE219202405

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-F4010iMZEH12,NRE210,ZWE211201901-202404

main45538-F4011iMZEH19,ZWE219202405

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iMZEH12,NRE210,ZWE211¥200201901

45536BOOT, STEERING RACK, NO.2

main45535-F9010iMZEH12,NRE210,ZWE211201901-202404

main45535-F9011iMZEH19,ZWE219202405

45537BNUT, RACK END LOCK

main90178-16001iMZEH12,NRE210,ZWE211¥120201901

9011914158

main90119-14158¥430

90119W0295

main90119-W0295

9418801401

main94188-01401¥190

9538103020

main95381-03020¥90

9538103025

main95381-03025¥130

15 parts on this diagram · 2 diagrams in section
