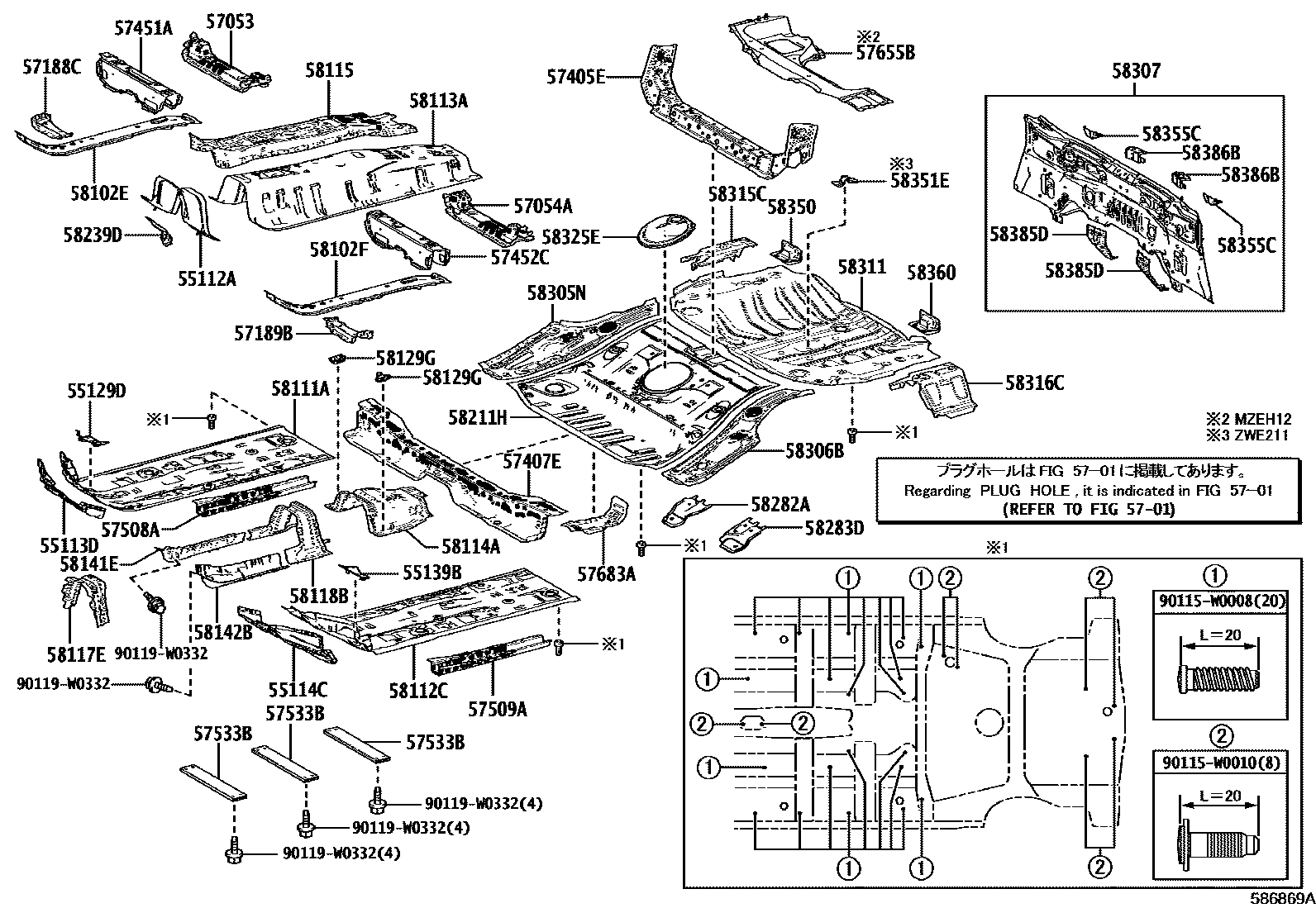

Toyota COROLLA (UKP) — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

55112APANEL, DASH, NO.2

main55112-02030iMZEH12,NRE210,ZWE211201901

55113DPANEL, DASH, LOWER RH

main55113-02040iMZEH12,NRE210,ZWE211201901

55114CPANEL, DASH, LOWER LH

main55114-02080iMZEH12,NRE210,ZWE211201901

55129DCOVER, DASH PANEL HOLE, RH

main55129-F4010iMZEH12,NRE210,ZWE211201901

55139BCOVER, DASH PANEL HOLE, LH

main55139-F4010iMZEH12,NRE210,ZWE211201901

5701

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02100iMZEH12,NRE210,ZWE211201901

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02090iMZEH12,NRE210,ZWE211201901

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-02080iMZEH12,NRE210,ZWE211201901

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-02060iMZEH19,ZWE219201901

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-02040iMZEH12,NRE210,ZWE211201901

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-02240iMZEH19,ZWE219201901

main57407-02250iNRE210201901

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-02250iMZEH12,NRE210,ZWE211201901

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-02190iMZEH19,ZWE219201901

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-02050iMZEH12,NRE210,ZWE211..HB201901

main57508-02060iMZEH12,NRE210,ZWE211..WG201902

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-02050iMZEH12,NRE210,ZWE211..HB201901

main57508-02060iMZEH19,ZWE219..WG201902

57533BBRACE, FRONT FLOOR, CENTER

main57533-F4010iMZEH12,NRE210,ZWE211201901

57655BMEMBER, REAR FLOOR CROSS, NO.4

main57655-02020iMZEH12..HB201902

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-F4020iMZEH12,ZWE211201901

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-02190iMZEH12,NRE210,ZWE211201901

58102FPANEL SUB-ASSY, FRONT FLOOR, LH

main58102-02190iMZEH12,NRE210,ZWE211201901

58111APAN, FRONT FLOOR, RH

main58111-02370iMZEH12,NRE210,ZWE211..HB201901-201912

sub58111-02371

main58111-02371iMZEH12,NRE210,ZWE211..HB202001-202105

main58111-02372iMZEH12,NRE210,ZWE211..HB202106

main58111-02380iMZEH12,NRE210,ZWE211..WG201902-201912

sub58111-02381

main58111-02381iMZEH12,NRE210,ZWE211..WG202001-202105

main58111-02382iMZEH12,NRE210,ZWE211..WG202106

58112CPAN, FRONT FLOOR, LH

main58112-02120iMZEH12,NRE210,ZWE211..HB201901-201912

sub58112-02121

main58112-02121iMZEH12,NRE210,ZWE211..HB202001-202105

main58112-02122iMZEH19,ZWE219..HB202106

main58112-02130iMZEH12,NRE210,ZWE211..WG201902-201912

sub58112-02131

main58112-02131iMZEH12,NRE210,ZWE211..WG202001-202105

main58112-02132iMZEH12,NRE210,ZWE211..WG202106

58113APANEL, FRONT FLOOR, CENTER

main58113-02160iMZEH12,NRE210,ZWE211..HB201901

main58113-02170iMZEH12,NRE210,ZWE211..WG201902

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-02060iMZEH12,NRE210,ZWE211..HB201901

main58114-02070iMZEH12,NRE210,ZWE211..WG201902

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58015-02250iMZEH12,NRE210,ZWE211201901-202008

sub58115-02060

main58115-02060iMZEH19,ZWE219202008

58117EPANEL, FRONT FLOOR SUB COVER

main58117-02050iMZEH12,NRE210,ZWE211201901

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-02090iMZEH12,NRE210,ZWE211201901

58129GBRACKET, FRONT CROSS TO FRONT PANEL MEMBER REINFORCE

main58129-02030iMZEH12,NRE210,ZWE211201901

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-F4011iMZEH12,NRE210,ZWE211201901-202406

main58141-F4012iMZEH19,ZWE219202407

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-F4011iMZEH19,ZWE219201901-202406

main58142-F4012iMZEH19,ZWE219202407

58211HPAN, CENTER FLOOR

main58211-02540iMZEH19,ZWE219201901

main58211-02550iNRE210201901

58239DBRACKET, CABLE CLAMP

main58239-02040iMZEH12,NRE210,ZWE211201901

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-F4010iMZEH12,NRE210,ZWE211201901

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-02200iMZEH19,ZWE219201901

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-02100iMZEH12,ZWE211201901

main58305-02110iNRE210201901

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-02110iMZEH12,ZWE211201901-201909

sub58306-02111

main58306-02111iMZEH12,ZWE211201909

main58306-02120iNRE210201901

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02480iMZEH12,NRE210,ZWE211..HB201901

main58307-02490iMZEH19,ZWE219..WG201902

58311PAN, REAR FLOOR

main58311-02360iMZEH12..HB201902

main58311-02370iZWE219..HB201901

main58311-02380iMZEH12,NRE210,ZWE211..WG201902

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-02090iMZEH12,NRE210,ZWE211..HB201901

main58315-02100iMZEH12..WG201902

main58315-02180iNRE210,ZWE211..WG201902

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-02050iMZEH19,ZWE219..HB201901

main58316-02060iMZEH12,NRE210,ZWE211..WG201902

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-F4011iMZEH12,ZWE211201901

main58325-F4021iNRE210201901

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-F4010iMZEH19,ZWE219201901

58351EBRACKET, SPARE WHEEL CLAMP

main58351-02110iMZEH12..WG;NRE210,ZWE211201901

58355CBRACKET, REAR BUMPER ARM

main58355-02100iMZEH12,NRE210,ZWE211..HB201901

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-F4010iMZEH19,ZWE219201901

58385DBRACKET, REAR BUMPER COVER

main58385-02240iMZEH12,NRE210,ZWE211..HB201901

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02010iMZEH12,NRE210,ZWE211..WG¥450201902

main58386-02190iMZEH12,NRE210,ZWE211..HB201901

90115W0008

main90115-W0008¥60

90115W0010

main90115-W0010¥60

90119W0332

main90119-W0332

51 parts on this diagram · 5 diagrams in section
