Toyota COROLLA (UKP) — EXHAUST PIPE

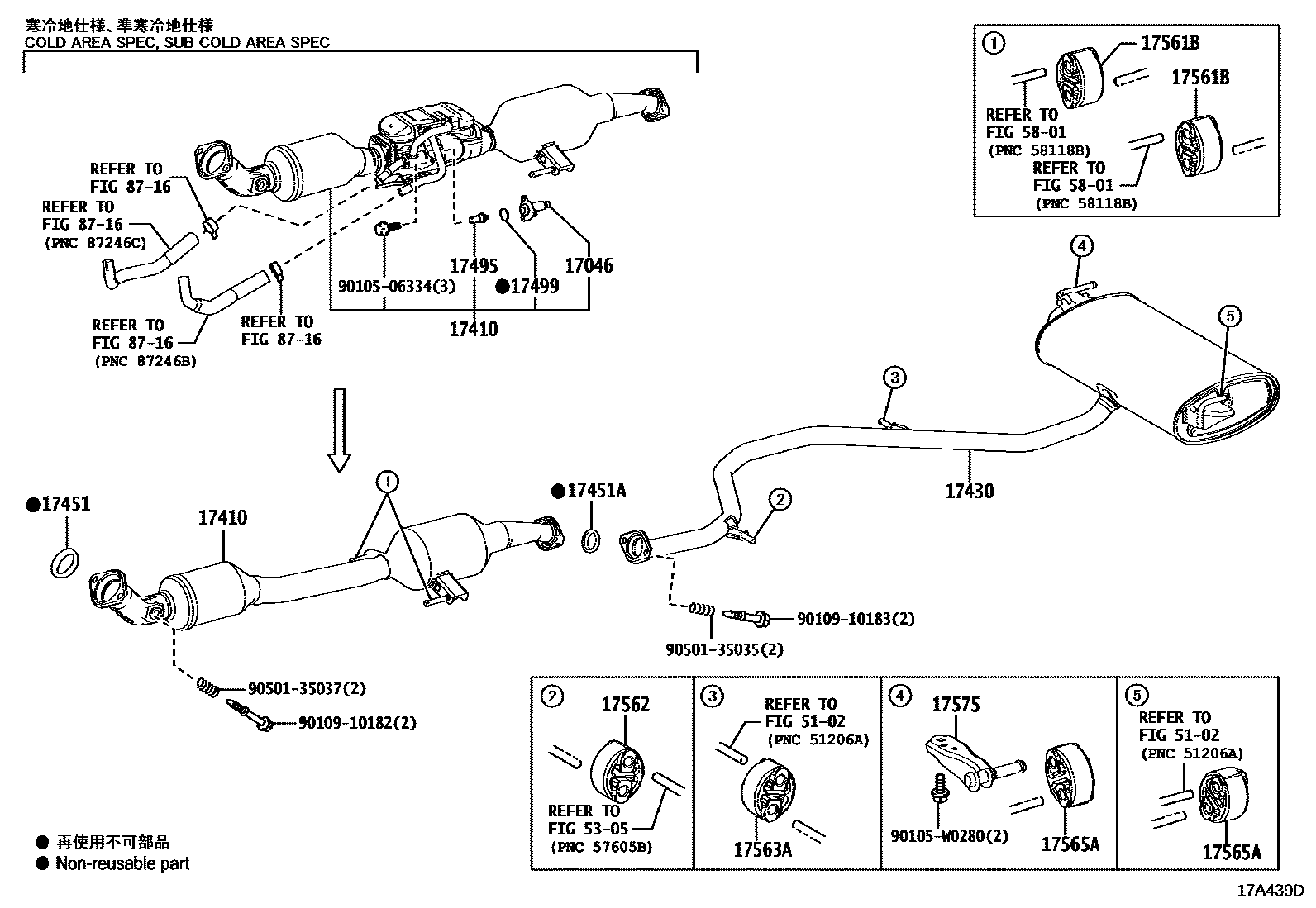

Parts diagram
17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
main17046-24010¥5,700
main17046-37100¥7,600
17410PIPE ASSY, EXHAUST, FRONT
main17410-0TD30i201901-202008
*114=TOYOTA/TL8/Y
sub17410-0TD31
sub17451-0T090
sub17451-0T100
main17410-0TD31i202008-202010
*114=TOYOTA/TL8/Y
main17410-0TJ20i202010
*114=*713
main17410-0Y780i201901
*114=TOYOTA/Y58/Y
main17410-0Y790i201901
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main17410-F2030i201902
*114=*713
main17410-F2031i202301
*114=TOYOTA/L52/Y
17430PIPE ASSY, EXHAUST, TAIL
main17430-0T510i201901-202601
main17430-0T520i201902
main17430-0T800i202301-202601
main17430-0Y400i201901
main17430-0Y420i201902
main17430-0Y500i201901-202002
main17430-F2030i201902-202601
main17430-F2040i201902
main17430-F2290i202301-202601
17451GASKET, EXHAUST PIPE
main17451-0R010i¥1,360201901-202008
main17451-0T090i202008
17451AGASKET, EXHAUST PIPE, NO.2
main17451-0J022i¥720201901-202008
main17451-0T100i202008
17495ACTUATOR, EXHAUST PIPE GAS CONTROL
main17495-37010¥2,490
main17495-24010¥1,870
17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
main17499-24010¥10
main17499-37020¥380
17561BSUPPORT, EXHAUST PIPE, NO.1
main17565-0J031i¥680202301
main17565-0J031i¥680201908
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main17565-0T040i201901-201908
17562SUPPORT, EXHAUST PIPE, NO.2
main17565-0J031i¥680201901-201908
main17565-0T040i201908
17563ASUPPORT, EXHAUST PIPE, NO.3
main17565-0J031i¥680201901-201908
main17565-0T040i201908
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-0J031i¥680201908
main17565-0T040i201901-201908
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
main17575-0Y030i201901
main17575-F2050i201902
5102
5305
5801
8716
9010506334
main90105-06334¥60
90105W0280
main90105-W0280
9010910182
main90109-10182¥190
9010910183
main90109-10183¥190
9050135035
main90501-35035¥200
9050135037
main90501-35037¥200

22 parts on this diagram · 8 diagrams in section
