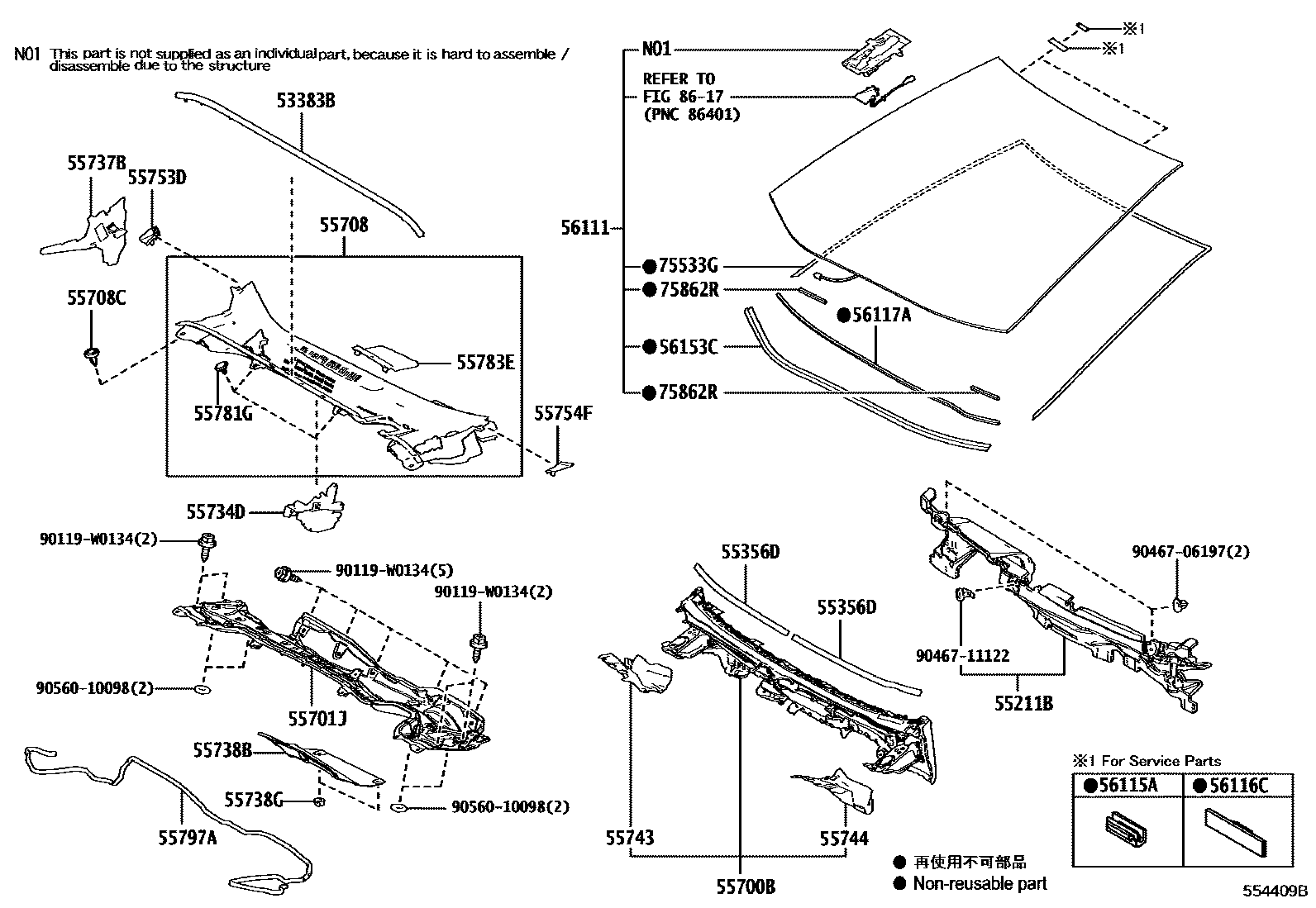

Toyota COROLLA (UKP) — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
SUB COLD AREA SPEC
55708CCLIP, COWL TOP VENTILATOR LOUVER
55734DPLATE, WATER GUARD
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738BPROTECTOR, FRONT PANEL COVER, NO.1
55738GCLIP, FRONT PANEL COVER PROTECTOR
BLACK
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
sub56101-02Q61
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
sub56101-02Q71
WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
TURKEY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
TURKEY SPEC&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
WVTA SPEC(OUTSIDE EU)&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
FUEL CAUTION LABEL-ENGLISH&WVTA SPEC(OUTSIDE EU)&ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN R
FUEL CAUTION LABEL-ENGLISH&WVTA SPEC(OUTSIDE EU)&ACTIVE SAFETY PACKAGE-WITHOUT&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
FUEL CAUTION LABEL-ENGLISH&WVTA SPEC(OUTSIDE EU)&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
FUEL CAUTION LABEL-ENGLISH&ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
FUEL CAUTION LABEL-ENGLISH&ACTIVE SAFETY PACKAGE-WITHOUT&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
FUEL CAUTION LABEL-ENGLISH&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
TURKEY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
WVTA SPEC(OUTSIDE EU)&ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD WIPER CONTROL-TIMEADJUSTMENT&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
WVTA SPEC(OUTSIDE EU)&ACTIVE SAFETY PACKAGE-WITHOUT&SPEED LIMITER CONTROL-WITHOUT&TRAFFIC SIGN RECOGNITION-WITHOUT
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1298 OR 725,STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&WINDSHIELDWIPER CONTROL-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=1298 OR 725,WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1298 OR 725,WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=1298 OR 725,HEAD UP DISPLAY-WITH
*D,L=1298 OR 725
*D,L=1298 OR 725,WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
*D,L=1298 OR 725,STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)
*D,L=1298 OR 725,STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&WINDSHIELDWIPER CONTROL-TIME ADJUSTMENT
*D,L=1298 OR 725,STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&WINDSHIELDWIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1298 OR 725,STEERING WHEEL-3-SPOKE, LEATHER, WITH(STEERING HEATER)&HEAD UP DISPLAY-WITH
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
75862RPROTECTOR, ROCKER PANEL MOULDING, NO.2
8617
90119W0134
9046706197
9046711122
9056010098
30 parts on this diagram · 4 diagrams in section
