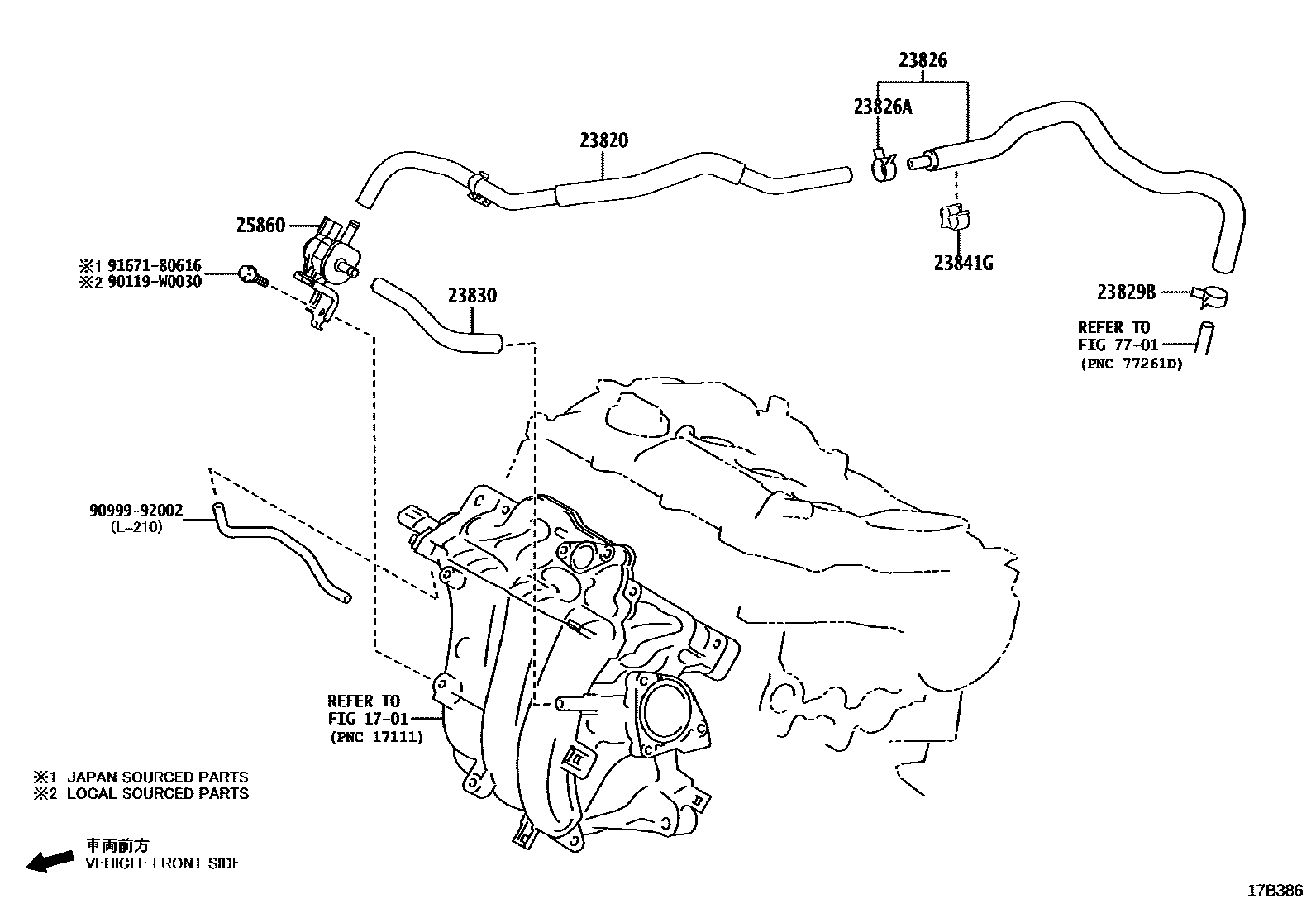

Toyota COROLLA (TUP) — VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1W(GPF)

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F3090iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0T300i2ZRFXE..ZWE219201901

(L)

main23826-0T551iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011-202301

main23826-37021i1ZRFE..ZRE210..D..RUS;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)¥890201901-202301

main23826-37050i1ZRFAE..ZRE210..LHD..D¥970201901-202301

main23826-37190i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD201901-202301

main23826-37250i2ZRFXE..ZWE211,213¥1,300201901-202411

(J)

main23826-37340i2ZRFXE..ZWE219¥820202411

(J)

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR¥120202011-202301

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD¥120201901-202301

main96136-41901iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR¥120201901-202301

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23826-F3070iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011-202301

23841GCLAMP, FUEL HOSE

main77196-33040iM15AFKS..MZEA11..LHD..(D,N)¥200202011-202301

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-F3030iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

main90910-12281i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D¥2,930201901-202301

7701

90119W0030

main90119-W0030¥60

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

12 parts on this diagram · 8 diagrams in section
