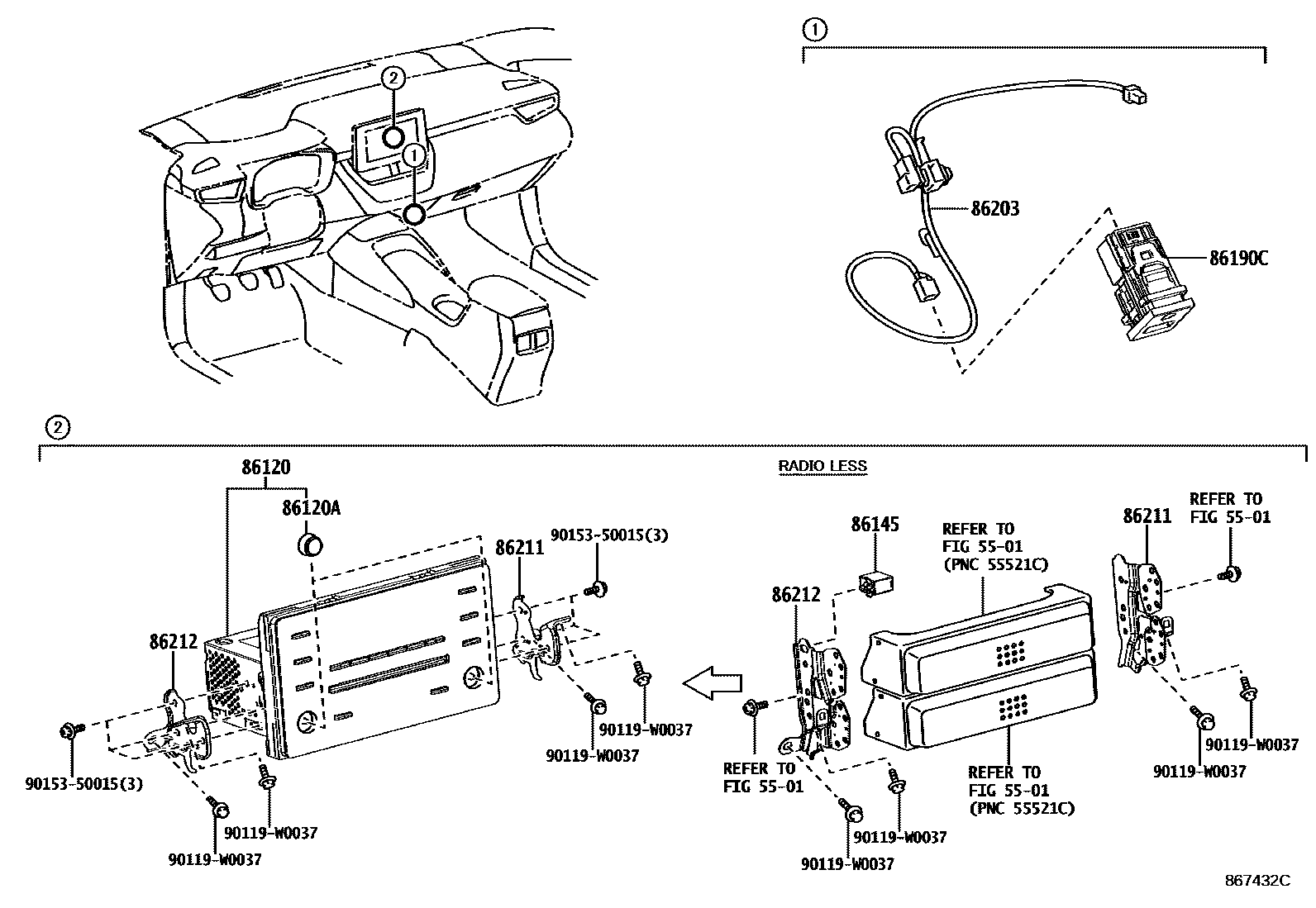

Toyota COROLLA (TUP) — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

5501

86120RECEIVER ASSY, RADIO

main86120-02L60iZWE211..RHD201901-202011

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main86120-02L60iZWE211..RHD201901-202011

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86120-02L60iZRE210..RHD..EUR201901-202011

DENSO TEN

main86120-02L70iZRE211,ZWE211..G..(GCC,GEN)201901-202008

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

sub86120-02L71

main86120-02L70iZRE211,ZWE211..G..(GCC,GEN)201901-202008

DENSO TEN

sub86120-02L71

main86120-02L70iZRE21#,ZWE211..(D,N)..(GCC,GEN)201901-202008

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

sub86120-02L71

main86120-02L70iZRE21#,ZWE211..(D,N)..(GCC,GEN)201901-202008

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

sub86120-02L71

main86120-02L71iZRE211,ZWE211..G..(GCC,GEN)202009-202110

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86120-02L71iZRE21#,ZWE211..(D,N)..(GCC,GEN)202009-202110

DENSO TEN

main86120-02L71iZRE21#,ZWE211..(D,N)..(GCC,GEN)202009-202110

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main86120-02L71iZRE21#,ZWE211..(D,N)..(GCC,GEN)202009-202110

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

main86120-02L72iZRE211,ZWE211..G..(GCC,GEN)202111-202204

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main86120-02L72iZRE211,ZWE211..G..(GCC,GEN)202111-202204

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

main86120-02L72iZRE211,ZWE211..G..(GCC,GEN)202111-202204

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86120-02L72iZRE210..D..(GCC,GEN)202111-202204

DENSO TEN

main86120-02L73iZRE21#,ZWE211..(D,N)..(GCC,GEN)202205

DENSO TEN

main86120-02L73iZRE21#,ZWE211..(D,N)..(GCC,GEN)202205

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main86120-02L73iZRE21#,ZWE211..(D,N)..(GCC,GEN)202205

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

main86120-02L73iZRE21#,ZWE211..(D,N)..(GCC,GEN)202205

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25305iZRE210..D..RUS;MZEA11,ZRE210..N..(EUR,RUS);ZRE211,ZWE211..G..(GCC,GEN)201901-202011

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main90011-25305iZRE210..RHD..EUR201901-202011

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main90011-25305iZRE210..RHD..GEN;ZRE210..LHD..N..(GCC,GEN);ZRE211,ZWE211..N..(GCC,GEN);MZEA11,ZRE210..LHD..D..(EUR,GCC,GEN)201901

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

86145CONNECTOR, ANTENNA MALE

main86145-52010iZRE210..D..RUS¥170201901-202301

INSTRUMENT PANEL-SOFT PAD(WITHOUT(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86145-52010iZRE210..D..RUS¥170201901-202301

INSTRUMENT PANEL-SOFT PAD(WITH(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86145-52010iZRE210..D..RUS¥170201901-202301

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-02110iZRE210..D..RUS202301

AUDIO COVER-WITH

main86190-12070iZWE211..RHD¥3,780201912-202011

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main86190-12070iZWE211..RHD¥3,780201912-202011

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86190-12070iZRE211;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE210,ZWE211,213..LHD..(EUR,GCC,GEN)¥3,780201912

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

main86190-12070iZRE211;ZRE210..RHD..GEN;ZRE210..(G,N)..RUS;MZEA11,ZRE210,ZWE211,213..LHD..(EUR,GCC,GEN)¥3,780201912

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & SPEAKER LESS

main86190-33060iZRE210..D..(GCC,GEN)¥7,200201901-201912

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main86190-33060iZRE210..(G,N)..RUS;ZRE21#,ZWE211..EUR,GCC,GEN¥7,200201901-201912

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 4SPEAKER

main86190-33060iZRE210..(G,N)..RUS;ZRE21#,ZWE211..EUR,GCC,GEN¥7,200201901-201912

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

main86190-33060iZRE210..(G,N)..RUS;ZRE21#,ZWE211..EUR,GCC,GEN¥7,200201901-201912

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86190-33060iZRE210..(G,N)..RUS;ZRE21#,ZWE211..EUR,GCC,GEN¥7,200201901-201912

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

main86190-33060iZRE210..(G,N)..RUS;ZRE21#,ZWE211..EUR,GCC,GEN¥7,200201901-201912

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & SPEAKER LESS

main86190-F4040iZRE210..RHD..EUR201912-202008

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & DAB & 6SPEAKER

sub86190-F4041

main86190-F4040iZRE210..RHD..EUR201912-202008

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

sub86190-F4041

main86190-F4040iZRE210..RHD..EUR201912-202008

AUDIO(FOR OVERSEAS MARKET)- T2(8INCH) & *BT & USB & 6SPEAKER

sub86190-F4041

main86190-F4040iZRE210..RHD..EUR201912-202008

AUDIO(FOR OVERSEAS MARKET)- T2(8INCH) & *NS & DAB & 6SPEAKER

sub86190-F4041

main86190-F4040iZRE210..RHD..EUR201912-202008

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

sub86190-F4041

main86190-F4041iZRE210..RHD..EUR202011

main86190-F4041iMZEA11,ZWE211,213..RHD202009

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

86203WIRE, RADIO

main86203-12650iZRE210..RHD..CVT..N202301

86211BRACKET, RADIO, NO.1

main86211-02550iZRE210..D..RUS201901-202301

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 4SPEAKER

main86211-02550iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

main86211-02550iZRE210..N..EUR;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main86211-02550iZRE210..N..EUR;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

main86211-02560iZRE210..D..RUS201901-202301

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86211-02560iMZEA11,ZRE210..N..EUR201901-202301

INSTRUMENT PANEL-SOFT PAD(WITHOUT(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86211-02560iMZEA11,ZRE210..N..EUR201901-202301

INSTRUMENT PANEL-SOFT PAD(WITH(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

86212BRACKET, RADIO, NO.2

main86212-02550iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

main86212-02550iZRE210..N..EUR;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 4SPEAKER

main86212-02550iZRE210..N..EUR;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main86212-02550iZRE210..N..EUR;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

main86212-02560iZRE210..D..RUS201901-202301

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86212-02560iMZEA11,ZRE210..N..EUR201901-202301

INSTRUMENT PANEL-SOFT PAD(WITHOUT(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86212-02560iMZEA11,ZRE210..N..EUR201901-202301

INSTRUMENT PANEL-SOFT PAD(WITH(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

90119W0037

main90119-W0037¥60

9015350015

main90153-50015¥60

10 parts on this diagram · 2 diagrams in section
