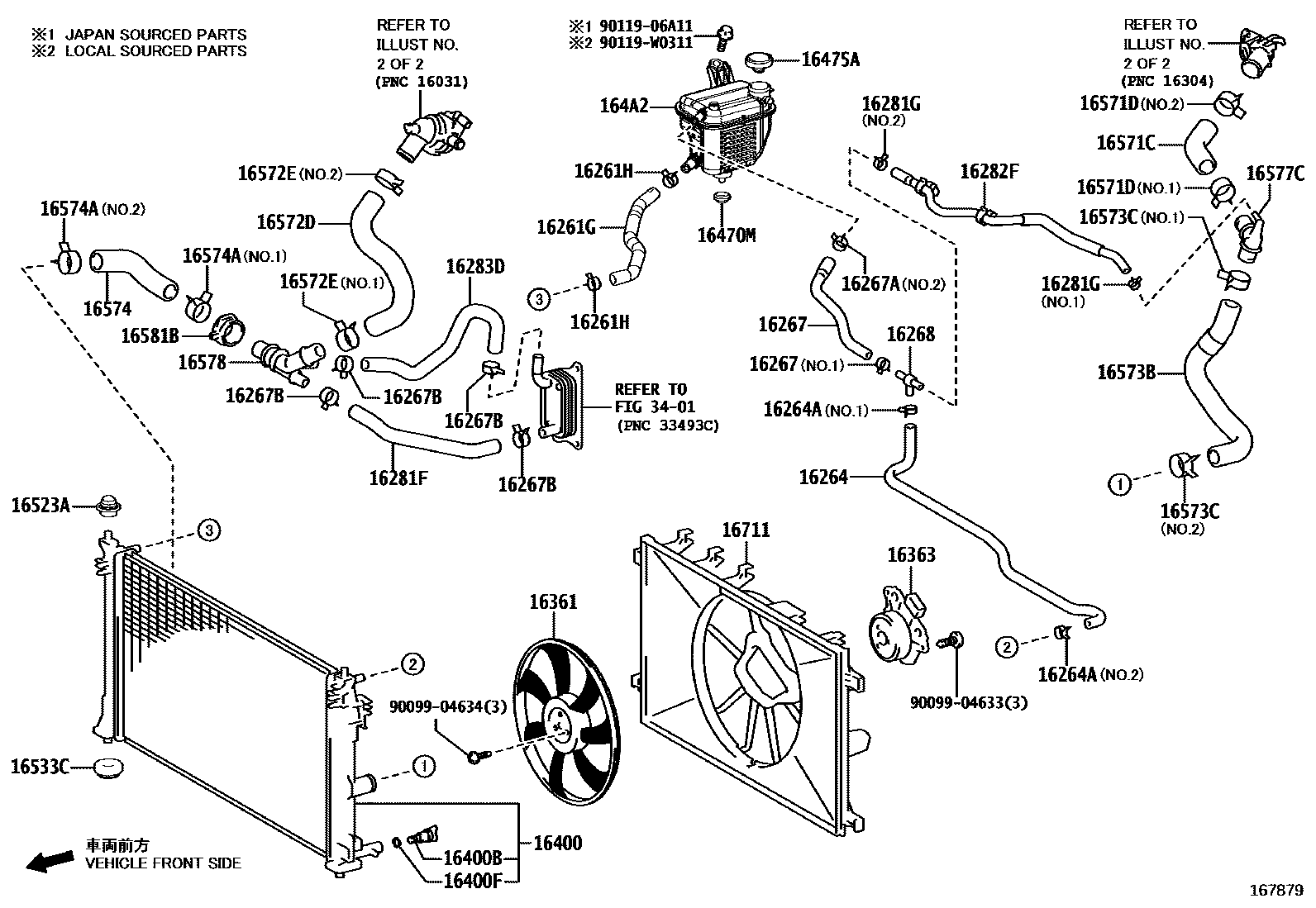

Toyota COROLLA (TUP) — RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1RADIATOR SIDE 0004 1RADIATOR SIDE 0005 1ENGINE SIDE 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

16261HOSE, WATER BY-PASS

main16261-0T290i2ZRFXE..ZWE211,213201901

(L)

main16261-37031i1ZRFE..ZRE210..D..RUS;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)¥540201901-202301

main16261-37160i2ZRFXE..ZWE219¥1,080201901

(J)

main16261-37200i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202301

16261GHOSE, WATER BY-PASS, NO.1

main16261-0T250i2ZRFXE..ZWE211,213201901

main16261-0T320i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202301

main16261-0T460i2ZRFXE..ZWE219202301

main16261-F2140iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90466-28001iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR¥220202301

main90466-W0017iM15AFKS..MZEA11..LHD..(D,N)201901-202301

16264HOSE, WATER BY-PASS, NO.2

main16264-0T230i2ZRFXE..ZWE211,213201901

(L)

main16264-37031i1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,GEN)¥350201901-202301

main16264-37130i2ZRFXE..ZWE219¥1,010201901

(J)

main16264-37210i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202301

main16264-F3040iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

main16264-F3060iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main96136-41901iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR¥120202011-202301

NO.1:REFER ILLUST.

main96137-41501i2ZRFXE..ZWE219;1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)¥120201901-202301

16267HOSE, WATER BY-PASS, NO.3

main16267-0T160i2ZRFXE..ZWE211,213201901

main16267-37010i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,G¥1,010201901-202301

main16267-F3050iM15AFKS..MZEA11..LHD..(D,N)202011-202301

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90466-W0007i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,G¥200201901-202301

(L)

main96136-41901iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR¥120202011-202301

NO.1:REFER ILLUST.

main96136-42101iM15AFKS..MZEA11..LHD..(D,N)¥240202011-202301

NO.2:REFER ILLUST.

main96136-42501i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFAE..ZRE210..LHD..CVT..D;1ZRFE..ZRE210..6F..(¥200201901-202301

(J)

main96136-42501i1ZRFAE..ZRE210..6F..G;1ZRFAE..ZRE210..RHD..6F¥200201901-202301

NO.2

16267BCLIP(FOR WATER BY-PASS HOSE)

main90466-W0017iM15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

main96136-41901i2ZRFXE..ZWE219¥120201901-202311

16268PIPE, WATER BY-PASS, NO.1

main16268-0T020i1ZRFAE..ZRE210..LHD..CVT..D201901-202301

(L)

main16268-0T140i1ZRFAE..ZRE210..6F..N201901-202301

(L)

main16268-0T160i2ZRFXE..ZWE211,213201901

main16268-37021i1ZRFE,2ZRFE..ZRE21#..CVT¥3,040202112-202208

W(MARK)

sub16268-37060¥2,840

main16268-37021i1ZRFE,2ZRFE..ZRE21#..CVT¥3,040201901-202112

sub16268-37060¥2,840

main16268-37031i1ZRFE..ZRE210..6F¥3,040202112-202208

W(MARK)

sub16268-37070¥2,840

main16268-37031i1ZRFE..ZRE210..6F¥3,040201901-202112

sub16268-37070¥2,840

main16268-37060i1ZRFAE..ZRE210..CVT..G;1ZRFAE..ZRE210..RHD..CVT¥2,840201901-202301

(J)

main16268-37060i2ZRFE..ZRE211¥2,840202112-202301

W/O(MARK)

main16268-37070i1ZRFAE..ZRE210..LHD..6F..D¥2,840201901-202301

(J)

main16268-37070i1ZRFE..ZRE210..6F..D..RUS¥2,840202112-202301

W/O(MARK)

main16268-F2090iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

main16268-F3090iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

16281HOSE, WATER BY-PASS, NO.4

main16281-0T150i2ZRFXE..ZWE211,213201901

main16281-0T320i2ZRFXE..ZWE219202301-202311

main16281-F3030iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011-202301

16281FHOSE, WATER BY-PASS, NO.5

main16282-F3140iM15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

16281GCLIP(FOR WATER BY-PASS HOSE NO.5)

main96136-41901iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR¥120202011

NO.2:REFER ILLUST.

main96138-41701iM15AFKS..MZEA11..EUR¥120202011

NO.1:REFER ILLUST.

16282HOSE, WATER BY-PASS, NO.5

main16282-0T100i2ZRFXE..ZWE211,213..EUR202007

main16282-37090i2ZRFXE..ZWE211..EUR¥390201901-202006

main16282-F3050iM15AFKS..MZEA11..LHD..(D,N)202011-202301

16282FHOSE, WATER BY-PASS, NO.5

main16282-F3030iM15AFKS..MZEA11..EUR202011

16283HOSE, WATER BY-PASS, NO.6

main16283-0T060i2ZRFXE..ZWE211,213¥350201901

(L)

main16283-37021i2ZRFXE..ZWE219¥350201901

(J)

main16283-F3050iM15AFKS..MZEA11..LHD..(D,N)202011-202301

16283DHOSE, WATER BY-PASS, NO.6

main16283-0T080iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

main16283-F3090iM15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

16361FAN

main16361-0T170i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202012

main16361-0T170i1ZRFE..ZRE210..D..RUS;1ZRFE..ZRE210..LHD..CVT..D..GEN;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFAE,2ZRFE..ZRE21#..LHD..N..(EUR,GEN)201901-202301

SYRIA SPEC

main16361-0T170i1ZRFE..ZRE210..D..RUS;1ZRFE..ZRE210..LHD..CVT..D..GEN;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFAE,2ZRFE..ZRE21#..LHD..N..(EUR,GEN)201901-202301

JORDAN SPEC

main16361-0T300i2ZRFE..ZRE211..G..GCC;1ZRFE..ZRE210..6F..GCC;1ZRFE..ZRE210..CVT..N..GCC201901-202301

main16361-F3010iM15AFKS..MZEA11..LHD..(D,N)202011-202301

main16361-F3020iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

16363MOTOR, COOLING FAN

main16363-0T210i1ZRFE..ZRE210..D..RUS;1ZRFE..ZRE210..LHD..CVT..D..GEN;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFAE,2ZRFE..ZRE21#..LHD..N..(EUR,GEN)201901-202301

SYRIA SPEC

main16363-0T210i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202012

main16363-0T210i1ZRFE..ZRE210..D..RUS;1ZRFE..ZRE210..LHD..CVT..D..GEN;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFAE,2ZRFE..ZRE21#..LHD..N..(EUR,GEN)201901-202301

JORDAN SPEC

main16363-24120iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR¥15,900202301

main16363-37130i2ZRFE..ZRE211..G..GCC;1ZRFE..ZRE210..6F..GCC;1ZRFE..ZRE210..CVT..N..GCC201901-202301

main16363-47060iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR¥23,600202011-202301

16400RADIATOR ASSY

main16400-0T350i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202301

main16400-0T360i1ZRFE..ZRE210..CVT..RUS;1ZRFE..ZRE210..6F..D..RUS201901-202301

main16400-0T371i2ZRFXE..ZWE211,213201901

main16400-0T600i2ZRFXE..ZWE219202301

main16400-F3010iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

main16400-F3020iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD¥360201901-202301

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR¥210201901-202301

16470TANK ASSY, RADIATOR RESERVE

main16470-0T090i2ZRFXE..ZWE219202301

16470MGROMMET

main90480-18010i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD¥130201901-202301

16475ACAP, RESERVE TANK

main16475-28140i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)¥1,200201901-202301

164A2TANK, RESERVE SEALED W/O CAP

main164A2-0T021iM15AFKS..MZEA11..LHD..(D,N)201901-202301

16523ACUSHION, RADIATOR SUPPORT

main16523-0T050iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR201901-202301

16533CGROMMET(FOR RADIATOR SUPPORT)

main90480-40021i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;2ZRFXE..ZWE211,213;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE.¥220201901-202301

16571CHOSE, RADIATOR, NO.1

main16571-0T280i2ZRFXE..ZWE211,213201901

main16571-0T350i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main16571-0T470i2ZRFXE..ZWE219202301

main16571-F3020iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011

16571DCLIP, RADIATOR HOSE, NO.1

main90466-C0008iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011

NO.1:REFER ILLUST.

main90466-W0016i2ZRFXE..ZWE219202301

main96136-43901i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD¥240201901-202301

main96136-43901iM15AFKS..MZEA11..EUR¥240202011

NO.2:REFER ILLUST.

16572DHOSE, RADIATOR, NO.2

main16572-0T050i2ZRFXE..ZWE211,213201901

main16572-0T290i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202301

main16572-0T400i2ZRFXE..ZWE219202301

main16572-F3030iM15AFKS..MZEA11..CVT..TUR;M15AFKS..MZEA11..CVT..N..EUR¥1,080202011-202301

main16572-F3070iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F202011-202301

16572ECLIP, RADIATOR HOSE, NO.2

main90466-C0008iM15AFKS..MZEA11..CVT..EUR202011

NO.1:REFER ILLUST.

main90466-W0016i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;2ZRFXE..ZWE211,213;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE.201901-202301

main90466-W0016iM15AFKS..MZEA11..6F..EUR202011

NO.1:REFER ILLUST.

main96136-43901iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR¥240202011

NO.2:REFER ILLUST.

16573BHOSE, RADIATOR, NO.3

main16573-0T110i2ZRFXE..ZWE211,213201901

main16573-0T190i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main16573-F3020iM15AFKS..MZEA11202011-202211

main16573-F3021iM15AFKS..MZEA11..EUR202211

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-C0008iM15AFKS..MZEA11..EUR202011

NO.1:REFER ILLUST.

main90466-W0016iM15AFKS..MZEA11..EUR202011

NO.2:REFER ILLUST.

main96136-43901i2ZRFXE..ZWE211,213¥240201901

16574HOSE, RADIATOR, NO.4

main16574-F3010iM15AFKS..MZEA11..CVT..(D,G)..EUR¥1,010202011-202301

16574ACLIP, RADIATOR HOSE, NO.4

main90466-C0008iM15AFKS..MZEA11..CVT..TUR;M15AFKS..MZEA11..CVT..N..EUR202011

NO.1:REFER ILLUST.

main90466-W0016iM15AFKS..MZEA11..CVT..EUR202011

NO.2:REFER ILLUST.

16577CPIPE, RADIATOR

main16577-0T120i2ZRFXE..ZWE211,213201901

main16577-0T180i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main16577-F3020iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011

16578PIPE, RADIATOR, NO.2

main16578-F3010iM15AFKS..MZEA11..CVT..N¥3,160202011-202301

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-15090iM15AFKS..MZEA11..EUR¥720202211

main16581-21060i1ZRFAE..ZRE210..CVT..G;1ZRFAE..ZRE210..RHD..CVT¥450201901-202301

NO.2

main16581-37130i1ZRFE..ZRE210..LHD..CVT..D;1ZRFAE,2ZRFE..ZRE21#..LHD..CVT..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS)¥300201901-202301

NO.1

main16581-F3070iM15AFKS..MZEA11202011-202211

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-31040iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR¥580202011-202301

main16581-36030i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,G¥600201901-202301

16711SHROUD, FAN

main16711-0T160i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202301

main16711-0T170i2ZRFXE..ZWE211,213201901

main16711-0T330i2ZRFXE..ZWE219202301

main16711-F3010iM15AFKS..MZEA11..LHD..(D,N)202011-202301

main16711-F3020iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

3401

9009904633

main90099-04633¥0

9009904634

main90099-04634¥0

9011906A11

main90119-06A11¥60

90119W0311

main90119-W0311

45 parts on this diagram · 14 diagrams in section
