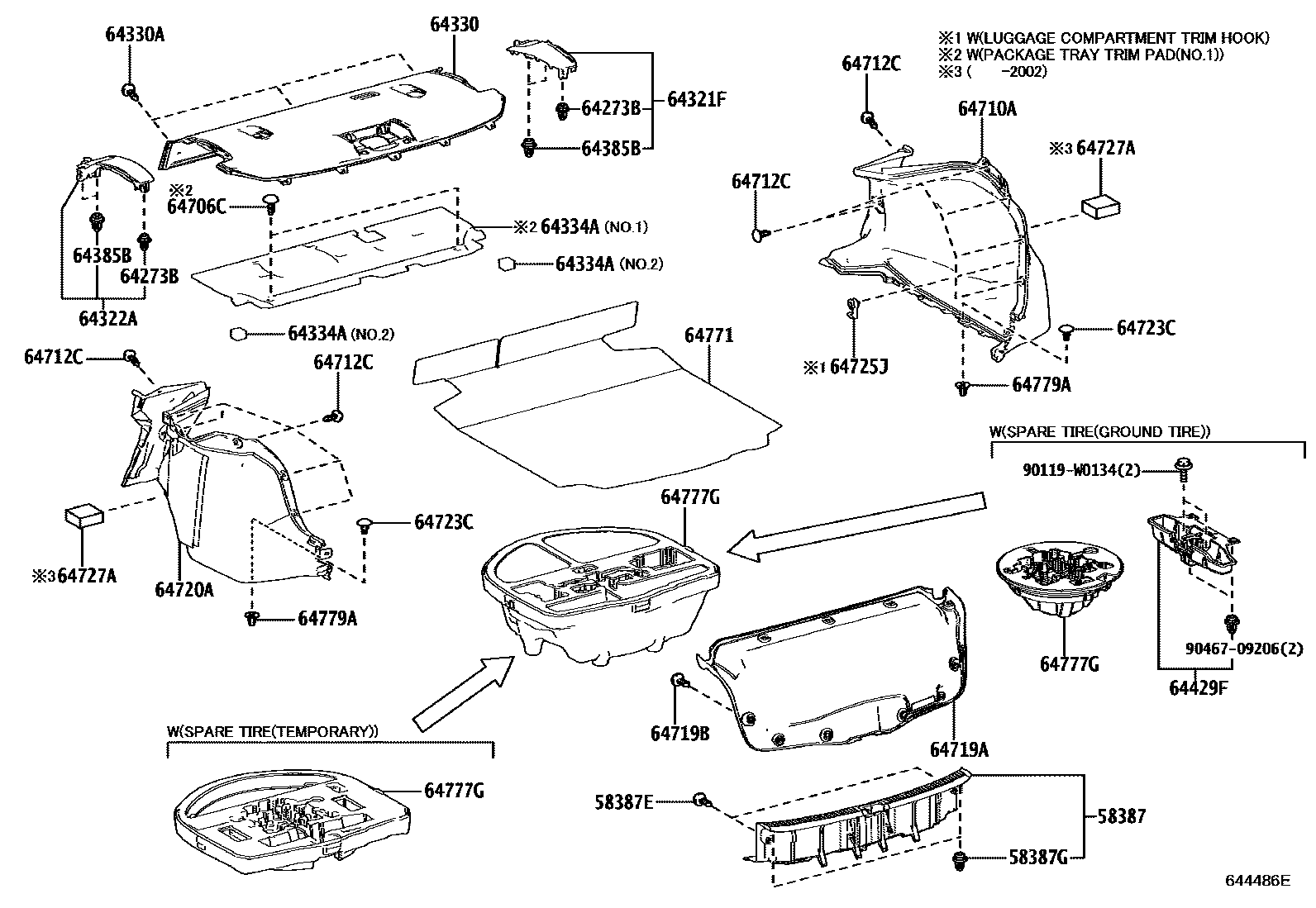

Toyota COROLLA (TUP) — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02340-C0iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

BLACK,TRIM0#,2#

main58387-02340-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

BLACK,TRIM0#,1#,2#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-W0007iZRE210..G..EUR;ZRE210..RHD..EUR¥80201901-202301

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-W0005iZRE210..G..EUR;ZRE210..RHD..EUR¥80201901-202301

64273BCLIP

main90467-09240iZRE210..G..EUR;ZRE210..RHD..EUR¥80201901-202301

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64301-02060-C0iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301

BLACK,TRIM0#,2#

main64301-02060-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

BLACK,TRIM0#,1#,2#

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64302-02060-C0iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

BLACK,TRIM0#,2#

main64302-02060-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

BLACK,TRIM0#,1#,2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02G10-C0iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

BLACK,TRIM0#,2#

main64330-02G10-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

BLACK,TRIM0#,1#,2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-W0007iZRE210..G..EUR;ZRE210..RHD..EUR¥80201901-202301

64334APAD, PACKAGE TRAY TRIM

main64334-02370iZRE210..RHD..EUR201901-202301

NO.1:REFER ILLUST.

main64334-02370iZWE211,213..G..EUR201901

TURKEY SPEC,NO.1:REFER ILLUST.

main64334-02480iZRE211..LHD..N201901-202012

NO.1:REFER ILLUST.

main64334-02480iZWE219..G;MZEA11..G..TUR202301

HIGH GRADE PACKAGE,NO.1:REFER ILLUST.

main64334-02490iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

NO.2:REFER ILLUST.

64385BCLIP

main90467-10161iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥90201901-202301

(J)

main90467-W0005iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥80201901-202301

(L)

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-02030iZRE210..N..EUR;MZEA11..LHD..(D,N)201901-202301

SPARE TIRE-GROUND TIRE

main64429-02030iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN)202301

SPARE TIRE-GROUND TIRE(STEEL)

main64429-02030iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN)202301

SPARE TIRE-GROUND TIRE(ALUMINUM)

64706CCLIP

main90467-06020-C4iMZEA11..TUR;ZWE219..G,N;MZEA11..N..EUR;ZWE219..D..TUR;ZRE210..CVT..(G,N)..RUS202301

HIGH GRADE PACKAGE,BLACK,TRIM0#,1#,2#

sub90467-06020¥190

main90467-06020-C4iMZEA11..TUR;ZWE219..G,N;MZEA11..N..EUR;ZWE219..D..TUR;ZRE210..CVT..(G,N)..RUS202301

HIGH GRADE PACKAGE,BLACK,TRIM1#,2#

sub90467-06020¥190

main90467-06020-C4iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR202301

BLACK,TRIM0#,1#,2#

sub90467-06020¥190

main90467-06020-C4iZRE211..N..GCC201901-202301

BLACK,TRIM0#,2#

sub90467-06020¥190

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02440-C0iZWE219..G,N;MZEA11,ZRE210..G..(RUS,TUR)202301

HIGH GRADE PACKAGE,BLACK,TRIM0#,1#,2#

main64710-02440-C0iZWE219..G,N;MZEA11,ZRE210..G..(RUS,TUR)202301

HIGH GRADE PACKAGE,BLACK,TRIM1#,2#

main64710-02440-C0iZRE210..G..RUS201901-202301

BLACK,TRIM0#,2#

main64710-02440-C0iZWE219..G,N;MZEA11,ZRE210..G..(RUS,TUR)202301

BLACK,TRIM0#,1#,2#

main64710-02580-C0iZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS)201901-202301

BLACK,TRIM0#,2#

main64710-02580-C0iZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS)201901-202301

LIGHT GRADE,BLACK,TRIM0#,2#

main64710-02580-C0iZRE211..LHD..N;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE210..N..(EUR,TUR)202301

BLACK,TRIM0#,1#,2#

main64710-02720-C0iMZEA11,ZRE210..N..EUR201901-202301

LUGGAGE ROOM & DECK TRIM-SIDE(WITHOUT(FELT)) & REAR,BLACK,TRIM0#,2#

main64710-02720-C0iZRE210..RHD..EUR201901-202301

BLACK,TRIM0#,2#

main64710-02720-C0iMZEA11,ZWE219..D..TUR202301

BLACK,TRIM0#,1#,2#

main64710-02720-C0iMZEA11,ZWE219..D..TUR202301

ENTRY GRADE,BLACK,TRIM0#,2#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-W0007iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥80201901-202301

LIGHT GRADE

main90467-W0007iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1¥80201901-202012

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02290-C0iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)201901-202301

BLACK,TRIM0#,2#

main64719-02290-C0iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BLACK,TRIM0#,1#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-W0007iZRE210..G..EUR;ZRE210..RHD..EUR¥80201901-202301

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02420-C0iZWE219..G,N;MZEA11,ZRE210..G..(RUS,TUR)202301

HIGH GRADE PACKAGE,BLACK,TRIM1#,2#

main64720-02420-C0iZRE211..N..GCC202301

HIGH GRADE PACKAGE,BLACK,TRIM0#,1#,2#

main64720-02420-C0iZRE211..LHD..N..GEN202301

BLACK,TRIM0#,1#,2#

main64720-02420-C0iZRE210..G..EUR201901-202301

BLACK,TRIM0#,2#

main64720-02560-C0iZRE210..N..EUR;ZWE219..D..TUR;MZEA11..6F..TUR;MZEA11..6F..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..CVT..(D,N)201901-202301

BLACK,TRIM0#,2#

main64720-02560-C0iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

LIGHT GRADE,BLACK,TRIM0#,2#

main64720-02560-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

BLACK,TRIM0#,1#,2#

main64720-02560-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

ENTRY GRADE,BLACK,TRIM0#,2#

64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER

main64726-26010-C2iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

BLACK,TRIM0#,2#

main64726-26010-C2iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

LIGHT GRADE,BLACK,TRIM0#,2#

main64726-26010-C2iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

BLACK,TRIM0#,1#,2#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-33090-C2iZRE210..G..EUR201901-202301

BLACK,TRIM0#,2#

main64725-33090-C2iZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)201901-202301

LIGHT GRADE,BLACK,TRIM0#,2#

main64725-33090-C2iZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301

BLACK,TRIM0#,1#,2#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-02110iZRE21#,ZWE211201901-202002

LIGHT GRADE

64771COVER, SPARE WHEEL

main64771-02520-C0iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)201901-202301

BLACK,TRIM0#,2#

main64771-02520-C0iZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN)202301

BLACK,TRIM0#,1#,2#

64777GCUSHION, SPARE WHEEL

main64777-02380iMZEA11..LHD..D;ZWE219..D..TUR;MZEA11,ZWE219..LHD..CVT..(D,N)..EUR202301

SPARE TIRE-GROUND TIRE(ALUMINUM)

main64777-02380iMZEA11..N..EUR;MZEA11..(G,N)..TUR;ZWE219..LHD..(G,N)..(EUR,TUR)202301

SPARE TIRE-GROUND TIRE(STEEL)

main64777-02380iZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

SPARE TIRE-GROUND TIRE

main64777-02390iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

64779ASTOPPER, SPARE WHEEL COVER

main64779-26010iZRE210..G..EUR;ZRE210..RHD..EUR¥220201901-202012

main64779-26010iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥220201901-202301

LIGHT GRADE

90119W0134

main90119-W0134¥60

9046709206

main90467-09206¥80

25 parts on this diagram · 1 diagram in section
