Toyota COROLLA (TUP) — METER

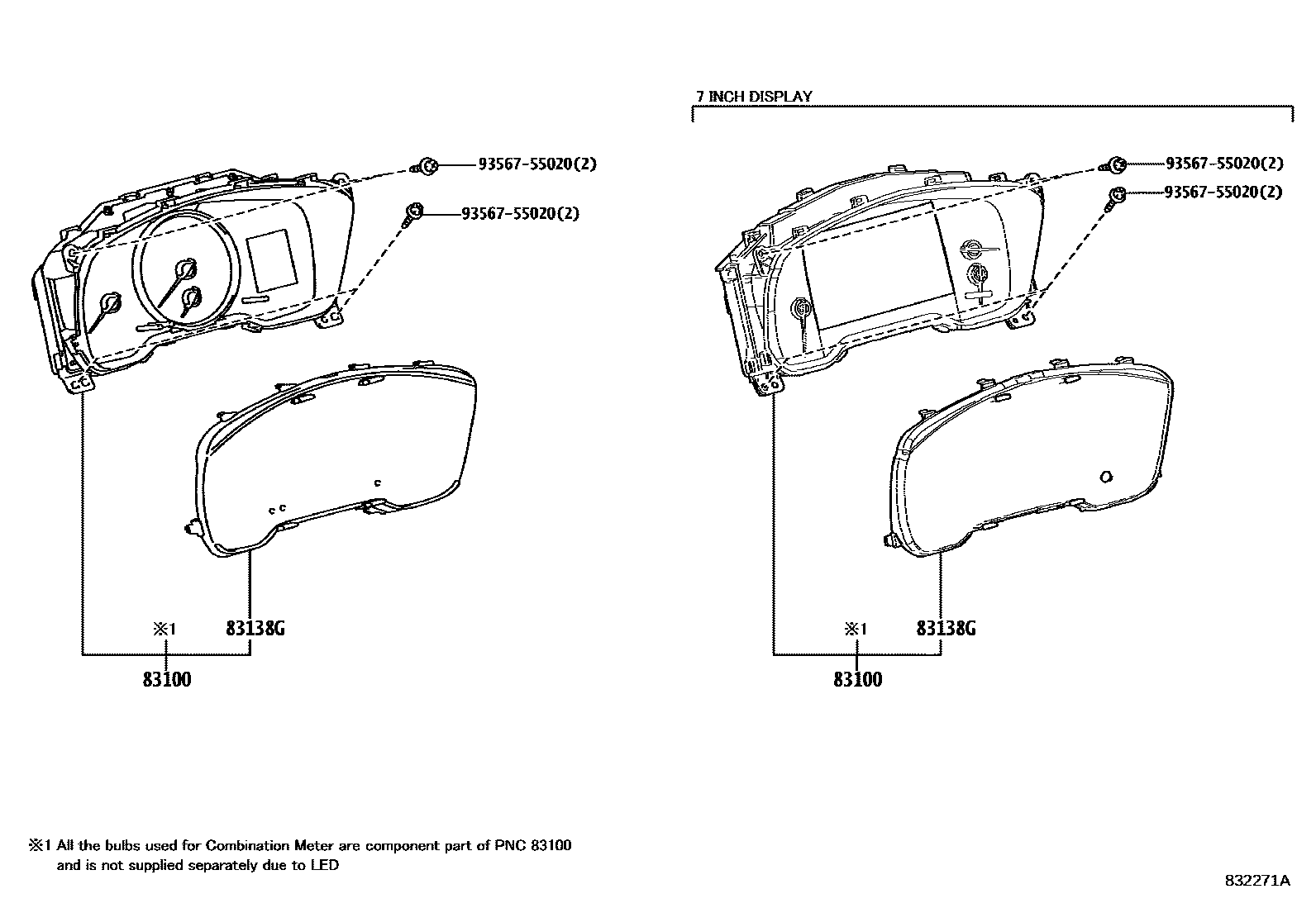

83100METER ASSY, COMBINATION

main83800-0ZW90i202301-202501

DENSO

main83800-0ZW90i202301-202501

DENSO,MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-1AN30i201901-202011

YAZAKI

main83800-1AN30i201901-202011

YAZAKI,STEERING SWITCH-WITHOUT&MULTI INFORMATION DISPLAY-SEGMENT DISPLAY

main83800-FE130i201901-202011

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FE130i201901-202011

DENSO

main83800-FE130i201901-202011

DENSO,TOYOTA SAFETY SENSE-WITH&STEERING SWITCH- WITH(DISPLAY & *LDA)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FE130i201901-202011

DENSO,STEERING SWITCH-WITH(DISPLAY & CRUISE CONTROL)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FE130i201901-202011

DENSO,STEERING SWITCH-WITH&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FE200i201901-202011

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83800-FE200i201901-202011

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83800-FE200i201901-202011

DENSO

main83800-FE220i201901-202011

DENSO

main83800-FE220i201901-202011

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83800-FE240i201901-202011

DENSO

main83800-FE240i201901-202011

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83800-FE240i201901-202011

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83800-FE250i201901-202011

DENSO,HEADLAMP-LED&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FE250i201901-202011

DENSO

main83800-FE250i201901-202011

DENSO,HEADLAMP-LED

main83800-FEA10i201901-202011

DENSO,REAR COMBINATION LAMP-LED(TURN)

main83800-FEA10i201901-202011

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FEA10i201901-202011

DENSO

main83800-FEA20i201901-202011

DENSO

main83800-FEA90i201901-202011

DENSO

main83800-FEF50i202301-202305

DENSO

main83800-FEF51i202306-202402

DENSO

main83800-FEQ20i202011-202102

DENSO

main83800-FEQ20i202011-202102

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FEQ21i202103

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FEQ21i202103-202301

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FEQ21i202103-202301

DENSO

main83800-FEQ21i202103

DENSO

main83800-FEQ50i202011-202102

DENSO

sub83800-FEQ51

main83800-FEQ50i202011-202102

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

sub83800-FEQ51

main83800-FEQ50i202011-202012

DENSO,REAR COMBINATION LAMP-LED(TURN)

sub83800-FEQ51

main83800-FEQ50i202011-202012

DENSO

sub83800-FEQ51

main83800-FEQ51i202103

DENSO

main83800-FEQ51i202103

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FER10i202011-202102

DENSO

sub83800-FER11

main83800-FER10i202011-202102

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

sub83800-FER11

main83800-FER11i202103-202301

DENSO

main83800-FER11i202103

DENSO

main83800-FER11i202103-202301

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FER20i202011-202102

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

sub83800-FER21

main83800-FER20i202011-202102

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

sub83800-FER21

main83800-FER20i202011-202102

DENSO

sub83800-FER21

main83800-FER21i202103-202301

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83800-FER21i202103-202301

DENSO

main83800-FER21i202103-202301

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83800-FER40i202011-202102

DENSO

sub83800-FER41

main83800-FER41i202103-202301

DENSO

main83800-FER41i202103

DENSO

main83800-FER50i202011-202102

DENSO

sub83800-FER51

main83800-FER50i202011-202102

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

sub83800-FER51

main83800-FER50i202011-202102

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

sub83800-FER51

main83800-FER50i202011-202012

DENSO

sub83800-FER51

main83800-FER51i202103

DENSO

main83800-FER51i202103

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83800-FER70i202011-202102

DENSO

sub83800-FER71

main83800-FER71i202103

DENSO

main83800-FER71i202103-202301

DENSO

main83800-FER80i202011-202102

DENSO

sub83800-FER81

main83800-FER80i202011-202102

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

sub83800-FER81

main83800-FER80i202011-202102

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

sub83800-FER81

main83800-FER81i202103

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83800-FER81i202103

DENSO

main83800-FER81i202103

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83800-FES00i202011-202102

DENSO

sub83800-FES01

main83800-FES00i202011-202102

DENSO,HEADLAMP-LED&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

sub83800-FES01

main83800-FES00i202011-202102

DENSO,HEADLAMP-LED

sub83800-FES01

main83800-FES01i202103

DENSO,HEADLAMP-LED&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-FES01i202103

DENSO,HEADLAMP-LED

main83800-FES01i202103

DENSO

main83800-FEW70i202011-202102

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

sub83800-FEW71

main83800-FEW70i202011-202102

DENSO

sub83800-FEW71

main83800-FEW70i202011-202102

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

sub83800-FEW71

main83800-FEW71i202103

DENSO

main83800-FEW90i202011-202102

DENSO

sub83800-FEW91

main83800-FEW91i202103-202301

DENSO

main83A00-02500i202301-202305

DENSO

main83A00-02501i202306-202402

DENSO

main83A00-02530i202301-202305

DENSO

main83A00-02530i202301-202305

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02531i202306-202402

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02531i202306-202402

DENSO

main83A00-02540i202301-202306

DENSO

main83A00-02540i202301-202306

DENSO,ENTRY GRADE

main83A00-02541i202307-202402

DENSO

main83A00-02541i202307-202402

DENSO,ENTRY GRADE

main83A00-02550i202301-202308

DENSO

sub83A00-02551

main83A00-02551i202309-202310

DENSO

sub83A00-02552

main83A00-02552i202311-202402

DENSO

main83A00-02570i202301-202308

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02570i202301-202308

DENSO

main83A00-02570i202301-202308

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02571i202309-202310

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02571i202309-202310

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02571i202309-202310

DENSO

main83A00-02572i202311-202402

DENSO

main83A00-02572i202311-202402

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02572i202311-202402

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02580i202301-202306

DENSO,MOROCCO SPEC&ENTRY GRADE

main83A00-02580i202301-202306

DENSO,GEORGIA SPEC&ENTRY GRADE

main83A00-02580i202301-202306

DENSO

main83A00-02580i202301-202306

DENSO,AZERBAIJAN SPEC&ENTRY GRADE

main83A00-02581i202307-202402

DENSO

main83A00-02581i202307-202402

DENSO,MOROCCO SPEC&ENTRY GRADE

main83A00-02581i202307-202402

DENSO,GEORGIA SPEC&ENTRY GRADE

main83A00-02581i202307-202402

DENSO,AZERBAIJAN SPEC&ENTRY GRADE

main83A00-02620i202301-202302

DENSO

main83A00-02621i202302-202308

DENSO

sub83A00-02622

main83A00-02622i202309-202310

DENSO

sub83A00-02623

main83A00-02623i202311-202402

DENSO

sub83A00-02624

main83A00-02650i202301-202302

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02650i202301-202302

DENSO

main83A00-02650i202301-202302

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02651i202302-202308

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

sub83A00-02652

main83A00-02651i202302-202308

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

sub83A00-02652

main83A00-02651i202302-202308

DENSO

sub83A00-02652

main83A00-02652i202309-202310

DENSO

sub83A00-02653

main83A00-02652i202309-202310

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

sub83A00-02653

main83A00-02652i202309-202310

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

sub83A00-02653

main83A00-02653i202311-202402

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02653i202311-202402

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02653i202311-202402

DENSO

main83A00-02N10i202402-202408

DENSO,ENTRY GRADE

main83A00-02N10i202402-202408

DENSO

main83A00-02N11i202409

DENSO

main83A00-02N11i202409

DENSO,ENTRY GRADE

main83A00-02N40i202402-202408

DENSO

main83A00-02N40i202402-202408

DENSO,AZERBAIJAN SPEC&ENTRY GRADE

main83A00-02N40i202402-202408

DENSO,GEORGIA SPEC&ENTRY GRADE

main83A00-02N40i202402-202408

DENSO,MOROCCO SPEC&ENTRY GRADE

main83A00-02N41i202409

DENSO

main83A00-02N41i202409

DENSO,MOROCCO SPEC&ENTRY GRADE

main83A00-02N41i202409

DENSO,GEORGIA SPEC&ENTRY GRADE

main83A00-02N41i202409

DENSO,AZERBAIJAN SPEC&ENTRY GRADE

main83A00-02N70i202402-202408

DENSO

sub83A00-02N71

main83A00-02N71i202409-202411

DENSO

main83A00-02N72i202412

DENSO

main83A00-02N80i202402-202408

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02N80i202402-202408

DENSO

main83A00-02N81i202409-202411

DENSO

main83A00-02N81i202409-202411

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02N82i202412

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02N82i202412

DENSO

main83A00-02P30i202402-202408

DENSO

main83A00-02P31i202409-202411

DENSO

main83A00-02P32i202412

DENSO

main83A00-02P50i202402-202408

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P50i202402-202408

DENSO

main83A00-02P50i202402-202408

DENSO,MOLDOVA SPEC&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P50i202402-202408

DENSO,UKRAINE SPEC&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P50i202402-202408

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P51i202409-202411

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P51i202409-202411

DENSO

main83A00-02P51i202409-202411

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P51i202409-202411

DENSO,UKRAINE SPEC&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P51i202409-202411

DENSO,MOLDOVA SPEC&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P52i202412

DENSO,UKRAINE SPEC&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P52i202412

DENSO,MOLDOVA SPEC&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P52i202412

DENSO

main83A00-02P52i202412

DENSO,HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P52i202412

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02P90i202402-202408

DENSO

main83A00-02P91i202409-202412

DENSO

main83A00-02Q10i202402-202408

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02Q10i202402-202408

DENSO

main83A00-02Q11i202409-202412

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02Q11i202409-202412

DENSO

main83A00-02Q20i202402-202408

DENSO

main83A00-02Q21i202409-202411

DENSO

main83A00-02Q22i202412

DENSO

main83A00-02Z20i202412-202502

DENSO

main83A00-02Z40i202412-202502

DENSO,HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83A00-02Z40i202412-202502

DENSO

83138GGLASS, COMBINATION METER

main83852-02500i202301-202402

main83852-02500i202301-202302

main83852-1AN20i201901-202011

TOYOTA SAFETY SENSE-WITHOUT&STEERING SWITCH-WITHOUT&MULTI INFORMATION DISPLAY-SEGMENT DISPLAY

main83852-1AN20i201901-202011

STEERING SWITCH-WITHOUT&MULTI INFORMATION DISPLAY-SEGMENT DISPLAY

main83852-F2X20i201901

HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i201901

HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i201901

MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i201901

REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i201901-202012

main83852-F2X20i201901-202301

HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i201901-202301

HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i201901-202301

REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i201901-202301

MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i202011-202301

HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i202011-202301

HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2X20i202011-202301

REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-F2Y20i202301-202402

GEORGIA SPEC&ENTRY GRADE

main83852-F2Y20i202301-202402

GEORGIA SPEC&ENTRY GRADE&HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

GEORGIA SPEC&ENTRY GRADE&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

GEORGIA SPEC&ENTRY GRADE&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

AZERBAIJAN SPEC&ENTRY GRADE

main83852-F2Y20i202301-202402

AZERBAIJAN SPEC&ENTRY GRADE&HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

AZERBAIJAN SPEC&ENTRY GRADE&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

AZERBAIJAN SPEC&ENTRY GRADE&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

ENTRY GRADE

main83852-F2Y20i202301-202402

ENTRY GRADE&HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

ENTRY GRADE&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

ENTRY GRADE&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

MOROCCO SPEC&ENTRY GRADE

main83852-F2Y20i202301-202402

MOROCCO SPEC&ENTRY GRADE&HEADLAMP-LED & WITH(*AHB)&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

MOROCCO SPEC&ENTRY GRADE&HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301-202402

MOROCCO SPEC&ENTRY GRADE&REAR COMBINATION LAMP-LED(TURN)

main83852-F2Y20i202301

HEADLAMP-LED&REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83852-F2Y20i202301

REAR COMBINATION LAMP-LED(TURN)&SEAT COVER MATERIAL-FABRIC

main83852-F2Y20i202301

REAR COMBINATION LAMP-LED(TURN)&MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83852-F2Y20i202301

SEAT COVER MATERIAL-FABRIC

main83852-F2Y20i202301

MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83852-F2Y20i201901-202012

main83852-F2Y20i201901-202301

main83852-F2Y20i201901

HEADLAMP-LED

main83852-F2Y20i201901

HEADLAMP-LED&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

9356755020

main93567-55020¥70

3 parts on this diagram · 4 diagrams in section
