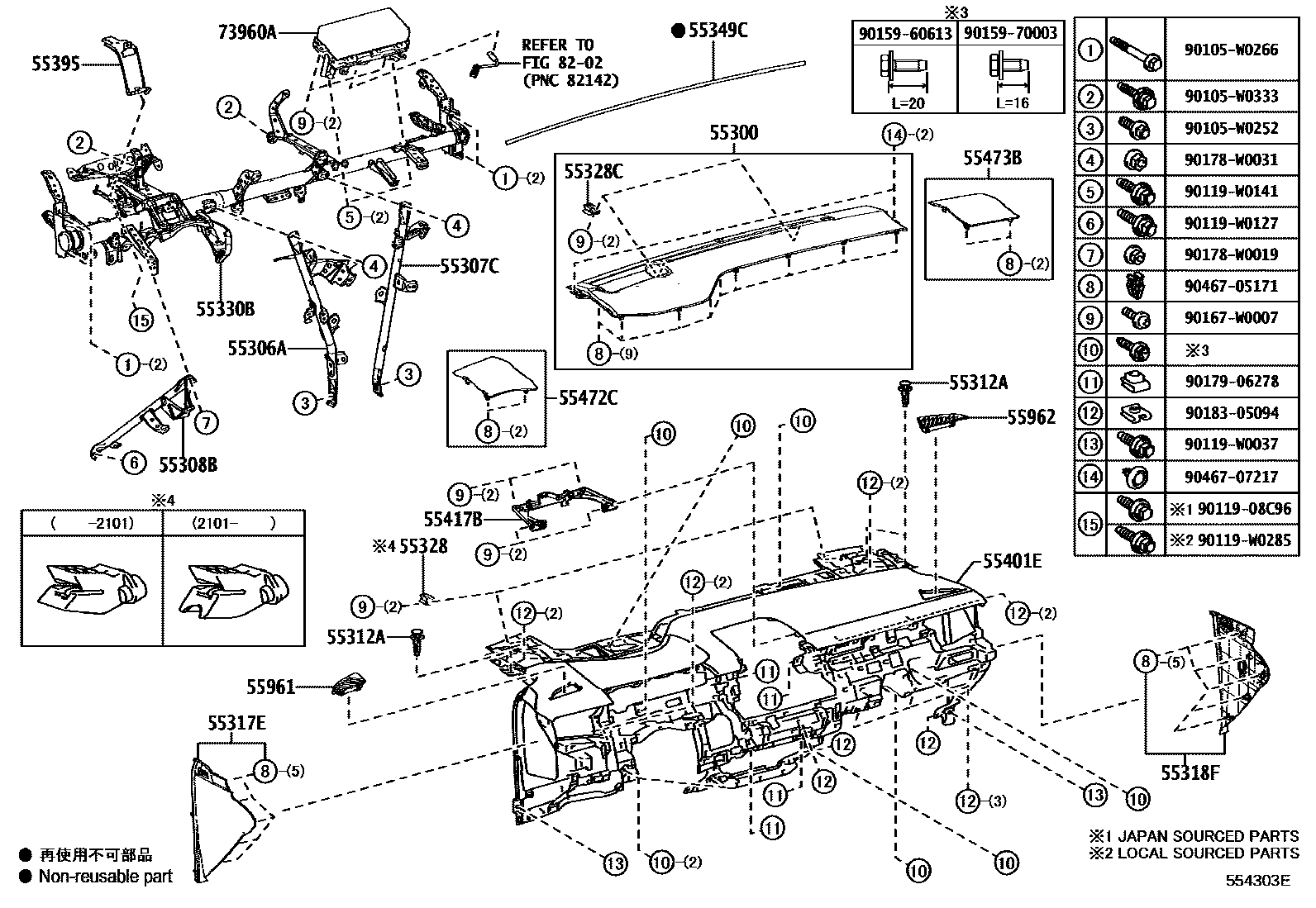

Toyota COROLLA (TUP) — INSTRUMENT PANEL & GLOVE COMPARTMENT
55300PANEL ASSY, INSTRUMENT, UPPER
TOYOTA SAFETY SENSE-WITHOUT&MULTI INFORMATION DISPLAY- 7INCH DISPLAY(3D-EFFECT),BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
main55300-02080-C0iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-02520iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-02510iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-02150iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901-202301
55312ACLIP, INSTRUMENT PANEL
55317EPANEL, INSTRUMENT SIDE, NO.1
main55317-02700-C0iMZEA11..TUR;ZRE211..LHD..N;ZWE219..D..TUR;ZWE219..LHD..(G,N);MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..(G,N)..(GEN,RUS)202301
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
main55317-02710-C0iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
55318FPANEL, INSTRUMENT SIDE, NO.2
main55318-02340-C0iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-02110iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202407
main55328-12430iZWE211,213;ZRE211..RHD;MZEA11..6F..G;ZRE210..D..EUR;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..RHD..CVT..D;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);MZEA11,ZRE211..¥340202101-202406
55328CPIN, INSTRUMENT PANEL, NO.2
main55328-12440iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥370202101-202301
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
TOYOTA SAFETY SENSE-WITHOUT&MULTI INFORMATION DISPLAY- 7INCH DISPLAY(3D-EFFECT)
GR SPORT&TOYOTA SAFETY SENSE-WITHOUT&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&MULTI INFORMATION DISPLAY- 7INCH DISPLAY(3D-EFFECT)
main55330-02A01iMZEA11..6F..G;ZRE210..LHD..6F..D..(EUR,GCC,GEN);ZRE210..LHD..6F..N..(GCC,GEN,RUS)202110
TOYOTA SAFETY SENSE-WITHOUT&MULTI INFORMATION DISPLAY- 7INCH DISPLAY(3D-EFFECT)
TOYOTA SAFETY SENSE-WITHOUT&MULTI INFORMATION DISPLAY- 7INCH DISPLAY(3D-EFFECT)
main55330-02A11iZWE211,213..LHD;ZRE210..CVT..D..EUR;ZRE210..CVT..N..GCC;MZEA11,ZRE211..CVT..G..(EUR,GCC,GEN)202110-202301
GR SPORT&TOYOTA SAFETY SENSE-WITHOUT&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&MULTI INFORMATION DISPLAY- 7INCH DISPLAY(3D-EFFECT)
main55330-02A11iZWE211,213..LHD;ZRE210..CVT..D..EUR;ZRE210..CVT..N..GCC;MZEA11,ZRE211..CVT..G..(EUR,GCC,GEN)202110
TOYOTA SAFETY SENSE-WITHOUT&MULTI INFORMATION DISPLAY- 7INCH DISPLAY(3D-EFFECT)
main55330-02A11iZWE219..LHD;MZEA11..CVT..TUR;ZRE210..LHD..CVT..D..(GCC,GEN,RUS);ZRE210..LHD..CVT..(G,N)..(EUR,GEN,RUS);MZEA11,ZRE211..LHD..CVT..N..(EUR,GCC,GEN)202301
55349CCUSHION, INSTRUMENT PANEL
main55349-02350iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301
55395BRACKET, INSTRUMENT PANEL TO PEDAL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER,SOFT BLACK,TRIM0#,2#
SOFT BLACK,TRIM0#,2#
AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 4SPEAKER,SOFT BLACK,TRIM0#,2#
AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER,SOFT BLACK,TRIM0#,2#
main55401-02320-C1iZRE210..N..EUR;ZWE219..LHD..N;ZWE219..D..TUR;MZEA11..6F..TUR;MZEA11..6F..N..EUR;MZEA11,ZRE211..LHD..CVT..(D,N);ZRE210..LHD..CVT..N..(GEN,RUS)202301
SOFT BLACK,TRIM0#,1#,2#
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,SOFT BLACK,TRIM0#,2#
SOFT BLACK,TRIM0#,2#
INSTRUMENT PANEL-SOFT PAD(WITHOUT(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,SOFT BLACK,TRIM0#,2#
INSTRUMENT PANEL-SOFT PAD(WITH(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,SOFT BLACK,TRIM0#,2#
AUDIO(FOR OVERSEAS MARKET)- T1(7INCH) & DVD & *BT & USB & 6SPEAKER,SOFT BLACK,TRIM0#,2#
SOFT BLACK,TRIM0#,2#
SEAT COVER MATERIAL- LEATHER,SOFT BLACK,TRIM0#,2#
HIGH GRADE PACKAGE,SOFT BLACK,TRIM0#,1#,2#
SOFT BLACK,TRIM1#,2#
HIGH GRADE PACKAGE,SOFT BLACK,TRIM1#,2#
SOFT BLACK,TRIM1#,2#
AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER,SOFT BLACK,TRIM1#,2#
AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER,SOFT BLACK,TRIM1#,2#
main55401-02600-C1iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD201901-202301
SOFT BLACK,TRIM0#,2#
SOFT BLACK,TRIM0#,1#,2#
55417BRETAINER, RADIO TUNER FINISH
AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER
AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER
AUDIO COVER-WITH
SEAT COVER MATERIAL-LEATHER&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER
INSTRUMENT PANEL-SOFT PAD(WITHOUT(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER
INSTRUMENT PANEL-SOFT PAD(WITH(STITCH) & RADIO LESS)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER
SEAT COVER MATERIAL- LEATHER&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)- T1(7INCH) & DVD & *BT & USB & 6SPEAKER
SEAT COVER MATERIAL-LEATHER&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
main55472-02080-C0iMZEA11..TUR;ZRE211..LHD..N;ZWE219..D..TUR;ZWE219..LHD..(G,N);MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..(G,N)..(GEN,RUS)201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
main55472-02090-C0iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
MOLDOVA SPEC,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL,BLACK,TRIM0#,2#
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&AUDIO(FOR OVERSEAS MARKET)-CD &*BT & USB & 6SPEAKER,BLACK,TRIM0#,2#
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,BLACK,TRIM0#,2#
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER,BLACK,TRIM0#,2#
main55473-02060-C0iZRE211..G;ZWE211..GCC,GEN;ZRE210..CVT..N..GCC;ZRE210..LHD..CVT..D..EUR;ZRE210..LHD..6F..(GCC,GEN)201901
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&UKRAINE SPEC,BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL,BLACK,TRIM0#,1#,2#
UKRAINE SPEC,BLACK,TRIM0#,1#,2#
UKRAINE SPEC,BLACK,TRIM0#,2#
MOLDOVA SPEC,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-02440iZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
TURKEY SPEC&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
UKRAINE SPEC&SRS AIR BAG-WITH(*DRP & SIDE)
UKRAINE SPEC&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
UKRAINE SPEC& EURO-NCAP-WITHOUT&SEAT HEATER-WITH(DRIVER & PASSENGER)&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC&SRS AIR BAG-WITH(*DRP)
UKRAINE SPEC& EURO-NCAP-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
TURKEY SPEC& EURO-NCAP-WITHOUT&SEAT HEATER-WITH(DRIVER & PASSENGER)
TURKEY SPEC& EURO-NCAP-WITHOUT&SEAT LUMBAR SUPPORT-WITHOUT
TURKEY SPEC& EURO-NCAP-WITHOUT
UKRAINE SPEC& EURO-NCAP-WITHOUT&SEAT LUMBAR SUPPORT-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main73960-02440iZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N;MZEA11,ZWE219..GCC,GEN,TUR;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202301
8202
90105W0252
main90105-W0252
90105W0266
main90105-W0266
90105W0333
main90105-W0333
9011908C96
90119W0037
90119W0127
90119W0141
main90119-W0141
90119W0285
main90119-W0285
9015960613
9015970003
90167W0007
90178W0019
90178W0031
9017906278
9018305094
9046705171
9046707217
37 parts on this diagram · 8 diagrams in section
