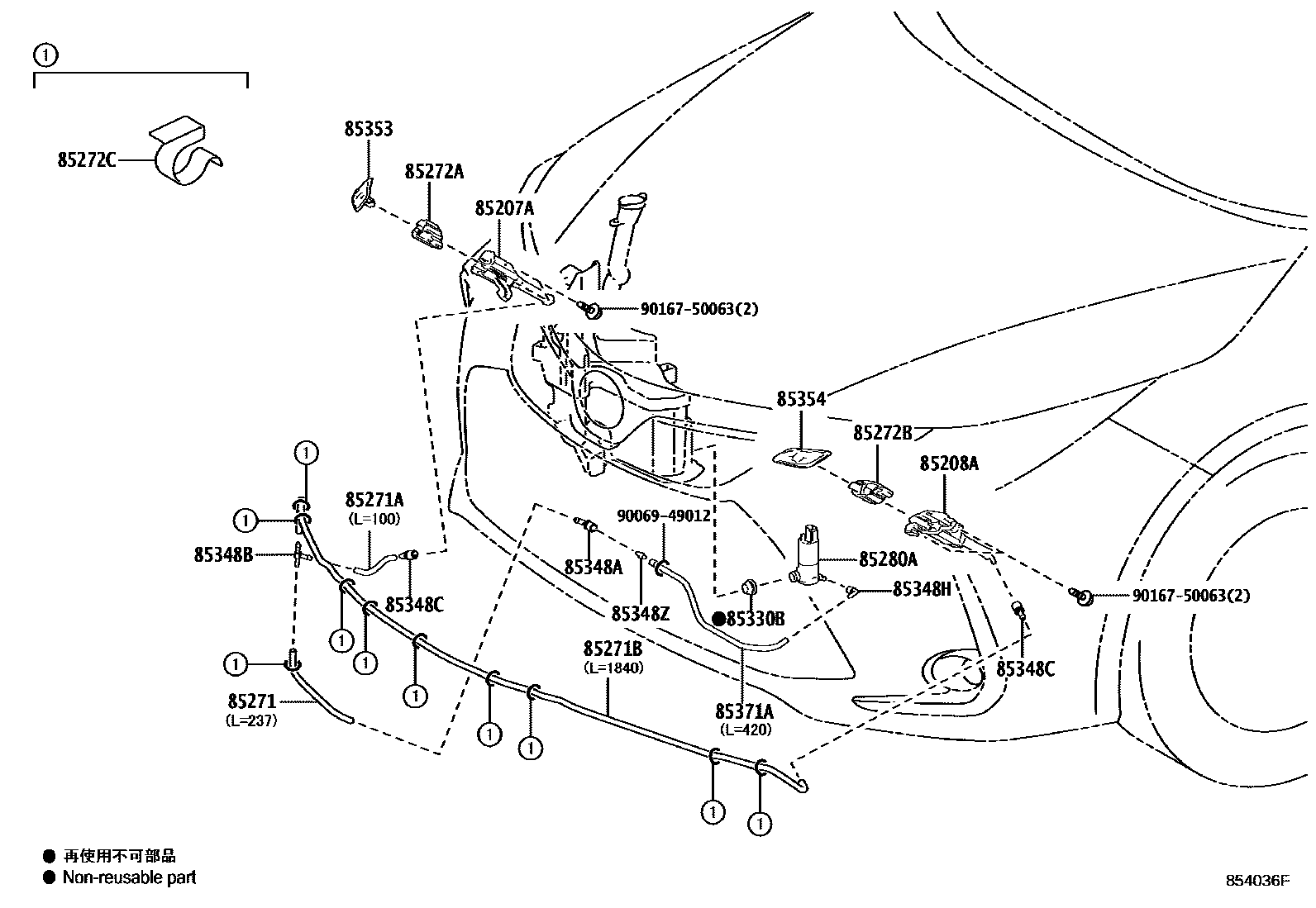

Toyota COROLLA (TUP) — HEADLAMP CLEANER

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-0W050

main85271-0W060

85271AHOSE, HEADLAMP CLEANER, NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

85272ACLAMP, HEADLAMP CLEANER, NO.1

85272BCLAMP, HEADLAMP CLEANER, NO.2

85272CCLAMP, HEADLAMP CLEANER, NO.3

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85330BBUSH, HEADLAMP CLEANER WASHER JAR

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5

85353COVER, HEADLAMP WASHER, RH

main85353-02909

85354COVER, HEADLAMP WASHER, LH

main85354-02909

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

9006949012

main90069-49012

9016750063

main90167-50063¥60

20 parts on this diagram · 1 diagram in section
