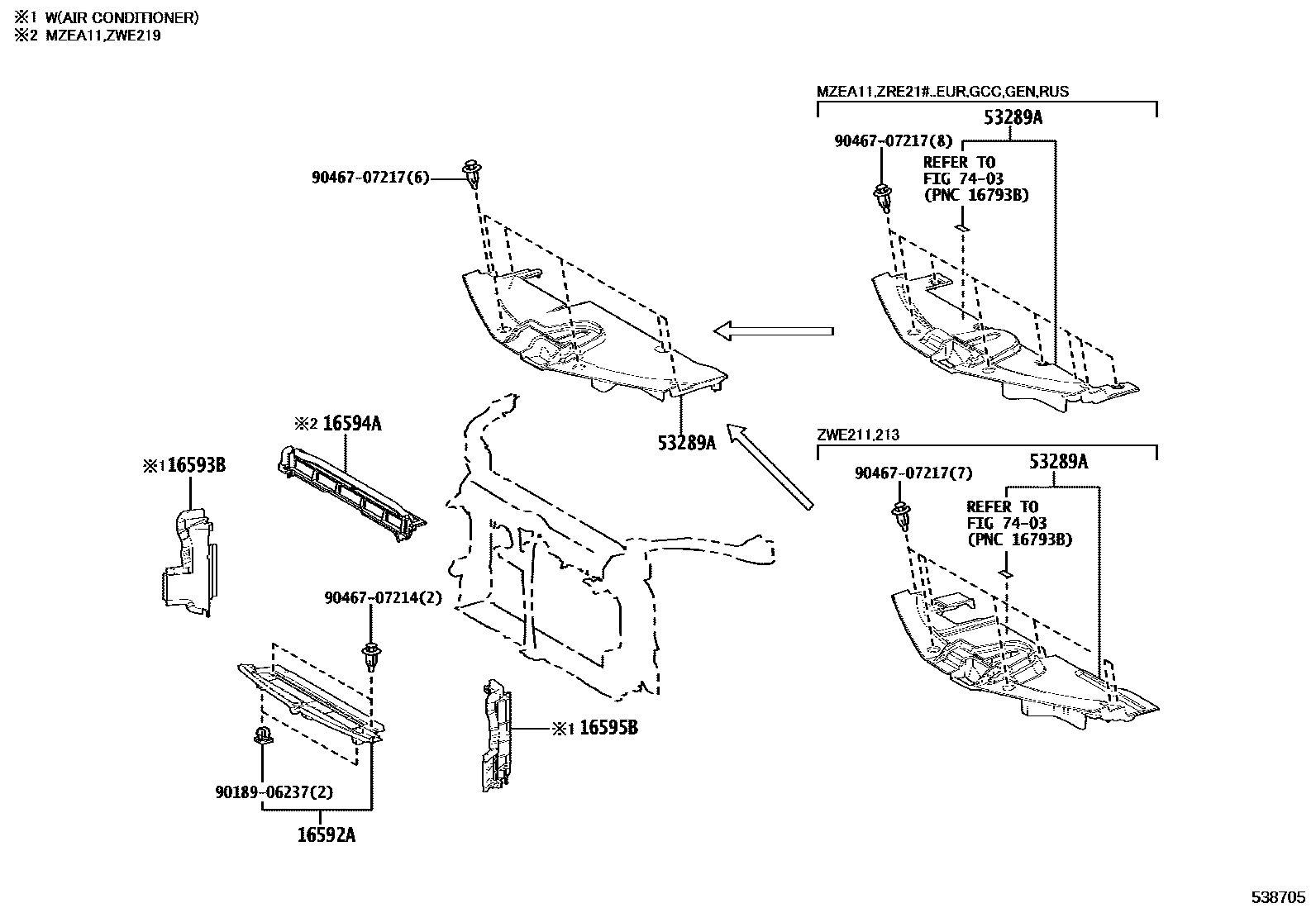

Toyota COROLLA (TUP) — FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL 0004 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-0T110i2ZRFXE..ZWE219;M15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR201901-202301

main16592-0T150i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202301

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0T150i1ZRFAE..ZRE210..RHD201901-202301

AIR CONDITIONER-COOLER LESS

main16593-0T150i1ZRFAE..ZRE210..LHD..6F..D201901

LIGHT GRADE&AIR CONDITIONER-COOLER LESS

main16593-0T150i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202301

main16593-0T150i1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

AIR CONDITIONER-MANUAL AIR CONDITIONER

main16593-F2050iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F2020iM15AFKS..MZEA11..LHD..(D,N)202011-202301

main16594-F3040i2ZRFXE..ZWE219;M15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-0T160i2ZRFXE..ZWE211,213201901

main16595-0T170i1ZRFAE..ZRE210..LHD..CVT..D201901-202301

AIR CONDITIONER-COOLER LESS

main16595-0T170i1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

AIR CONDITIONER-MANUAL AIR CONDITIONER

main16595-0T170i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,G201901

LIGHT GRADE&AIR CONDITIONER-COOLER LESS

main16595-0T170i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202301

main16595-F2050iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-02150iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

main53289-02151iZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202301

main53289-02160iZWE211,213201901

main53289-02240iZWE219202301

main53289-02250iMZEA11..TUR;MZEA11..LHD..(D,N)..EUR202301

7403

9018906237

main90189-06237¥100

9046707214

main90467-07214¥70

9046707217

main90467-07217¥80

9 parts on this diagram · 4 diagrams in section
