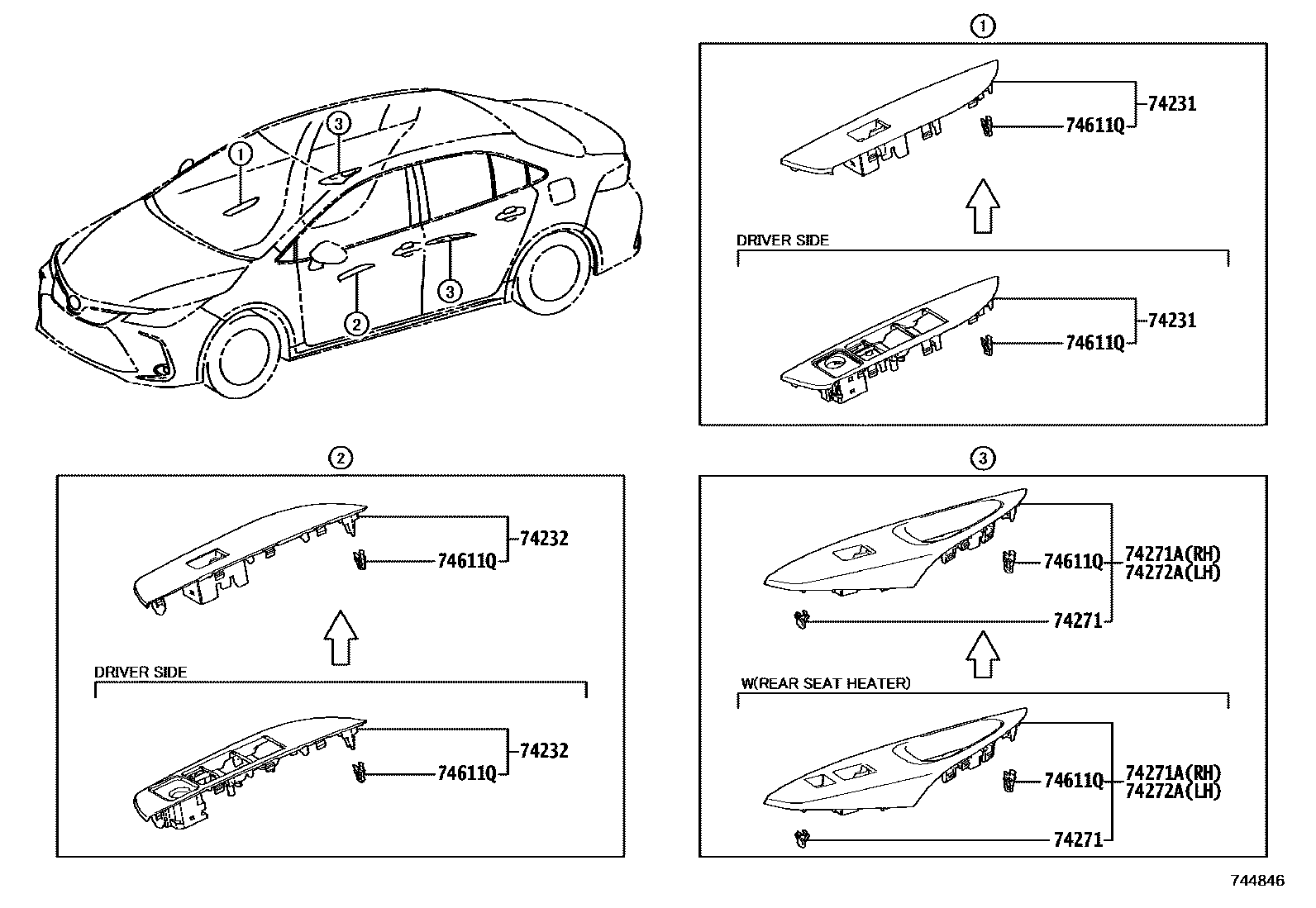

Toyota COROLLA (TUP) — ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02F60iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
main74231-02F60iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301
main74231-02F60iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02G20iMZEA11..LHD..D;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZWE219..LHD..(D,N);ZRE210..CVT..D..GCC;ZRE21#..LHD..CVT..(D,N)..(GEN,RUS)202301
OUTSIDE REAR VIEW MIRROR-*162 & *HEA
main74232-02G20iMZEA11..LHD..D;ZRE211..LHD..N;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(D,N)..(GEN,RUS)201901-202301
OUTSIDE REAR VIEW MIRROR-*162
OUTSIDE REAR VIEW MIRROR-*162 & *HEA
main74232-02G20iZRE210..6F..N..RUS;ZWE211,213..LHD..N;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..LHD..6F..(GCC,GEN)201901
main74232-02J70iZRE210..N..GCC;ZWE211,213..LHD..N;ZRE210..LHD..6F..D..EUR;ZRE210..LHD..6F..N..(GEN,RUS)201901
OUTSIDE REAR VIEW MIRROR-*273 & *HEA
main74232-02J70iZRE210..N..GCC;ZWE211,213..LHD..N;ZRE210..LHD..6F..D..EUR;ZRE210..LHD..6F..N..(GEN,RUS)201901
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA
main74232-02J70iZRE210..N..GCC;ZWE211,213..LHD..N;ZRE210..LHD..6F..D..EUR;ZRE210..LHD..6F..N..(GEN,RUS)201901
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
main74232-02J70iZRE210..N..GCC;ZWE211,213..LHD..N;ZRE210..LHD..6F..D..EUR;ZRE210..LHD..6F..N..(GEN,RUS)201901
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA & *BSM
HIGH GRADE PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT LUMBAR SUPPORT-WITH
OUTSIDE REAR VIEW MIRROR-*273 & *HEA
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL-LEATHER
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA & *BSM
OUTSIDE REAR VIEW MIRROR-*273 & *HEA
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
74271RETAINER, DOOR ARMREST
main55416-60030iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥80201901-202301
main55416-60030iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1¥80201901
main55416-60030iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥80202301
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
TURKEY SPEC&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
main74271-02830iMZEA11..TUR;ZWE219..D,N;ZRE210..D..RUS;ZRE210..N..EUR;ZWE219..G..TUR;ZRE210..CVT..N..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GE202301
main74271-02830iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
TURKEY SPEC&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT LUMBAR SUPPORT-WITH
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA & *BSM&SEAT HEATER-WITH(DRIVER & PASSENGER &REAR)
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
HIGH GRADE PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT LUMBAR SUPPORT-WITH
HIGH GRADE PACKAGE&SEAT LUMBAR SUPPORT-WITH
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL-LEATHER
SEAT LUMBAR SUPPORT-WITH
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-02820iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
main74272-02820iZWE211,213..N;MZEA11,ZRE211..RHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;ZRE211,ZWE211..G..(GCC,GE201901
TURKEY SPEC&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
TURKEY SPEC&SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
main74272-02820iMZEA11..TUR;ZWE219..D,N;ZRE210..D..RUS;ZRE210..N..EUR;ZWE219..G..TUR;ZRE210..CVT..N..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GE202301
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA & *BSM&SEAT HEATER-WITH(DRIVER & PASSENGER &REAR)
HIGH GRADE PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT LUMBAR SUPPORT-WITH
HIGH GRADE PACKAGE&SEAT LUMBAR SUPPORT-WITH
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL-LEATHER
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT LUMBAR SUPPORT-WITH
SEAT LUMBAR SUPPORT-WITH
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
74611QCLIP
main90467-10203iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥60201901-202301
main90467-10203iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1¥60201901
main90467-10203iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥60202301
6 parts on this diagram · 2 diagrams in section
