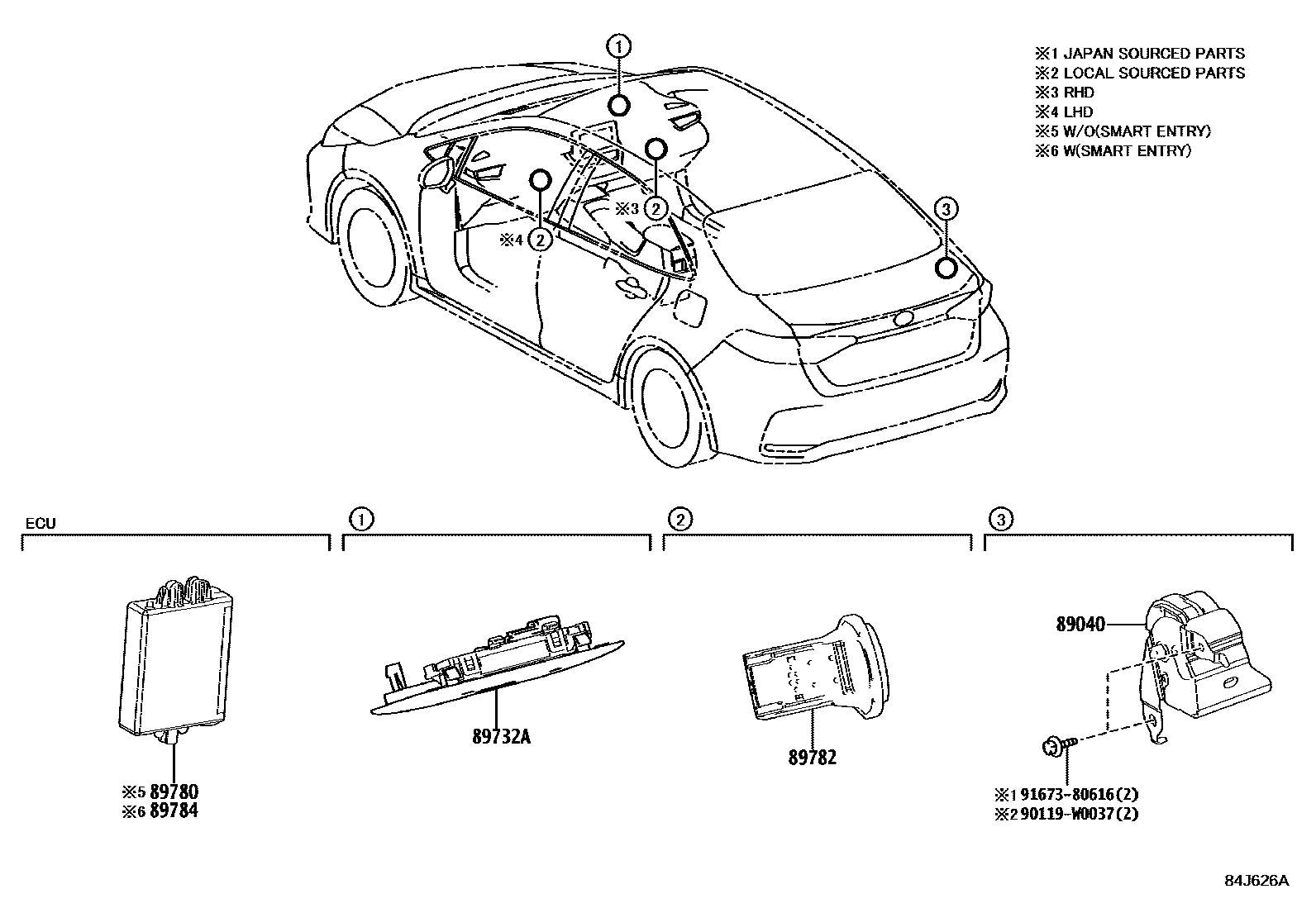

Toyota COROLLA (TUP) — ANTI-THEFT DEVICE
89040SIREN ASSY, THEFT WARNING
UNITED KINGDOM SPEC
89732ASENSOR, THEFT WARNING ULTRASONIC
FROMAGE,TRIM0#,2#
UNITED KINGDOM SPEC,FROMAGE,TRIM0#,2#
FROMAGE,TRIM0#,20
UNITED KINGDOM SPEC,FROMAGE,TRIM0#,20
LT.GRAY,TRIM1#,21
LT.GRAY,TRIM1#,2#
UNITED KINGDOM SPEC,BLACK,TRIM20
BLACK,TRIM20
89780COMPUTER ASSY, TRANSPONDER KEY
main897H0-02010iMZEA11..RHD;ZRE210..RHD..N;ZRE210..CVT..N..RUS;MZEA11,ZRE21#..N..(EUR,GCC)201901-202208
WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)
sub897H0-02011
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&KEY PLATE-FOR SMART(2)
sub897H0-02011
KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
sub897H0-02011
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&KEY PLATE-FOR SMART(2)
WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)
main897H0-02011iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(D,N)..(GEN,RUS)202301
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
main897H0-02011iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(D,N)..(GEN,RUS)202301
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-FOR SMART(2)
main897H0-02011iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(D,N)..(GEN,RUS)202301
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)&KEY PLATE-WITH(DIGITAL KEY)
89782COIL, TRANSPONDER KEY
89784COMPUTER, IMMOBILIZER CODE
KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&KEY PLATE-FOR SMART(2)
WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)&KEY PLATE-FOR SMART(2)
KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH(FOR GR SPORT)
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&KEY PLATE-FOR SMART(2)&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SUN VISOR-*DRP(VANITY MIRROR & LAMP)&STARTING SYSTEM-PUSH START SW
KEY PLATE-FOR SMART(2)
KEY PLATE-FOR SMART(2)
KEY PLATE-FOR SMART(2)&STARTING SYSTEM-PUSH START SWITCH
90119W0037
9167380616
7 parts on this diagram · 1 diagram in section
