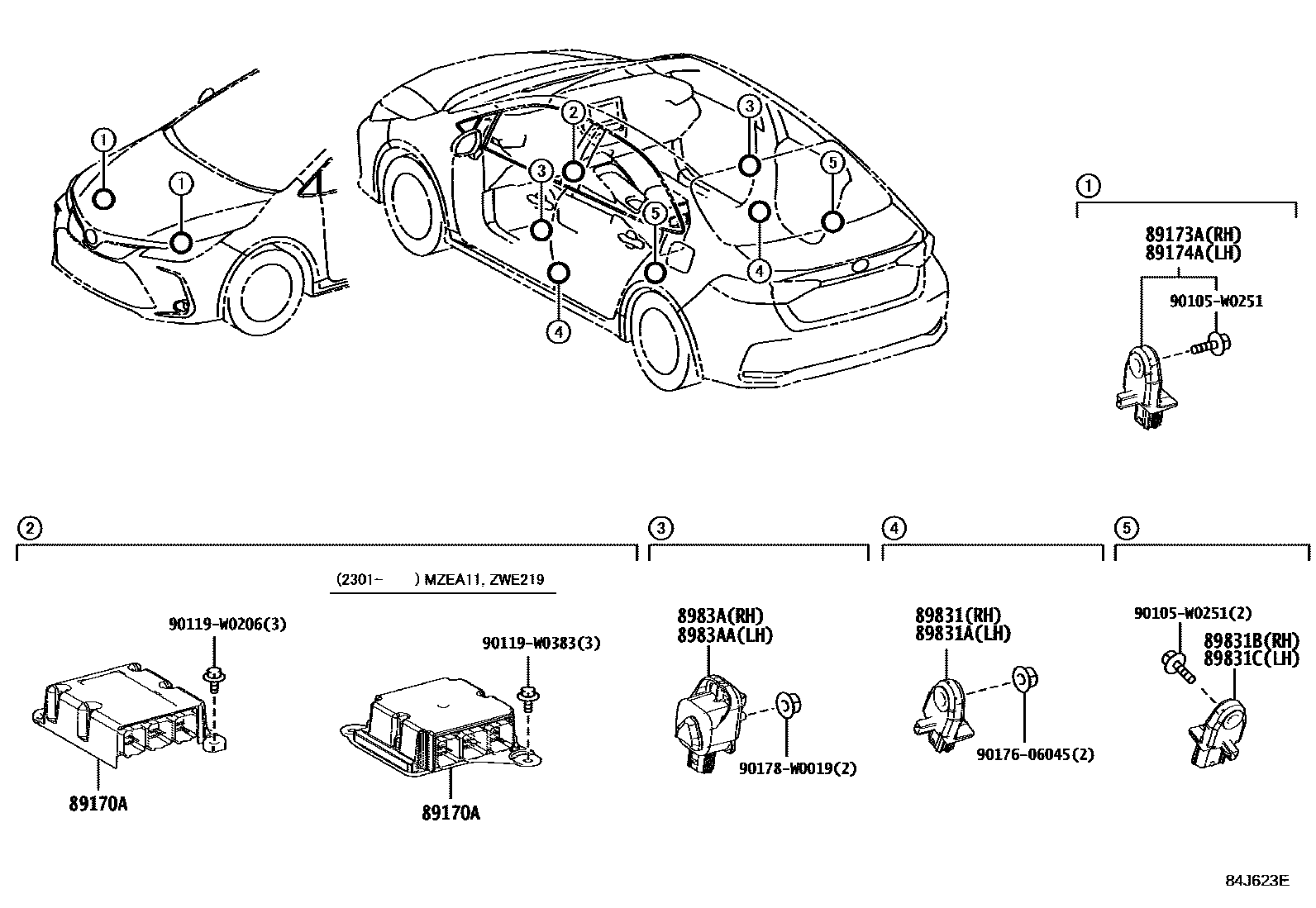

Toyota COROLLA (TUP) — AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-02N70iMZEA11..6F..G;MZEA11..RHD..6F;MZEA11..CVT..(D,G)..EUR;ZRE210..LHD..6F..D..EUR201901-202301
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
SRS AIR BAG-WITH(*DRP & SIDE)
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&UKRAINE SPEC& EURO-NCAP-WITHOUT&SRS AIR BAG-WITH(*DRP & SIDE)
main89170-02P50iZRE210..LHD..CVT..D..EUR;ZRE210..6F..D..(GCC,GEN);ZRE210..RHD..CVT..D..GEN201901-202301
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&SRS AIR BAG-WITH(*DRP & SIDE)
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&UKRAINE SPEC& EURO-NCAP-WITHOUT&SRS AIR BAG-WITH(*DRP)
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL
SRS AIR BAG-WITH(*DRP)
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&SRS AIR BAG-WITH(*DRP)
SRS AIR BAG-WITH(*DRP & SIDE)
SRS AIR BAG-WITH(*DRP)
*614
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA),*614
*614
*614
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL,*614
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL&SRS AIR BAG-WITH(*DRP & SIDE),*614
SRS AIR BAG-WITH(*DRP & SIDE),*614
*614
*614
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA LABEL,*614
SRS AIR BAG-WITH(*DRP),*614
*614
*614
89173ASENSOR, AIRBAG, FRONT RH
main89173-09E10iZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202301
89174ASENSOR, AIRBAG, FRONT LH
89831SENSOR, SIDE AIRBAG, RH, NO.1
main89831-02320iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN201901
SRS AIR BAG-WITH(*DRP & SIDE)
main89831-02320iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN201901
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
main89831-02320iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN201901
SRS AIR BAG-WITH(*DRP)
SRS AIR BAG-WITH(*DRP & SIDE)
SRS AIR BAG-WITH(*DRP)
89831ASENSOR, SIDE AIRBAG, LH, NO.1
main89831-02320iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN201901
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
main89831-02320iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN201901
SRS AIR BAG-WITH(*DRP & SIDE)
main89831-02320iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN201901
SRS AIR BAG-WITH(*DRP)
SRS AIR BAG-WITH(*DRP & SIDE)
SRS AIR BAG-WITH(*DRP)
89831BSENSOR, SIDE AIRBAG, RH, NO.2
main89831-02310iZRE210..G..RUS;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZWE211,213..EUR,GCC,GEN201901
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
89831CSENSOR, SIDE AIRBAG, LH, NO.2
main89831-02310iZRE210..G..RUS;ZRE210..RHD..EUR;ZRE210..(G,N)..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZWE211,213..EUR,GCC,GEN201901
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
sub8983A-02021
SRS AIR BAG-WITH(*DRP & SIDE)
sub8983A-02021
SRS AIR BAG-WITH(*DRP)
sub8983A-02021
main8983A-02021iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN202005
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
main8983A-02021iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN202005
SRS AIR BAG-WITH(*DRP & SIDE)
main8983A-02021iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN202005
SRS AIR BAG-WITH(*DRP)
main8983A-02080iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
SRS AIR BAG-WITH(*DRP & SIDE)
main8983A-02080iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
SRS AIR BAG-WITH(*DRP)
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
sub8983A-02021
SRS AIR BAG-WITH(*DRP & SIDE)
sub8983A-02021
SRS AIR BAG-WITH(*DRP)
sub8983A-02021
main8983A-02021iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN202005
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA)
main8983A-02021iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN202005
SRS AIR BAG-WITH(*DRP & SIDE)
main8983A-02021iZRE210..G,N;ZRE210..RHD..EUR;ZRE210..LHD..6F..D..EUR;MZEA11,ZRE211,ZWE211,213..EUR,GCC,GEN202005
SRS AIR BAG-WITH(*DRP)
main8983A-02080iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
SRS AIR BAG-WITH(*DRP & SIDE)
main8983A-02080iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
SRS AIR BAG-WITH(*DRP)
90105W0251
main90105-W0251
90119W0206
main90119-W0206
90119W0383
main90119-W0383
9017606045
90178W0019
14 parts on this diagram · 1 diagram in section
