Toyota COROLLA (TUP) — WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZRE210..RHD..CVT..N¥0201901-202301

main85012-50010iZRE210..RHD..EUR¥0201901-202012

main85012-50010iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD¥0201901

main85012-50010iZRE210,ZWE219..RHD..CVT..N¥0202301

main85012-58030iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥0202301

main85012-58030iZRE210..G..EUR¥0201901-202012

main85012-58030iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)¥0201901-202301

main85012-58030iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)¥0201901

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C80iZRE210..G..EUR¥19,500201901-202012

main85110-12C80iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)¥19,500201901-202301

main85110-12C80iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)¥19,500201901

main85110-12C80iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥19,500202301

main85110-12C90iZRE210,ZWE219..RHD..CVT..N¥19,500202301

main85110-12C90iZRE210..RHD..EUR¥19,500201901-202012

main85110-12C90iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD¥19,500201901

main85110-12C90iZRE210..RHD..CVT..N¥19,500201901-202301

85160LINK ASSY, WINDSHIELD WIPER

main85150-02430iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301

main85150-02430iZRE210..G..EUR201901-202012

main85150-02430iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901

main85150-02430iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

main85150-02440iZRE210..RHD..EUR201901-202012

main85150-02440iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD201901

main85150-02440iZRE210..RHD..CVT..N201901-202301

main85150-02440iZRE210,ZWE219..RHD..CVT..N202301

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iZRE210..G..EUR;ZRE210..RHD..EUR¥80201901-202012

main90182-10006iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥80201901-202301

main90182-10006iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1¥80201901

main90182-10006iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥80202301

85211BARM, FRONT WIPER, RH

main85211-02430iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

main85211-02430iZRE210..G..EUR201901-202012

main85211-02430iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301

main85211-02430iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901

main85211-02440iZRE21#,ZWE211..RHD201901-202003

sub85211-02441

main85211-02441iZRE210..RHD..CVT..N202003-202301

main85211-02441iZRE210,ZWE219..RHD..CVT..N202301

main85211-02441iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD202003

main85211-02441iZRE210..RHD..EUR202003-202012

85212ABLADE, FR WIPER, RH

main85212-02420iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)202010-202301

main85212-02420iZRE210..G..EUR202010-202012

main85212-02420iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)202010

main85212-02420iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

main85212-02430iZRE210,ZWE219..RHD..CVT..N202301

main85212-02430iZRE210..RHD..CVT..N202010-202301

main85212-02430iZRE210..RHD..EUR202010-202012

main85212-02430iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD202010

main85212-12610iZRE21#,ZWE211..RHD¥4,620201901-202009

main85212-12620iZRE21#,ZWE211..LHD201901-202009

85214ARUBBER, WIPER, RH

main85214-28080iZRE210..RHD..EUR¥900201901-202012

main85214-28080iZRE210,ZWE219..RHD..CVT..N¥900202301

main85214-28080iZRE210..RHD..CVT..N¥900201901-202301

main85214-28080iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD¥900201901

main85214-68030iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)¥750201901-202301

main85214-68030iZRE210..G..EUR¥750201901-202012

main85214-68030iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)¥750201901

main85214-68030iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥750202301

85214BRUBBER, WIPER, LH

main85214-28080iZRE210..G..EUR¥900201901-202012

main85214-28080iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)¥900201901

main85214-28080iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)¥900201901-202301

main85214-28080iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥900202301

main85214-68030iZRE210..RHD..EUR¥750201901-202012

main85214-68030iZRE210..RHD..CVT..N¥750201901-202301

main85214-68030iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD¥750201901

main85214-68030iZRE210,ZWE219..RHD..CVT..N¥750202301

85221BARM, FRONT WIPER, LH

main85221-02410iZRE21#,ZWE211..LHD201901-202003

sub85221-02411

main85221-02411iZRE210..G..EUR202003-202012

main85221-02411iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)202003-202301

main85221-02411iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)202003

main85221-02411iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

main85221-02450iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD201901

main85221-02450iZRE210,ZWE219..RHD..CVT..N202301

main85221-02450iZRE210..RHD..CVT..N201901-202301

main85221-02450iZRE210..RHD..EUR201901-202012

85222ABLADE, FR WIPER, LH

main85222-02470iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

main85222-02470iZRE210..G..EUR202010-202012

main85222-02470iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)202010-202301

main85222-02470iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)202010

main85222-02480iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD202010

main85222-02480iZRE210..RHD..CVT..N202010-202301

main85222-02480iZRE210,ZWE219..RHD..CVT..N202301

main85222-02480iZRE210..RHD..EUR202010-202012

main85222-12A80iZRE21#,ZWE211..RHD¥1,480201901-202009

main85222-12B00iZRE21#,ZWE211..LHD201901-202009

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥200202301

main85292-0F010iZRE210..G..EUR;ZRE210..RHD..EUR¥200201901-202012

main85292-0F010iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥200201901-202301

main85292-0F010iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1¥200201901

89941SENSOR, RAIN

main89941-0D040iZWE211,213..N;MZEA11,ZRE211..RHD;ZRE210..CVT..N..GCC;ZRE210..6F..N..(GCC,GEN,RUS)202011

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89941-0D040iZWE211..N..EUR;ZRE210..6F..N..RUS202011

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

main89941-0D040iZRE210..G;ZRE211..N..GCC202301

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main89941-0D040iZRE210..G..EUR202011-202012

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89941-0D040iZRE210..G..EUR202011-202012

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

main89941-0D040iZRE210..G..RUS202011-202301

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89941-30040iZRE21#,ZWE211..G¥6,600201901-202010

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89941-30040iZRE210,ZWE211..G..EUR¥6,600201901-202010

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

main89941-78020iZWE219..G;ZWE219..GCC;MZEA11..G..TUR¥12,500202301

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main89941-78020iZWE219..D..TUR;MZEA11,ZWE219..N..(EUR,TUR)¥12,500202402

WINDSHIELD GLASS-GREEN(ACOUSTIC)

main89941-78020iZWE219..D..TUR;MZEA11,ZWE219..N..(EUR,TUR)¥12,500202402

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

89943COVER, RAIN SENSOR

main89943-12040iZWE211,213..N;MZEA11,ZRE211..RHD;ZRE210..CVT..N..GCC;ZRE210..6F..N..(GCC,GEN,RUS)¥440201901

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

main89943-12040iZRE210..G..EUR¥440201901-202012

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

main89943-12040iZRE210..G..EUR¥440201901-202012

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89943-12040iZRE210..G..RUS¥440201901-202301

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89943-12040iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)¥440201901

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89943-12040iZWE219..G;ZRE211,ZWE219..N..GCC;MZEA11,ZRE210..G..(RUS,TUR)¥440202301

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main89943-12040iZWE219..D..TUR;MZEA11,ZWE219..N..(EUR,TUR)¥440202402

WINDSHIELD GLASS-GREEN(ACOUSTIC)

main89943-12040iZWE219..D..TUR;MZEA11,ZWE219..N..(EUR,TUR)¥440202402

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

89944TAPE, RAIN SENSOR

main89944-42020iZRE210..G..EUR¥170201901-202012

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

main89944-42020iZRE210..G..EUR¥170201901-202012

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89944-42020iZRE210..G..RUS¥170201901-202301

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89944-42020iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)¥170201901

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

main89944-42020iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)¥170201901

INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main89944-42020iZWE219..G;ZRE211,ZWE219..N..GCC;MZEA11,ZRE210..G..(RUS,TUR)¥170202301

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main89944-42020iZWE219..D..TUR;MZEA11,ZWE219..N..(EUR,TUR)¥170202402

WINDSHIELD GLASS-GREEN(ACOUSTIC)

main89944-42020iZWE219..D..TUR;MZEA11,ZWE219..N..(EUR,TUR)¥170202402

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

9011906864

main90119-06864¥80

90119W0082

main90119-W0082¥80

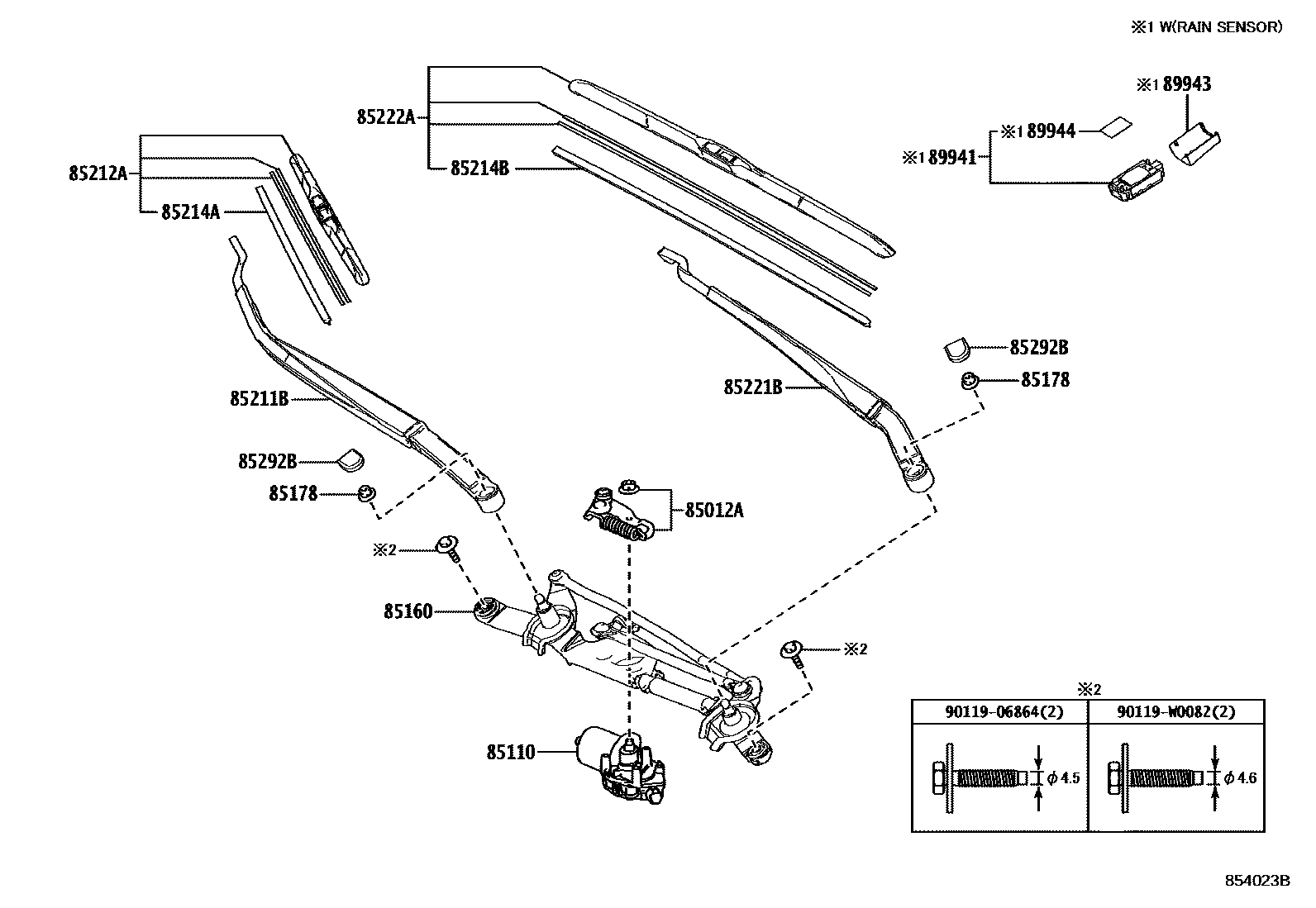

16 parts on this diagram · 2 diagrams in section
