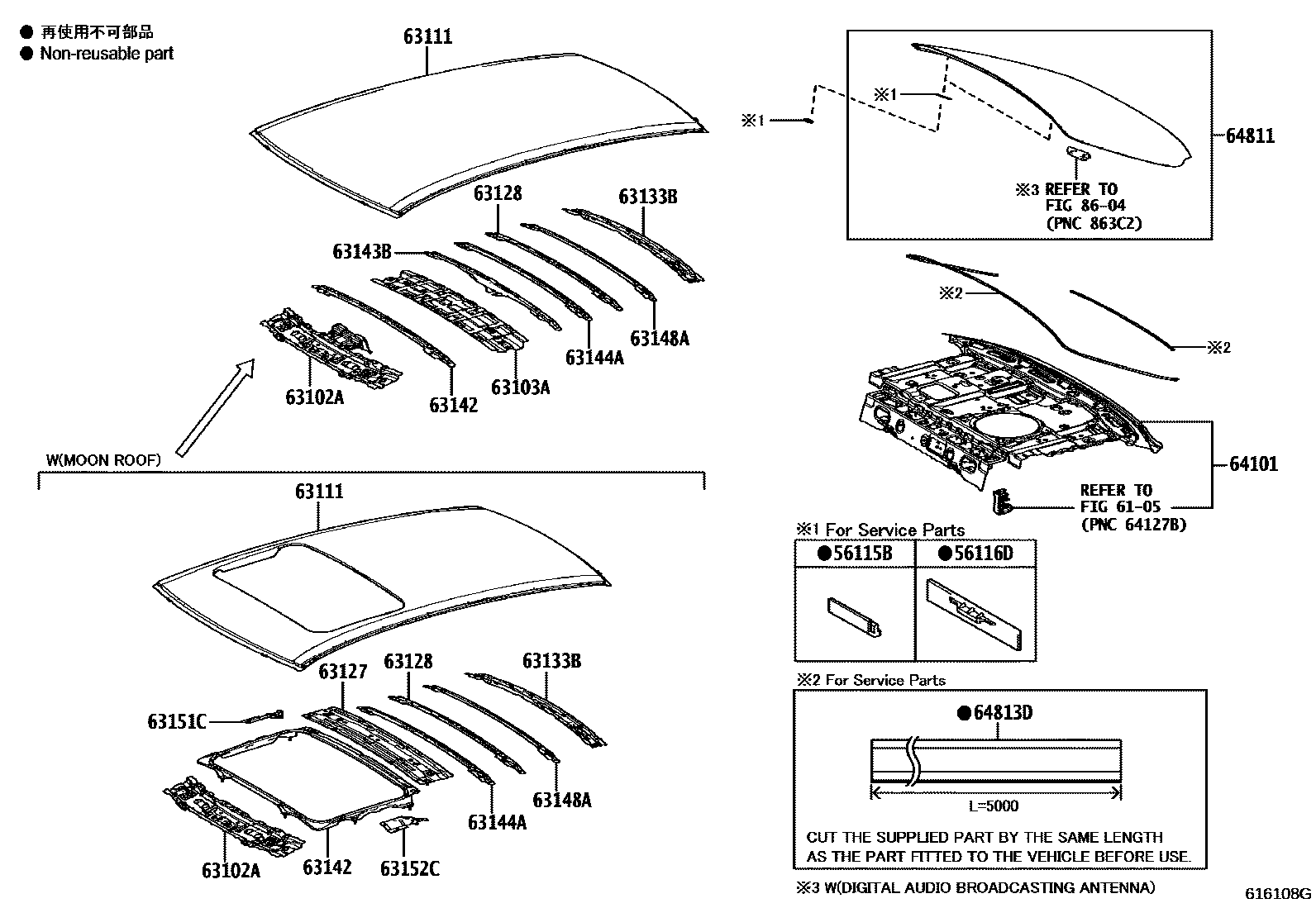

Toyota COROLLA (TUP) — ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iZRE210..G..EUR;ZRE210..RHD..EUR¥130201901-202301

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)¥120201901-202301

6105

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02480iZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#201901-202110

main63102-02481iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202110-202301

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-02130iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301

63111PANEL, ROOF

main63111-02680iZRE211..LHD..N;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

DATA COMMUNICATION MODULE-WITHOUT

main63111-02680iZRE210..N..EUR;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN)202301

UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT

main63111-02680iZRE210..CVT..RUS;ZRE210..6F..D..RUS202301

MOLDOVA SPEC&DATA COMMUNICATION MODULE-WITHOUT

main63111-02700iMZEA11..TUR;ZWE219..EUR,TUR;ZRE210..CVT..RUS;ZRE210..6F..D..RUS;MZEA11..LHD..(D,N)..EUR201901-202301

63127REINFORCEMENT, ROOF PANEL, NO.5

main63107-12010

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-02070iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

63133BFRAME, BACK WINDOW

main63133-02220iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)201901-202301

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-02160iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-02230iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)201901-202301

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-02240iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-02130iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)201901-202301

63151CFRAME, ROOF OPENING SIDE, RH

63152CFRAME, ROOF OPENING SIDE, LH

64101PANEL SUB-ASSY, UPPER BACK

main64101-02590iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)201901-202301

64811GLASS, BACK WINDOW

main64801-02400iZRE211..G..GEN201901-202011

BACK GLASS-GREEN

main64801-02410iZWE211..G..EUR202011

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main64801-02410iZRE211..G..GEN202011

BACK GLASS-GREEN&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main64801-02410iZWE211,213..LHD..N..EUR201901-202301

BACK GLASS-GREEN

main64801-02410iZRE211..G..GEN202011

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

main64801-02410iZRE211..G..GEN202011

AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main64801-02410iMZEA11,ZWE219..D..TUR202301-202401

AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT

main64801-02410iMZEA11,ZWE219..D..TUR202301-202401

GREECE SPEC&AUDIO COVER-WITHOUT

main64801-02410iMZEA11,ZWE219..D..TUR202301-202401

ISRAEL SPEC&AUDIO COVER-WITHOUT

main64801-02410iMZEA11,ZWE219..D..TUR202301-202401

ISRAEL SPEC&AUDIO-CD & 6SPEAKER

main64801-02410iZRE210..G202301-202401

AUDIO-CD & 6SPEAKER

main64801-02410iZRE211..RHD;ZRE210..CVT..N..GCC;ZRE210..RHD..D..GEN;ZWE211..N..(GCC,GEN);ZRE211,ZWE211..G..GCC;ZRE210..6F..N..(GCC,GEN);ZRE210..LHD..6F..D..(EUR,GCC,GEN)202011

BACK GLASS-GREEN&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

main64801-02410iZRE210..6F..N..RUS;ZRE210..LHD..CVT..D..EUR201901-202301

main64801-02411iZRE210..G202402

MOLDOVA SPEC&AUDIO-9INCH DISPLAY & 6SPEAKER

main64801-02411iZRE210..G202402

AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT

main64801-02411iZRE210..G202402

UKRAINE SPEC&AUDIO-9INCH DISPLAY & 6SPEAKER

main64801-02420iZRE210..RHD..EUR;ZRE211,ZWE211..G..GCC;ZRE21#,ZWE211..N..(EUR,GCC,GEN)201901-202011

BACK GLASS-PRIVACY

main64801-02430iZWE211,213..LHD..N..EUR202011

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main64801-02430iZRE211,ZWE211..G..GEN201901-202401

BACK GLASS-PRIVACY

main64801-02430iZRE211,ZWE211..G..GEN202011

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

main64801-02430iZRE211,ZWE211..G..GEN202011

BACK GLASS-PRIVACY&AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER

main64801-02430iZRE211,ZWE211..G..GEN202011-202012

BACK GLASS-PRIVACY&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main64801-02430iZRE211,ZWE211..G..GEN202011

BACK GLASS-PRIVACY&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER

main64801-02430iZRE210..G202301-202401

ISRAEL SPEC&BACK GLASS-PRIVACY&AUDIO-CD & 6SPEAKER

main64801-02430iZRE210..G202301-202401

ISRAEL SPEC&BACK GLASS-PRIVACY&AUDIO COVER-WITHOUT

main64801-02430iZRE210..G202301-202401

ISRAEL SPEC&AUDIO COVER-WITHOUT

main64801-02430iZRE210..G202301-202401

GREECE SPEC&BACK GLASS-PRIVACY&AUDIO COVER-WITHOUT

main64801-02431iZRE210..G202402

BACK GLASS-PRIVACY

main64801-02570iZWE219..GEN202301-202401

MOROCCO SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02570iZWE219..GEN202301-202401

MOROCCO SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02570iZWE219..GEN202301-202401

GEORGIA SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02570iZWE219..GEN202301-202401

GEORGIA SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02570iZWE219..GEN202301-202401

GEORGIA SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02570iZWE219..GEN202301-202401

AZERBAIJAN SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02570iZWE219..GEN202301-202401

AZERBAIJAN SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02570iZWE219..GEN202301-202401

AZERBAIJAN SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02570iZWE219..GEN202301-202401

MOROCCO SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02570iZRE210..LHD..6F..D..EUR202011

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & DAB & 6SPEAKER

main64801-02570iZRE210..LHD..6F..D..EUR202011

BACK GLASS-GREEN

main64801-02570iZRE210..RHD..EUR202011-202012

main64801-02571iMZEA11..LHD..(D,N);ZWE219..(D,N)..(EUR,TUR)202402

GEORGIA SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02571iZWE219..GEN202402

AZERBAIJAN SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02571iZWE219..GEN202402

AZERBAIJAN SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02571iZWE219..GEN202402

GEORGIA SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02571iZWE219..GEN202402

GEORGIA SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02571iZWE219..GEN202402

MOROCCO SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02571iZWE219..GEN202402

MOROCCO SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02571iZWE219..GEN202402

MOROCCO SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02571iZWE219..GEN202402

AZERBAIJAN SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02580iZWE219..GEN202301-202401

MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02580iZWE211,213..G..EUR202011-202401

BACK GLASS-PRIVACY

main64801-02580iZWE211,213..G..EUR202011

AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & DAB & 6SPEAKER

main64801-02580iZWE219..G;MZEA11..G..TUR202301-202401

MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02580iZWE219..G;MZEA11..G..TUR202301-202401

MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02580iZWE219..G;MZEA11..G..TUR202301-202401

GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02580iZWE219..G;MZEA11..G..TUR202301-202401

GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02580iZWE219..G;MZEA11..G..TUR202301-202401

GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02580iZWE219..G;MZEA11..G..TUR202301-202401

AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02580iZWE219..G;MZEA11..G..TUR202301-202401

AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02580iZWE219..G;MZEA11..G..TUR202301-202401

AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER

main64801-02581iZWE219..G;MZEA11..G..TUR202402

BACK GLASS-PRIVACY

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50130iZRE210..G..EUR;ZRE210..RHD..EUR¥1,610201901-202301

8604

19 parts on this diagram · 2 diagrams in section
