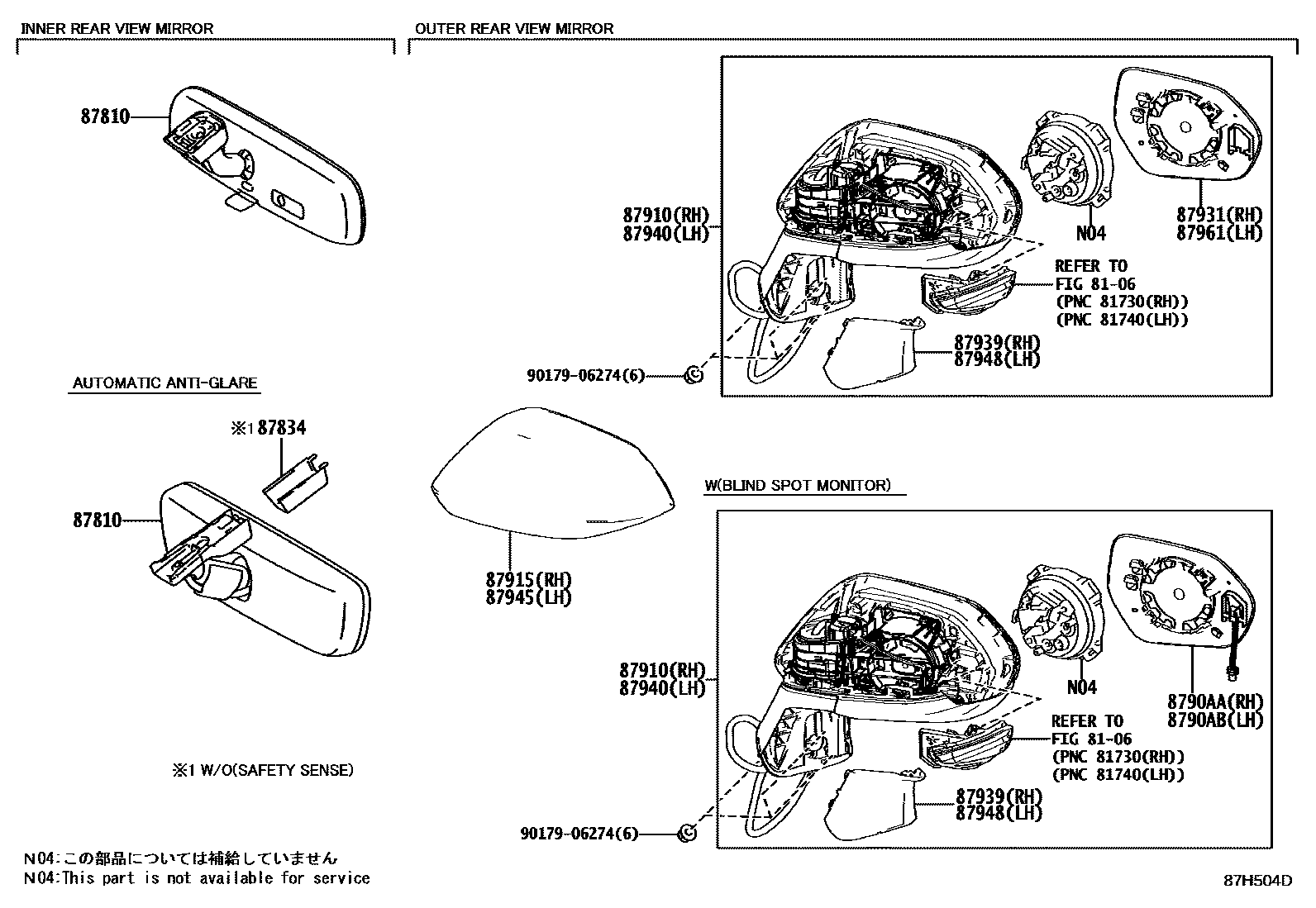

Toyota COROLLA (TUP) — MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WK10iZRE211..LHD..N;ZRE210..CVT..N..(GEN,RUS)201901-202301

SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87810-0WK10iZRE210..G..RUS201901-202301

TOYOTA SAFETY SENSE-WITHOUT&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87810-0WK10iZRE210..N..EUR;ZRE21#,ZWE219..LHD..CVT..N..(GEN,RUS)202301-202502

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main87810-0WK10iMZEA11,ZWE219..N..TUR202301-202402

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main87810-0WK10iZRE211,ZWE211..G..(GCC,GEN)201901

TOYOTA SAFETY SENSE-WITHOUT

main87810-0WK10iZRE211,ZWE211..G..(GCC,GEN)201901

TOYOTA SAFETY SENSE-WITHOUT&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87810-0WK10iZRE211,ZWE211..G..(GCC,GEN)201901

SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87810-0WK10iMZEA11,ZWE219..N..TUR202301-202402

TOYOTA SAFETY SENSE-WITHOUT&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main87810-0WS30iZRE211,ZWE211..G..GCC¥23,200201901

TOYOTA SAFETY SENSE-WITH&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87810-0WS30iMZEA11,ZWE211,213..G..EUR¥23,200201901

TOYOTA SAFETY SENSE-WITH

main87810-0WS30iMZEA11,ZWE211,213..G..EUR¥23,200201901

SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87810-0WS30iZRE210..G..EUR¥23,200201901-202012

SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87810-0WS30iZWE219..G..EUR¥23,200202301-202502

TOYOTA SAFETY SENSE-WITH

main87810-0WS30iZWE219..G..EUR¥23,200202301-202502

TOYOTA SAFETY SENSE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main87810-0WS30iMZEA11..TUR;ZWE219..G..TUR;MZEA11..LHD..(D,N)..EUR;ZWE219..(D,N)..(EUR,TUR)¥23,200202402-202502

main87810-28140iMZEA11..LHD..(D,N);ZWE219..(D,N)..(EUR,TUR)¥5,100202301-202402

main87810-28140iZWE211,213..N;MZEA11,ZRE211..RHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN¥5,100201901

main87810-28140iZRE210..RHD..EUR¥5,100201901-202012

main87810-28140iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)¥5,100201901-202301

main87810-28140iZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN);ZRE210,ZWE219..CVT..N..(GEN,RUS)¥5,100202301-202501

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-24010iZRE211..LHD..N;ZRE210..CVT..N..(GEN,RUS)¥470201901-202301

TOYOTA SAFETY SENSE-WITHOUT&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87818-24010iZRE211..LHD..N;ZRE210..CVT..N..(GEN,RUS)¥470201901-202301

SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87818-24010iZRE211,ZWE211..G..(GCC,GEN)¥470201901

TOYOTA SAFETY SENSE-WITHOUT

main87818-24010iZRE211,ZWE211..G..(GCC,GEN)¥470201901

SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87818-24010iMZEA11,ZWE211,213..G..EUR¥470201901

TOYOTA SAFETY SENSE-WITHOUT&SUN VISOR-*DRP(VANITY MIRROR & LAMP)

main87818-24010iMZEA11,ZWE219..G..TUR¥470202301-202402

TOYOTA SAFETY SENSE-WITHOUT&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main87818-24010iMZEA11,ZWE219..G..TUR¥470202301-202402

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main87818-24010iZRE210..G;ZRE211,ZWE219..N..GCC¥470202301

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

8790AAINDICATOR, OUTER MIRROR, RH

8790ABINDICATOR, OUTER MIRROR, LH

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-02L40iZWE211..LHD..N;ZRE21#..N..(GCC,GEN,RUS);ZRE210..LHD..D..(EUR,RUS)201901-202001

OUTSIDE REAR VIEW MIRROR-*162 & *HEA

sub87910-02L41

main87910-02L41iZRE210..LHD..6F..D..(GCC,GEN)202002

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87910-02L41iZRE210..LHD..6F..D..(GCC,GEN)202002

NO PAINT REQ.

main87910-02L41iMZEA11..N202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87910-02L41iMZEA11..N202301

NO PAINT REQ.

main87910-02L41iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..N..(GEN,RUS)202002-202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87910-02L41iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..N..(GEN,RUS)202002-202301

NO PAINT REQ.

main87910-02L50iZRE210..G..RUS;ZRE211,ZWE211..G;ZRE210..(G,N)..EUR201901-202001

OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

sub87910-02L51

main87910-02L50iZRE21#..N..(GCC,GEN)201901-202001

OUTSIDE REAR VIEW MIRROR-*273 & *HEA

sub87910-02L51

main87910-02L51iZRE210..G..RUS;MZEA11,ZRE210..N..EUR202002-202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

main87910-02L51iZRE210..G..EUR202002-202012

NO PAINT REQ.

main87910-02L51iZRE210..G..RUS;MZEA11,ZRE210..N..EUR202002-202301

NO PAINT REQ.

main87910-02L51iZRE210..G..RUS;MZEA11,ZRE210..N..EUR202002-202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & *HEA

main87910-02L51iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)202002

NO PAINT REQ.

main87910-02L51iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)202002

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & *HEA

main87910-02L51iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)202002

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

main87910-02L51iMZEA11..N..EUR;ZRE210,ZWE219..G;MZEA11..(G,N)..TUR202301

NO PAINT REQ.

main87910-02L51iMZEA11..N..EUR;ZRE210,ZWE219..G;MZEA11..(G,N)..TUR202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & *HEA

main87910-02L51iMZEA11..N..EUR;ZRE210,ZWE219..G;MZEA11..(G,N)..TUR202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

main87910-02L70iZRE210,ZWE211..RHD201901-202001

main87910-02L70iZRE21#..RHD..GEN201901-202002

main87910-02L71iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD202002

NO PAINT REQ.

main87910-02L71iZRE210..RHD..CVT..N202002-202301

NO PAINT REQ.

main87910-02L71iZRE210..RHD..EUR202002-202012

NO PAINT REQ.

main87910-02L71iZRE210,ZWE219..RHD..CVT..N202301

NO PAINT REQ.

main87910-02N90iZRE210..D..(GCC,GEN)201901-202001

OUTSIDE REAR VIEW MIRROR-*162

sub87910-02N91

main87910-02N91iZRE210..LHD..CVT..D..GEN202301

NO PAINT REQ.

main87910-02N91iZRE210..LHD..6F..D..(GCC,GEN)202002

NO PAINT REQ.

main87910-02N91iZRE210..LHD..6F..D..(GCC,GEN)202002

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162

main87910-02N91iZRE210..LHD..CVT..D..(GCC,GEN)202002-202301

NO PAINT REQ.

main87910-02N91iZRE210..LHD..CVT..D..(GCC,GEN)202002-202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162

main87910-02Q31iZRE210..CVT..D..GCC202301

NO PAINT REQ.

main87910-02Q41iZWE219..GCC202301

NO PAINT REQ.

main87910-02Q51iZRE211..N..GCC202301

NO PAINT REQ.

main87910-02Q51iZRE211..N..GCC202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

87915COVER, OUTER MIRROR, RH

main87915-02933iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

main87915-02933iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main87915-02933iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901

main87915-02933iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

PAINT REQ.

87931OUTER MIRROR, RH

main87931-02L40iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..RHD..D..GEN;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..6F..N..(GCC,GEN,RUS);MZEA11,ZRE211..CVT..(D201901

OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87931-02L40iMZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZWE219..EUR,GEN,TUR;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

main87931-02L40iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

main87931-02L40iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS)201901-202301

OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87931-02N90iZRE210..LHD..6F..D..(GCC,GEN)201901

OUTSIDE REAR VIEW MIRROR-*162

main87931-02N90iZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

OUTSIDE REAR VIEW MIRROR-*162

main87931-02N90iZRE210..LHD..CVT..D..GEN202301

main87931-02Q30iZRE210..CVT..D..GCC202301

main87931-02Q40iZRE211,ZWE219..N..GCC202301

87939COVER, OUTER MIRROR HOLE, RH

main87939-02L40iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301

main87939-02L40iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901

main87939-02L40iZRE210..G..EUR201901-202012

main87939-02L40iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

main87939-02L70iZRE210..RHD..EUR201901-202012

main87939-02L70iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD201901

main87939-02L70iZRE210,ZWE219..RHD..CVT..N202301

main87939-02L70iZRE210..RHD..CVT..N201901-202301

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-02L30iZRE210..N..EUR;ZRE210..D..(GCC,GEN)201901-202001

OUTSIDE REAR VIEW MIRROR-*162 & *HEA

sub87940-02L31

main87940-02L31iZRE210..LHD..6F..D..(GCC,GEN)202002

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87940-02L31iMZEA11..LHD..D;ZRE210..N..EUR;ZRE210..D..RUS;ZRE21#..LHD..CVT..N..(GEN,RUS);ZWE219..LHD..(D,N)..(EUR,GEN,TUR)202301

NO PAINT REQ.

main87940-02L31iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..N..(GEN,RUS)202002-202301

NO PAINT REQ.

main87940-02L31iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..N..(GEN,RUS)202002-202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87940-02L31iZRE210..LHD..6F..D..(GCC,GEN)202002

NO PAINT REQ.

main87940-02L31iMZEA11..N202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87940-02L40iZRE210..G..RUS;ZRE211,ZWE211..G;ZRE210..(G,N)..EUR201901-202001

OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

sub87940-02L41

main87940-02L40iZRE21#..N..(GCC,GEN)201901-202001

OUTSIDE REAR VIEW MIRROR-*273 & *HEA

sub87940-02L41

main87940-02L41iMZEA11..N..EUR;ZRE210,ZWE219..G;MZEA11..(G,N)..TUR202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & *HEA

main87940-02L41iZRE210..G..EUR202002-202012

NO PAINT REQ.

main87940-02L41iZRE210..G..RUS;MZEA11,ZRE210..N..EUR202002-202301

NO PAINT REQ.

main87940-02L41iZRE210..G..RUS;MZEA11,ZRE210..N..EUR202002-202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & *HEA

main87940-02L41iZRE210..G..RUS;MZEA11,ZRE210..N..EUR202002-202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

main87940-02L41iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)202002

NO PAINT REQ.

main87940-02L41iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)202002

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & *HEA

main87940-02L41iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN)202002

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

main87940-02L41iZRE210..N..EUR;ZWE219..LHD..N..(EUR,GEN,TUR);ZRE21#..LHD..CVT..N..(GEN,RUS)202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

main87940-02L41iZRE210..N..EUR;ZWE219..LHD..N..(EUR,GEN,TUR);ZRE21#..LHD..CVT..N..(GEN,RUS)202301

NO PAINT REQ.

main87940-02L60iZRE210,ZWE211..RHD201901-202001

main87940-02L60iZRE21#..RHD..GEN201901-202002

main87940-02L61iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD202002

NO PAINT REQ.

main87940-02L61iZRE210,ZWE219..RHD..CVT..N202301

NO PAINT REQ.

main87940-02L61iZRE210..RHD..CVT..N202002-202301

NO PAINT REQ.

main87940-02L61iZRE210..RHD..EUR202002-202012

NO PAINT REQ.

main87940-02N80iZRE210..D..(GCC,GEN)201901-202001

OUTSIDE REAR VIEW MIRROR-*162

sub87940-02N81

main87940-02N81iZRE210..LHD..CVT..D..GEN202301

NO PAINT REQ.

main87940-02N81iZRE210..LHD..D..EUR202002

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162

main87940-02N81iZRE210..LHD..D..EUR202002

NO PAINT REQ.

main87940-02N81iZRE210..LHD..CVT..D..(GCC,GEN)202002-202301

NO PAINT REQ.

main87940-02N81iZRE210..LHD..CVT..D..(GCC,GEN)202002-202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162

main87940-02Q11iZRE210..CVT..D..GCC202301

NO PAINT REQ.

main87940-02Q21iZWE219..GCC202301

NO PAINT REQ.

main87940-02Q31iZRE211..N..GCC202301

NO PAINT REQ.

main87940-02Q31iZRE211..N..GCC202301

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *HEA

87945COVER, OUTER MIRROR, LH

main87945-02933iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main87945-02933iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

main87945-02933iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901

main87945-02933iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

PAINT REQ.

87948COVER, OUTER MIRROR HOLE, LH

main87948-02L30iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301

main87948-02L30iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901

main87948-02L30iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301

main87948-02L30iZRE210..G..EUR201901-202012

main87948-02L60iZRE210,ZWE219..RHD..CVT..N202301

main87948-02L60iZRE210..RHD..EUR201901-202012

main87948-02L60iZRE210..RHD..CVT..N201901-202301

main87948-02L60iZRE210..RHD..6F..N;ZRE210..RHD..D..GEN;MZEA11,ZRE211,ZWE211,213..RHD201901

87961MIRROR OUTER, LH

main87961-02L30iZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87961-02L30iMZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZWE219..EUR,GEN,TUR;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

main87961-02L30iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

main87961-02L30iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..RHD..D..GEN;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..6F..N..(GCC,GEN,RUS);MZEA11,ZRE211..CVT..(D201901

OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main87961-02N80iZRE210..LHD..CVT..D..GEN202301

main87961-02N80iZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

OUTSIDE REAR VIEW MIRROR-*162

main87961-02N80iZRE210..LHD..D..EUR201901

OUTSIDE REAR VIEW MIRROR-*162

main87961-02Q10iZRE210..CVT..D..GCC202301

main87961-02Q20iZRE211,ZWE219..N..GCC202301

9017906274

main90179-06274¥70

14 parts on this diagram · 1 diagram in section
