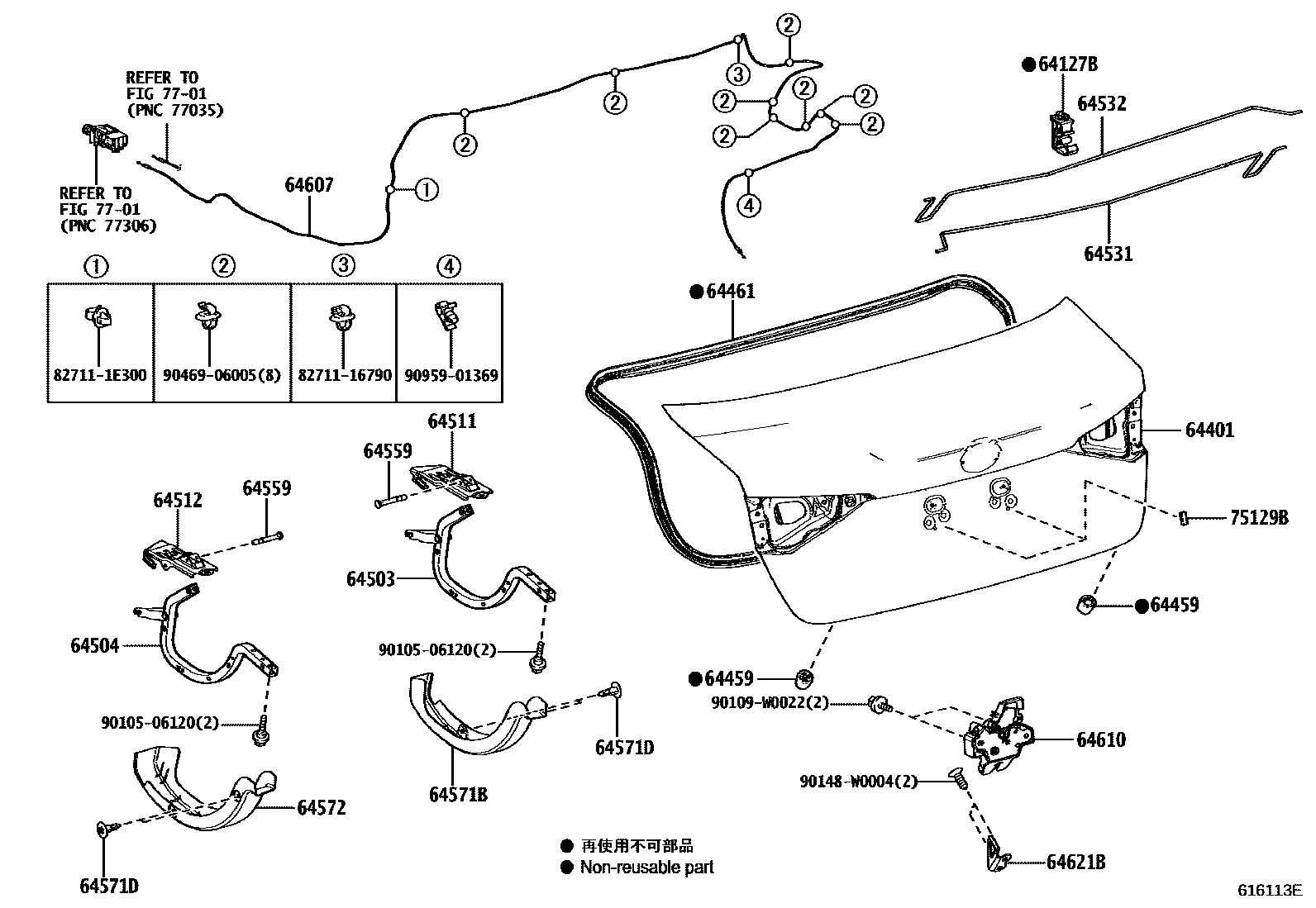

Toyota COROLLA (TUP) — LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33071iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1¥500201901-202301

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02F20iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZWE219..LHD..D201901-202402

BACK MONITOR-WITHOUT

main64401-02F20iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZWE219..LHD..D202301-202402

GR SPORT

main64401-02F20iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZWE219..LHD..D202301-202402

GR SPORT&BACK MONITOR-WITHOUT

main64401-02F20iZRE210..CVT..N..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN)202301

GR SPORT&BACK MONITOR-WITH

main64401-02F30iZRE210..CVT..N..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN)201901

BACK MONITOR-WITH

main64401-02F30iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZWE219..LHD..D202402

main64401-02F30iZRE210..G;MZEA11..N..EUR;MZEA11..(G,N)..TUR;ZWE219..(G,N)..(EUR,TUR)202301

GR SPORT&BACK MONITOR-WITH

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)¥170201901-202301

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02300iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02270iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02270iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)201901-202301

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-02270iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-02220iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02550iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02550iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iZRE210..G..EUR;ZRE210..RHD..EUR¥100201901-202301

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-02040iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-07076-C7iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

BLACK

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-02040iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02580iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901-202301

main64607-02590iZRE210,ZWE219..RHD..CVT..N201901-202301

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02071iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-02010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202301

75129BCUSHION, REAR LICENCE PLATE

main75129-12020iZRE210..G..EUR;ZRE210..RHD..EUR¥130201901-202301

7701

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790¥120

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300¥70

9010506120

main90105-06120¥90

90109W0022

main90109-W0022

90148W0004

main90148-W0004¥60

9046906005

main90469-06005¥80

9095901369

main90959-01369¥100

26 parts on this diagram · 2 diagrams in section
