Toyota COROLLA (TUP) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

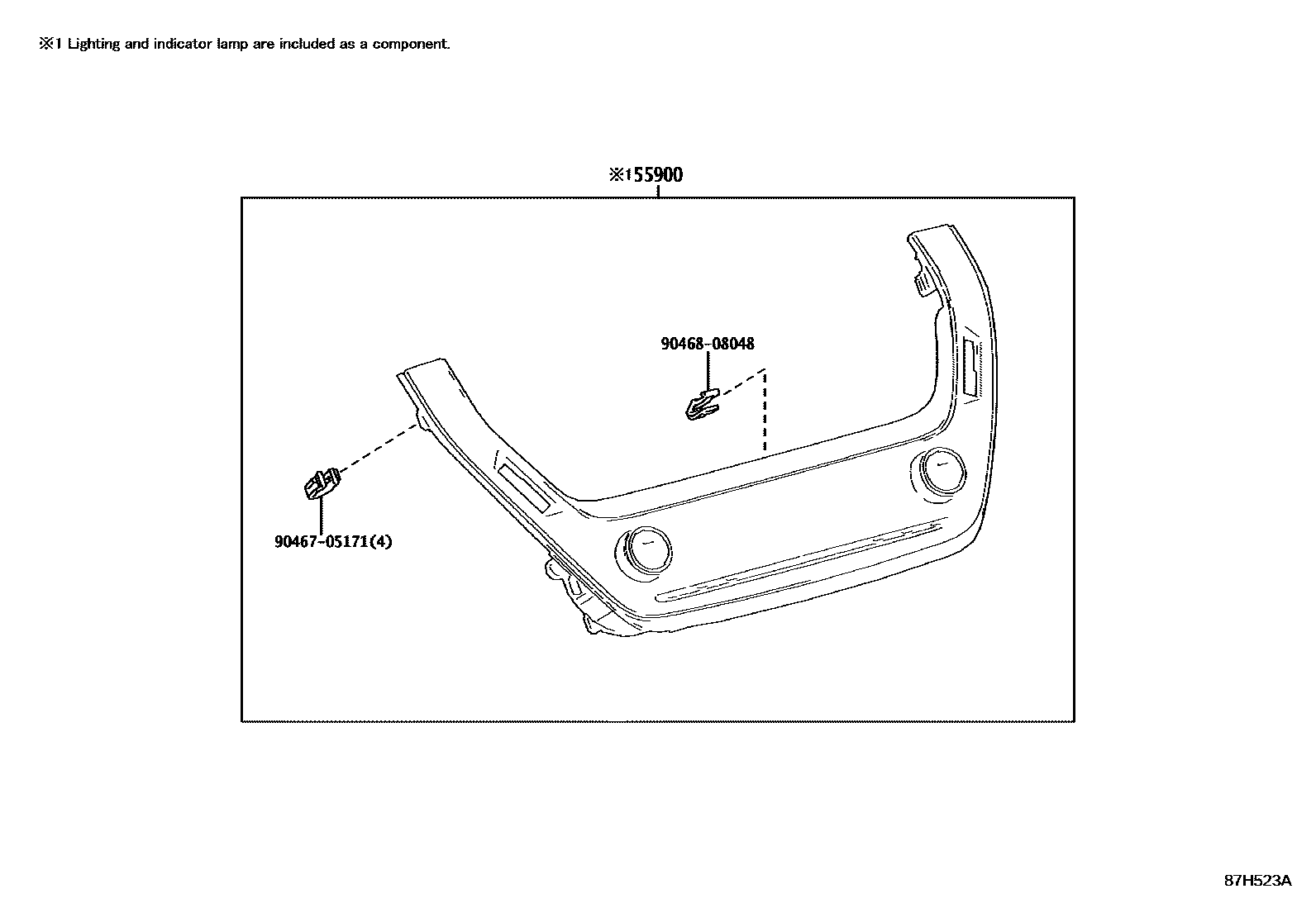

55900CONTROL ASSY, AIR CONDITIONER

main55900-02D80iZRE210..D..RUS201901-202301

main55900-02D90iZRE210..LHD..6F..D..(GCC,GEN)201901-202301

OUTSIDE REAR VIEW MIRROR-*162 & *HEA

main55900-02D90iMZEA11..LHD..D;ZRE211..LHD..N;ZRE210..LHD..CVT..N..(GEN,RUS)201901-202301

AIR CONDITIONER-MANUAL AIR CONDITIONER

main55900-02E30iZRE210..N..GCC;ZRE210..LHD..6F..N..GEN201901

AIR CONDITIONER-AUTO AIR CONDITIONER

main55900-02E40iMZEA11..RHD201901

AIR CONDITIONER-AUTO AIR CONDITIONER&COOLER REAR DUCT-WITH

main55900-02E70iMZEA11,ZRE210..N..EUR201901-202301

OUTSIDE REAR VIEW MIRROR-*162

main55900-02E70iMZEA11,ZRE210..N..EUR201901-202301

OUTSIDE REAR VIEW MIRROR-*162&AIR CONDITIONER-MANUAL AIR CONDITIONER

main55900-02F30iZRE210..G..EUR201901-202012

main55900-02F30iZRE210..G..RUS;MZEA11,ZRE210..N..EUR201901-202301

AIR CONDITIONER-AUTO AIR CONDITIONER

main55900-02F60iZRE210..RHD..EUR201901-202301

main55900-02M30iZWE219..RHD202301

main55900-02M40iZWE219..D202301

COOLER REAR DUCT-WITHOUT

main55900-02M50iMZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..RUS;ZWE219..LHD..(G,N)..(EUR,TUR)202301

main55900-02P30iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..N..GEN202301

ENTRY GRADE

main55900-02P30iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..LHD..CVT..N..GEN202301

AIR CONDITIONER-MANUAL AIR CONDITIONER&SEAT COVER MATERIAL-FABRIC

main55900-02P40iZRE210..LHD..CVT..D..(GCC,GEN)202301

main55900-02P50iZRE210..RHD..CVT..N202301

main55900-02P60iZWE219..GCC,GEN202301

HIGH GRADE PACKAGE

main55900-02P60iZWE219..GCC,GEN202301

AIR CONDITIONER-AUTO AIR CONDITIONER

9046705171

main90467-05171¥60

9046808048

main90468-08048¥60

3 parts on this diagram · 5 diagrams in section
