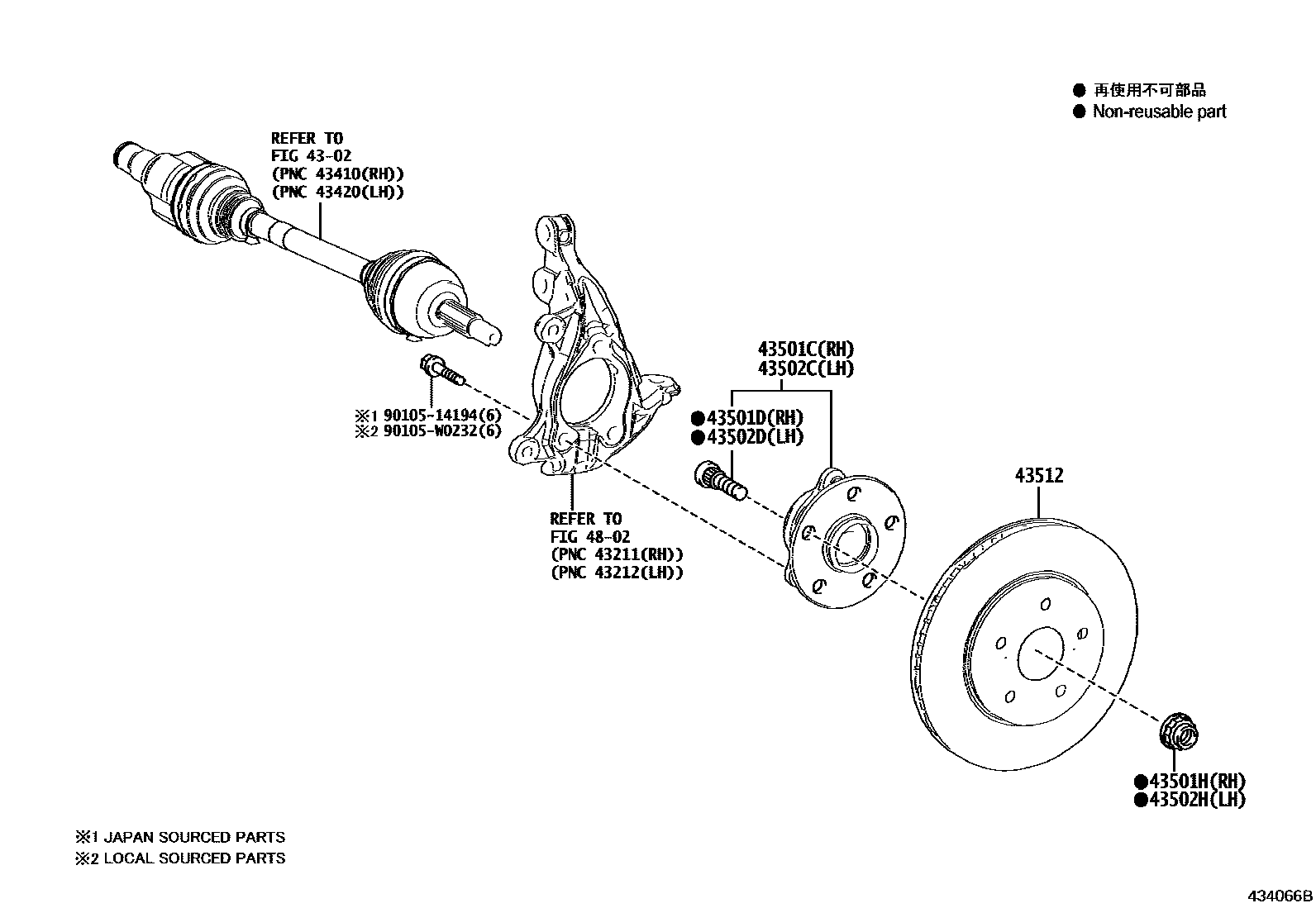

Toyota COROLLA (TUP) — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-F4010iZRE210..G..EUR;ZRE210..RHD..EUR¥13,600201901-202301

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZRE210..G..EUR;ZRE210..RHD..EUR¥240201901-202301

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZRE210..G..EUR;ZRE210..RHD..EUR¥220201901-202301

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-F4010iZRE210..G..EUR;ZRE210..RHD..EUR¥13,600201901-202301

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZRE210..G..EUR;ZRE210..RHD..EUR¥240201901-202301

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZRE210..G..EUR;ZRE210..RHD..EUR¥220201901-202301

43512DISC, FRONT

main43512-02390iMZEA11,ZRE21#,ZWE211,213..EUR,GCC,GEN,RUS201901

main43512-02390iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main43512-02390iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..LHD..CVT..D..GEN;ZRE210..CVT..(G,N)..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN)202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

main43512-02430iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS

main43512-02430iZRE211..N..GCC;ZRE210..CVT..D..GCC202301

BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

4802

9010514194

main90105-14194¥240

90105W0232

main90105-W0232

11 parts on this diagram · 1 diagram in section
