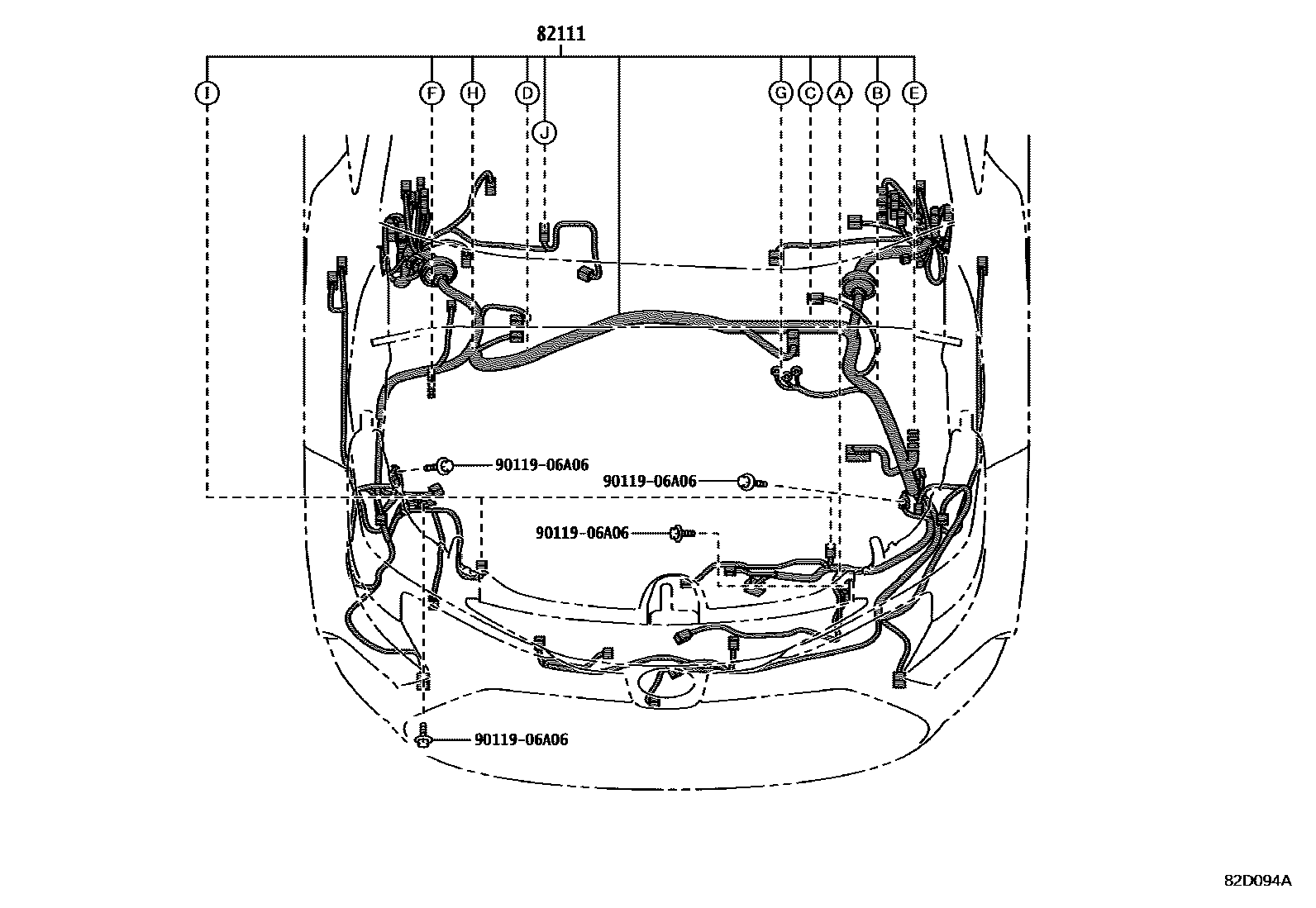

82111WIRE, ENGINE ROOM MAIN

main82111-1KL40iZRE212¥116,000201909

main82111-1L800iZWE219202210-202302

sub82111-1L801

main82111-1L801iZWE219202303-202404

main82111-1L802iZWE219202404

9011906A06

main90119-06A06¥60

2 parts on this diagram · 16 diagrams in section
