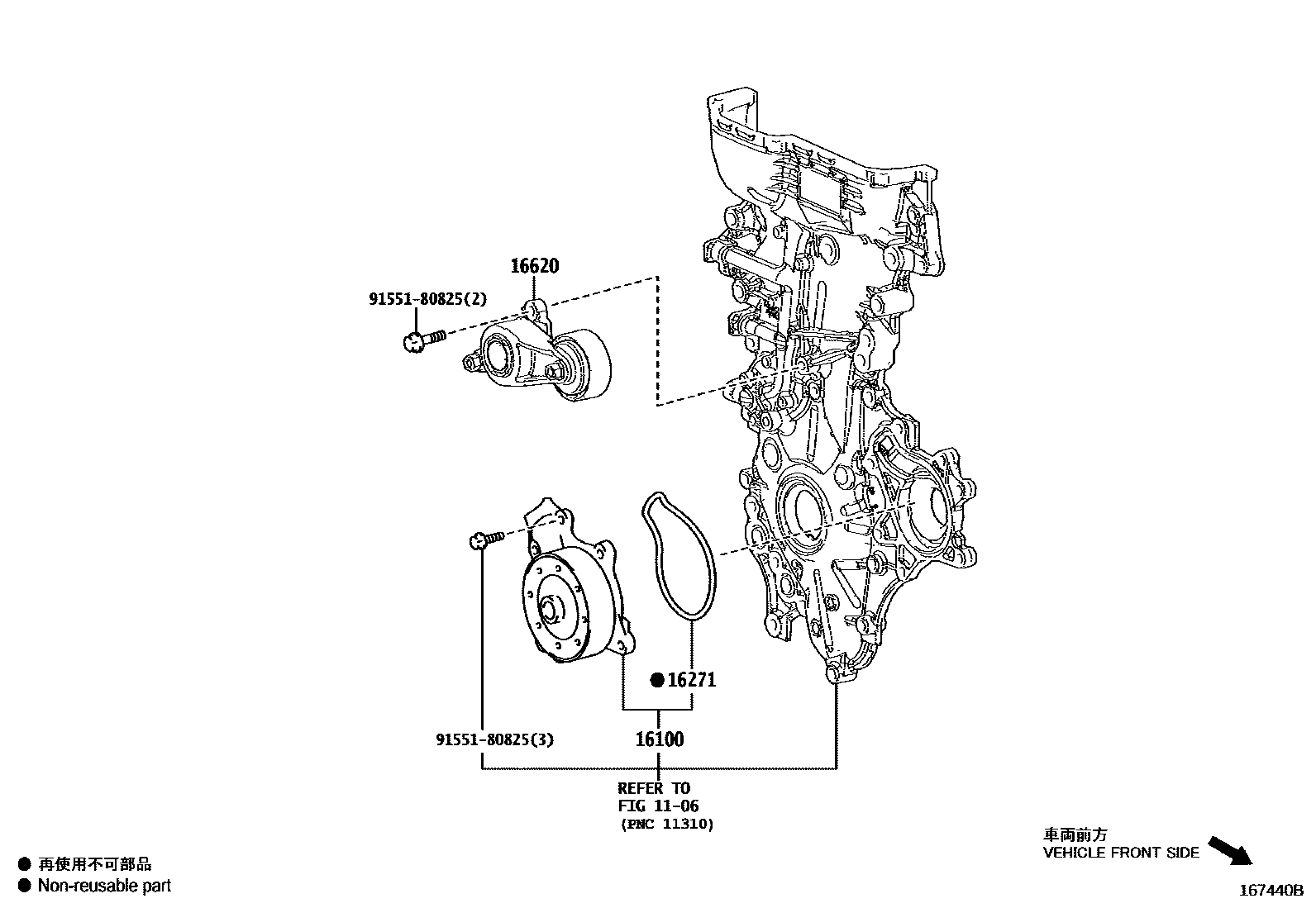

Toyota COROLLA/TOURING — WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39565i2ZRFAE..ZRE212¥10,500201909

main161A0-39045i2ZRFXE..ZWE219¥15,000202210

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZWE219¥470202210

main16271-37030i2ZRFAE..ZRE212¥520201909

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0T040i2ZRFAE..ZRE212¥11,200201909

9155180825

main91551-80825¥80

5 parts on this diagram · 2 diagrams in section
