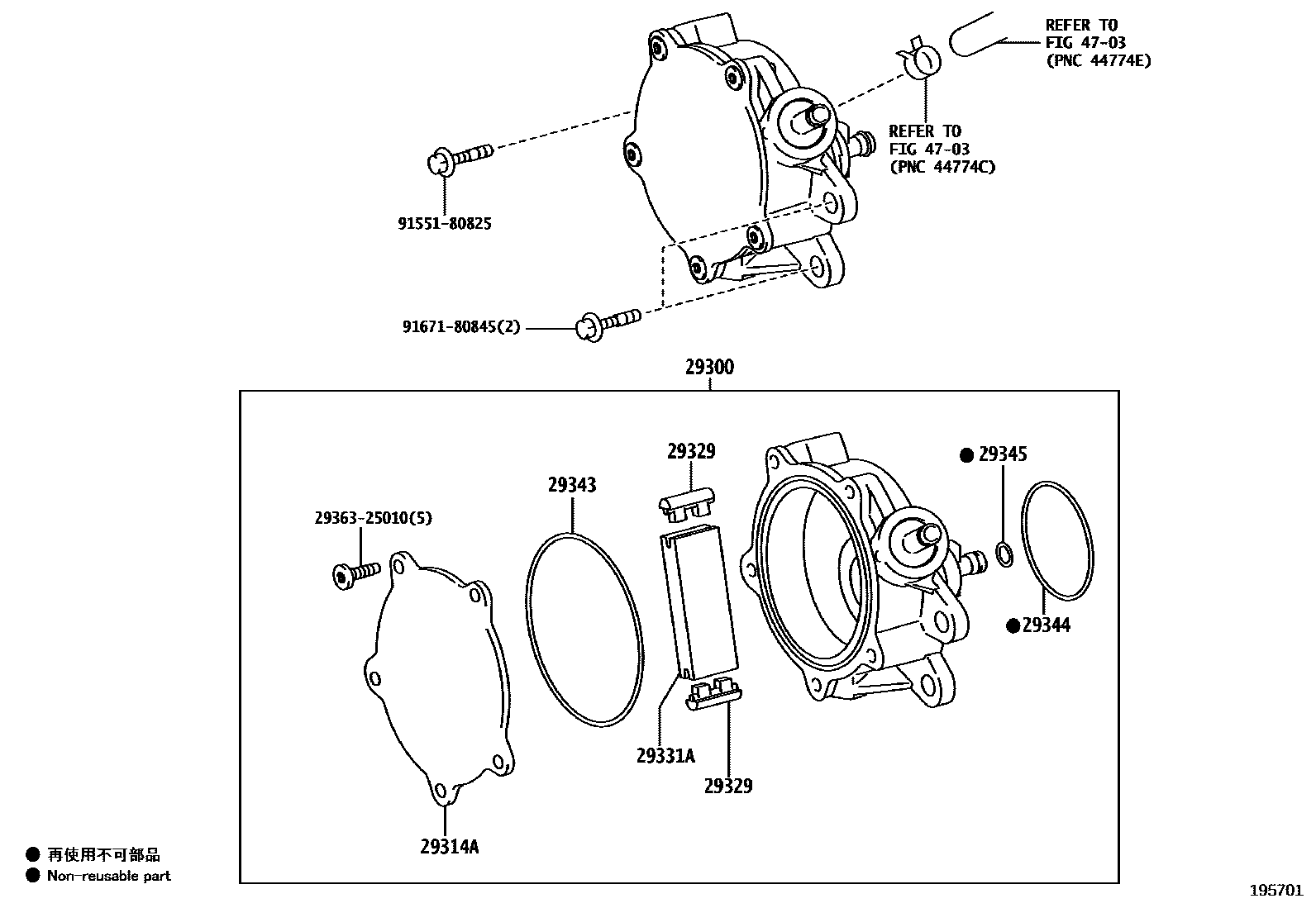

Toyota COROLLA/TOURING — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-37011i2ZRFAE..ZRE212¥14,800201909

29314ACOVER, END

main29314-37011i2ZRFAE..ZRE212¥1,690201909

29329CAP, VACUUM PUMP VANE

main29329-37010i2ZRFAE..ZRE212¥200201909

29331AVANE, VACUUM PUMP

main29331-37010i2ZRFAE..ZRE212¥590201909

29343RING, O VACUUM PUMP, NO.1

main29343-22011i2ZRFAE..ZRE212¥210201909

29344RING, O VACUUM PUMP, NO.2

main29344-22011i2ZRFAE..ZRE212¥130201909

29345RING, O VACUUM PUMP, NO.3

main29345-22011i2ZRFAE..ZRE212¥130201909

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

9155180825

main91551-80825¥80

9167180845

main91671-80845¥100

11 parts on this diagram · 1 diagram in section
